How To Install XCM Eye Candy Shell Nintendo DSi
View Original
_____________________________________________________
Guide Provided By: XCM
Estimated Time: 30-1 hour
Experience Level: Intermediate
Items Needed: Fine tipped Phillips screwdriver, pointed object (pick, small knife etc.) pliers (optional).
_____________________________________________________

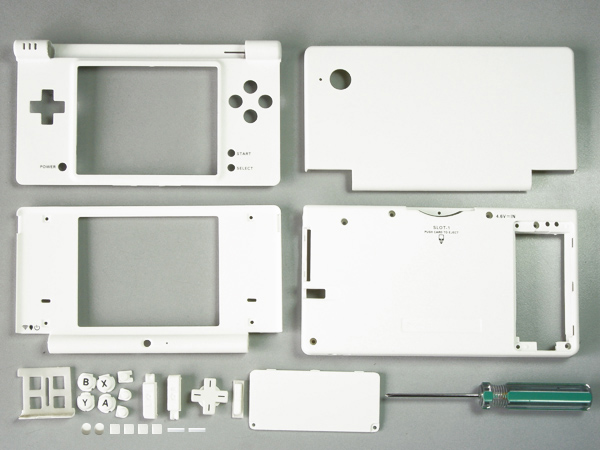

1) Eye-candy shell parts.
View Original

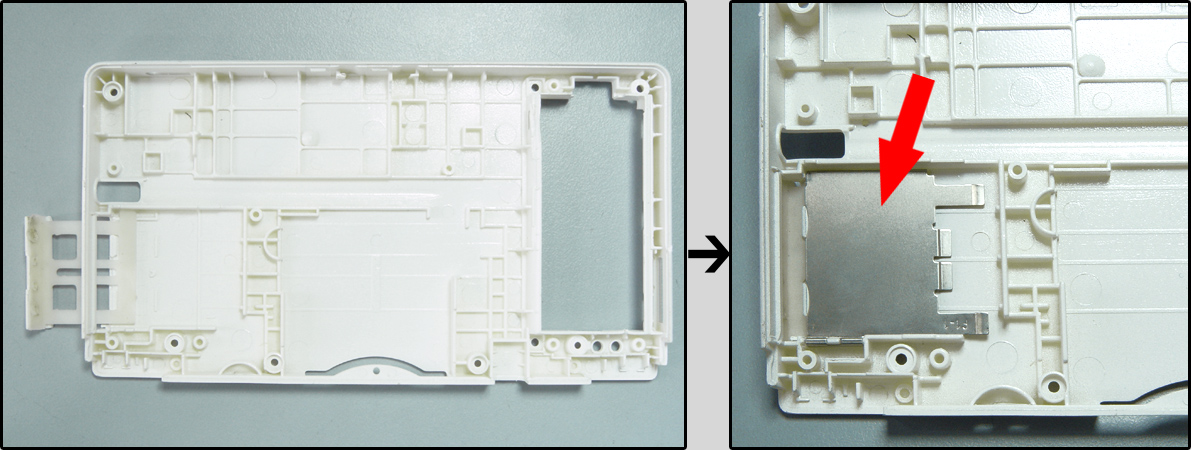

2) Put in the SD card shell and then place the metal plate to the arrow indicated position.
View Original

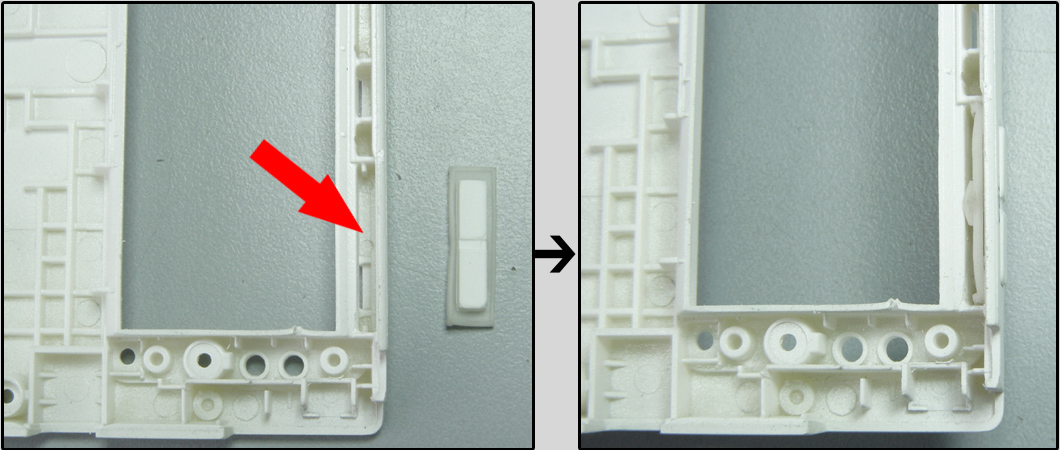

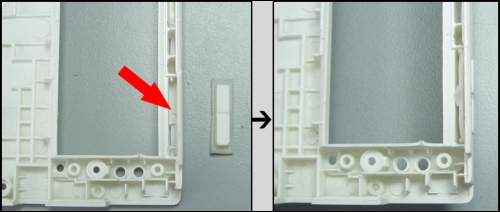

3) Put the volume switch to the arrow indicated position.
View Original

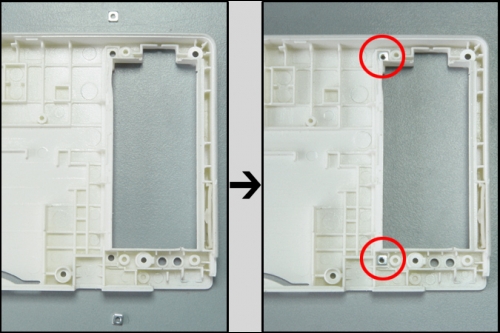

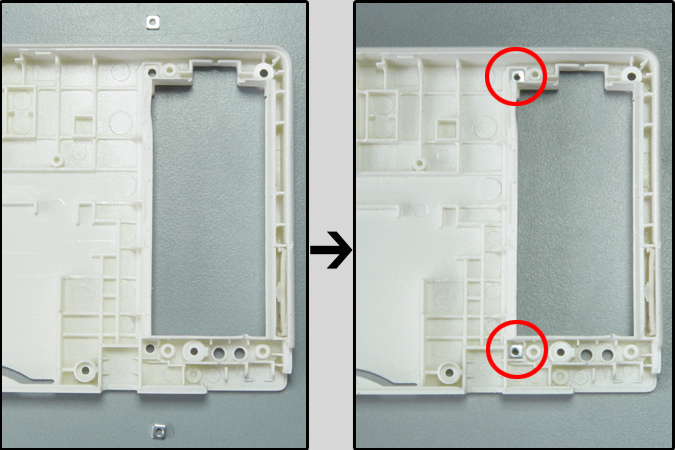

4) Place the female screw nuts to the circle indicated position.
View Original

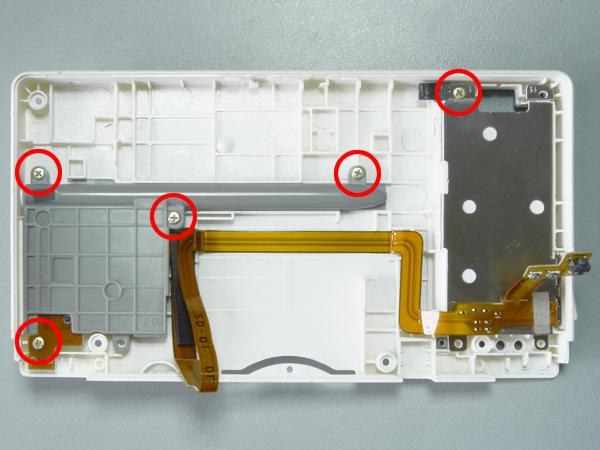

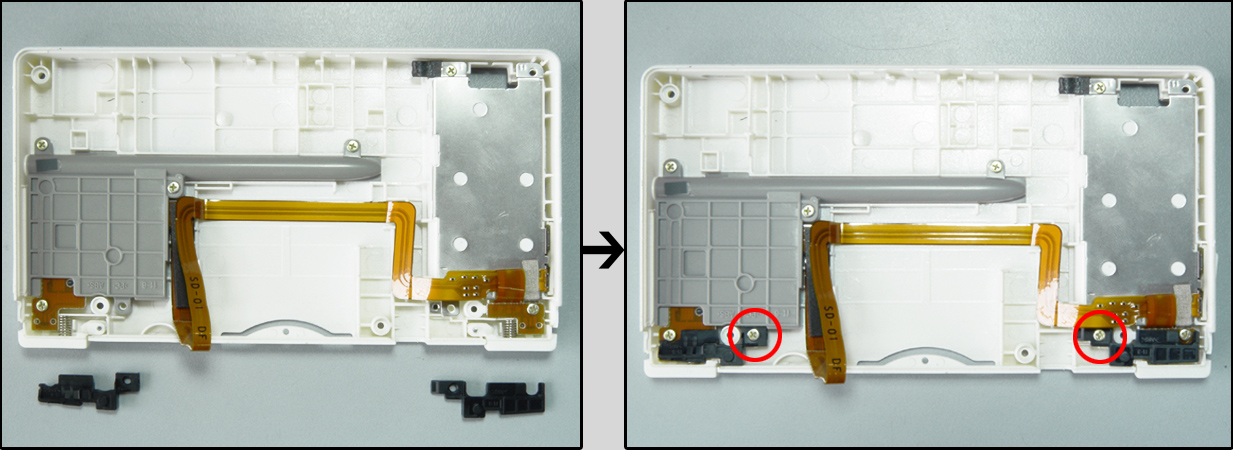

5) Place the parts to the lower part of bottom shell then fasten them with screws.
View Original

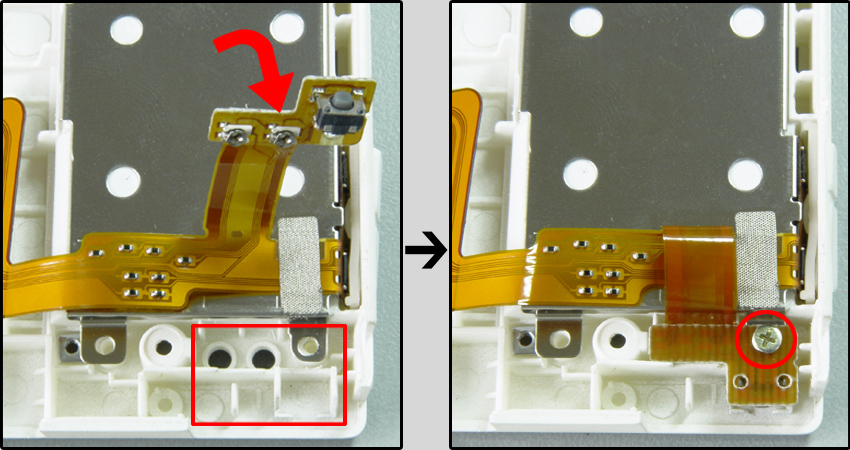

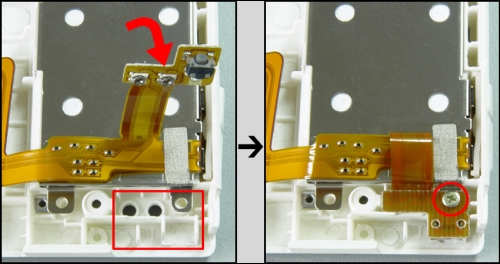

6) Place the R button switch board to the red square position then fasten it with screw.
View Original
7) Place the spring to the arrow indicated position, put on the R button and insert that small iron rod to fix the part. (do the same job for the L button).
View Original
8) As shown on the picture, put on the R and L plastic brace and fasten them with screws.
View Original
9) Roll up the flat wire and insert it into the upper led panel cover, and put the ring to the arrow position.
View Original

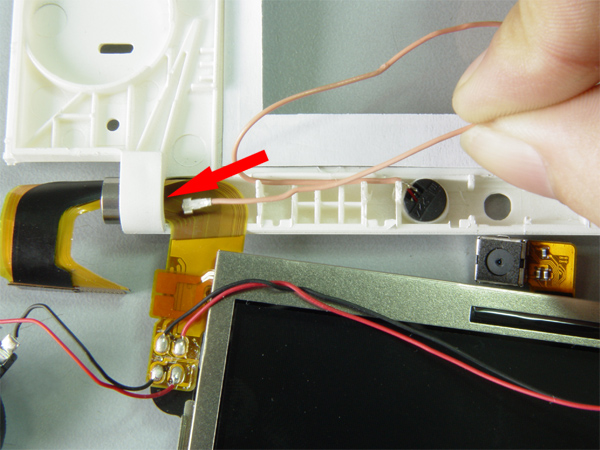

10) Place the microphone to its position and insert the microphone wire through the hole and the ring.
View Original

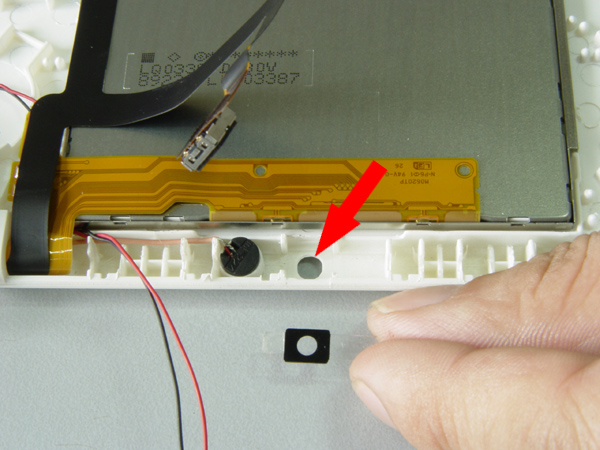

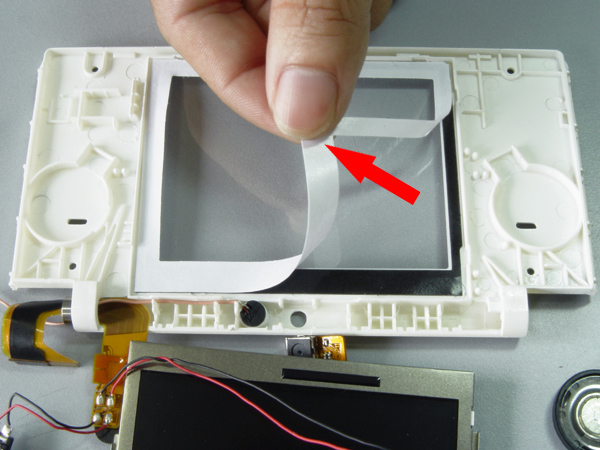

11) Remove the sticker sheet.
View Original
12) Put on the LED to the upper shell then place the camera's protective plate to the arrow position.
View Original

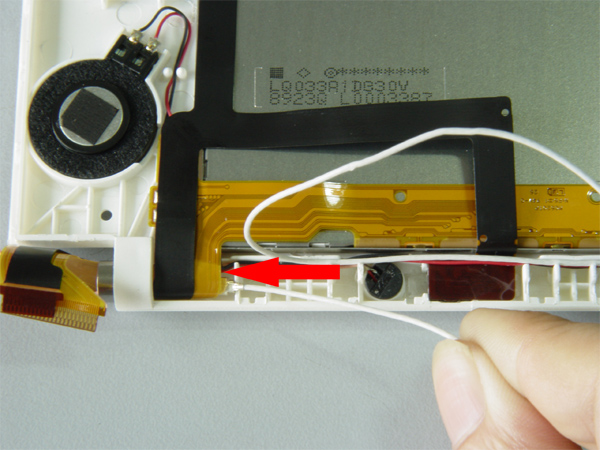

13) Slip the white antenna wire through the cavity.
View Original

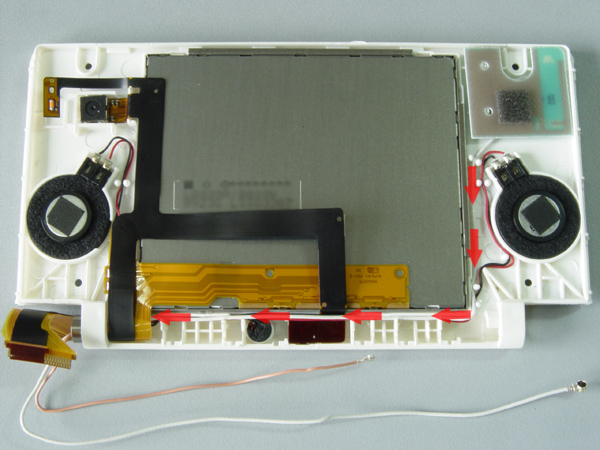

14) According to the direction of the arrow to place the microphone wire and antenna wire.
View Original

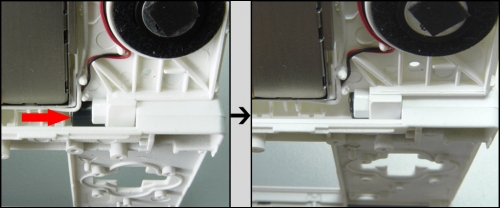

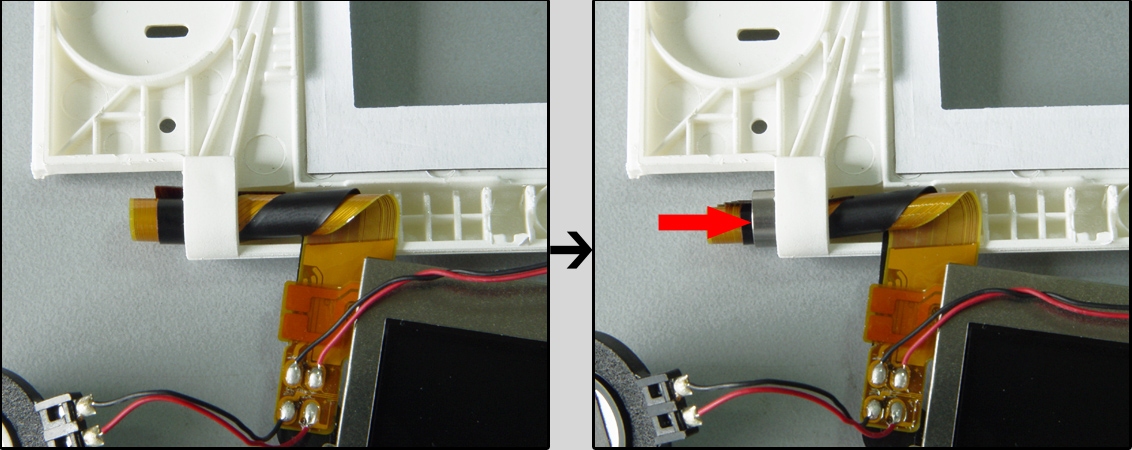

15) Put the spindle to the arrow position.
View Original

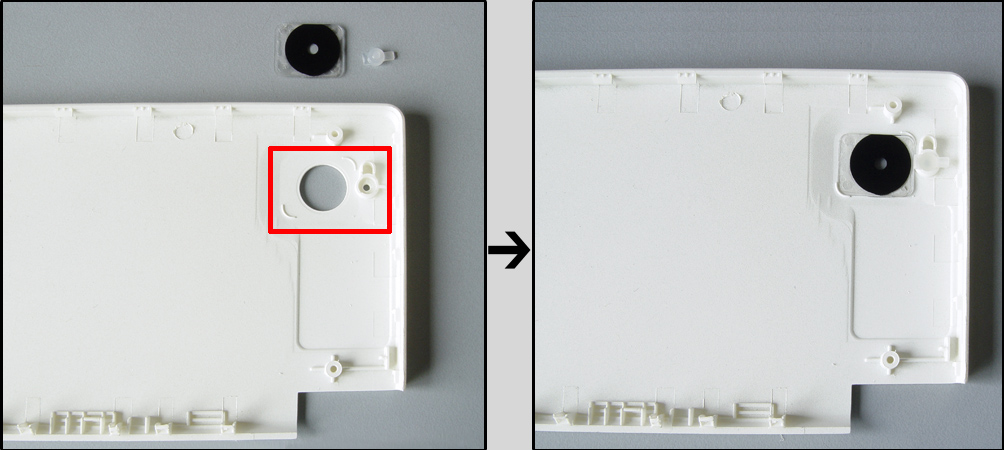

16) As shown on the picture, put the camera's protective lens and the light tube to the bottom part of upper shell.
View Original

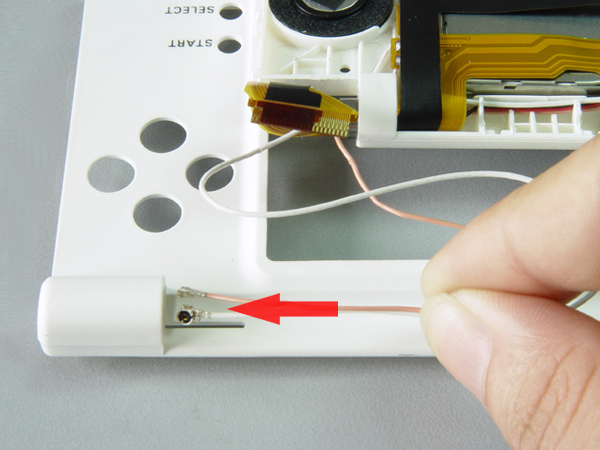

17) Insert the antenna wire and microphone wire to pass through the console's lower part LED panel cover.
View Original
18) Push out the hinge.
View Original

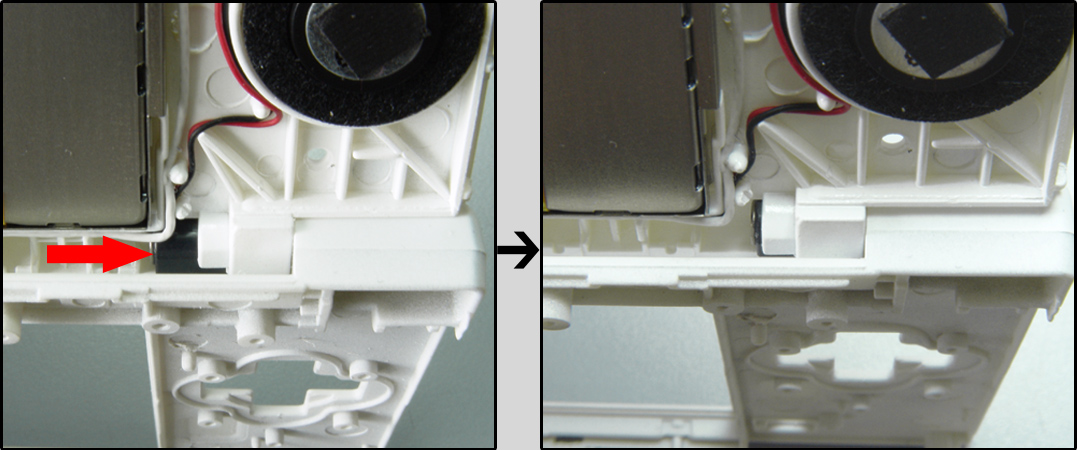

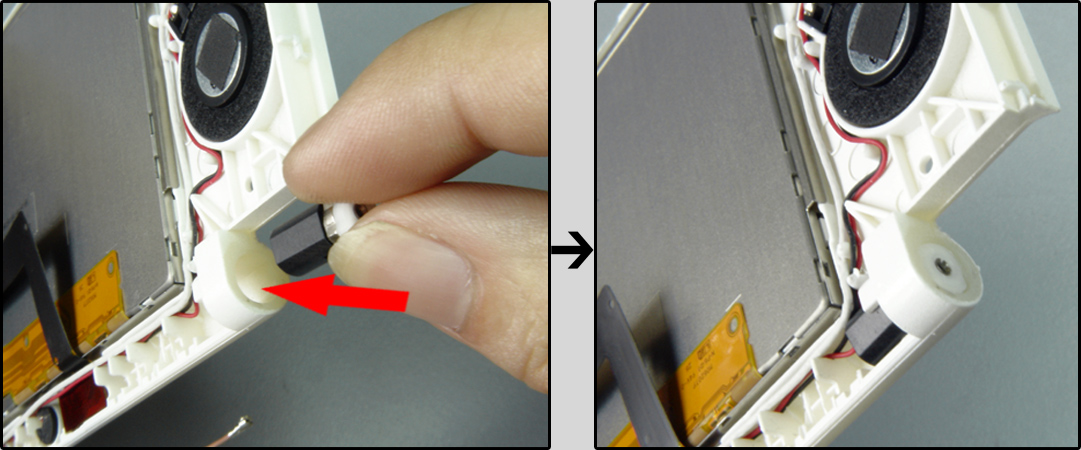

19)According to the arrow direction, insert the hinge.
View Original

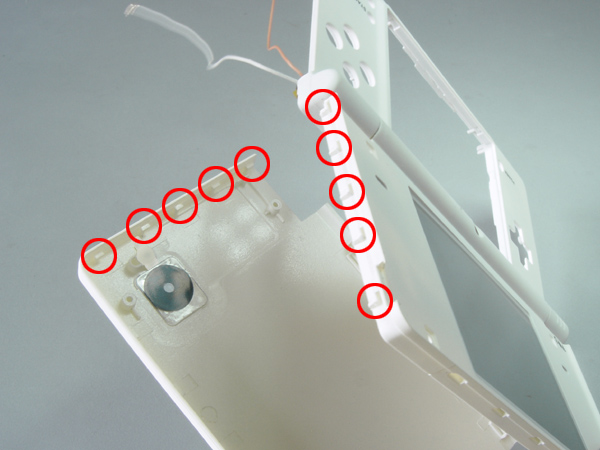

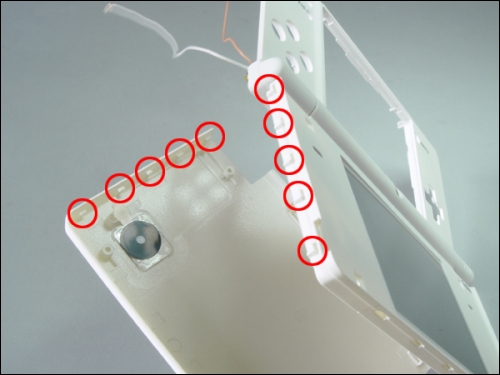

20)Buckle the upper LED panel cover and its bottom shell.
View Original

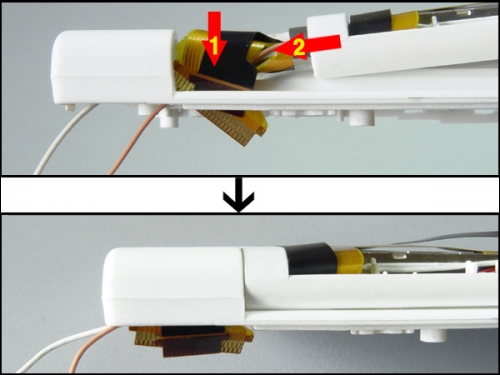

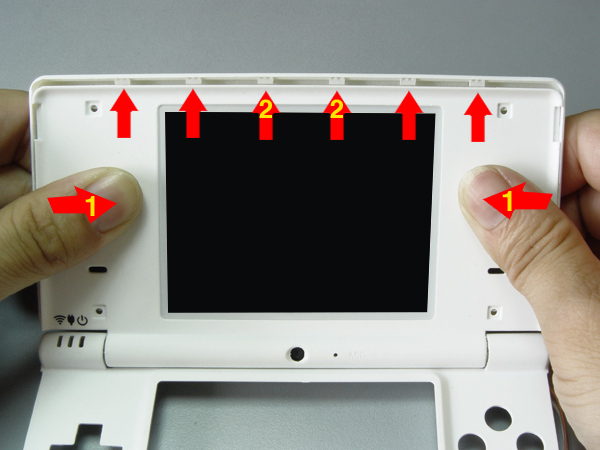

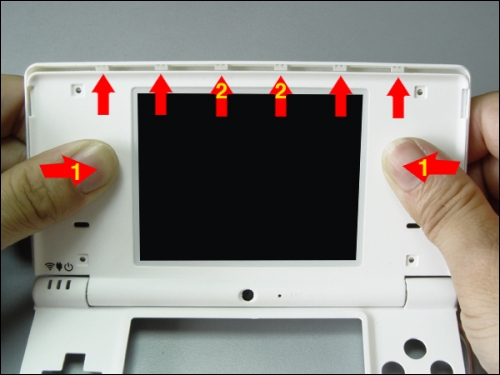

21) Follow the arrow direction to put on the upper part of LED panel cover.
View Original

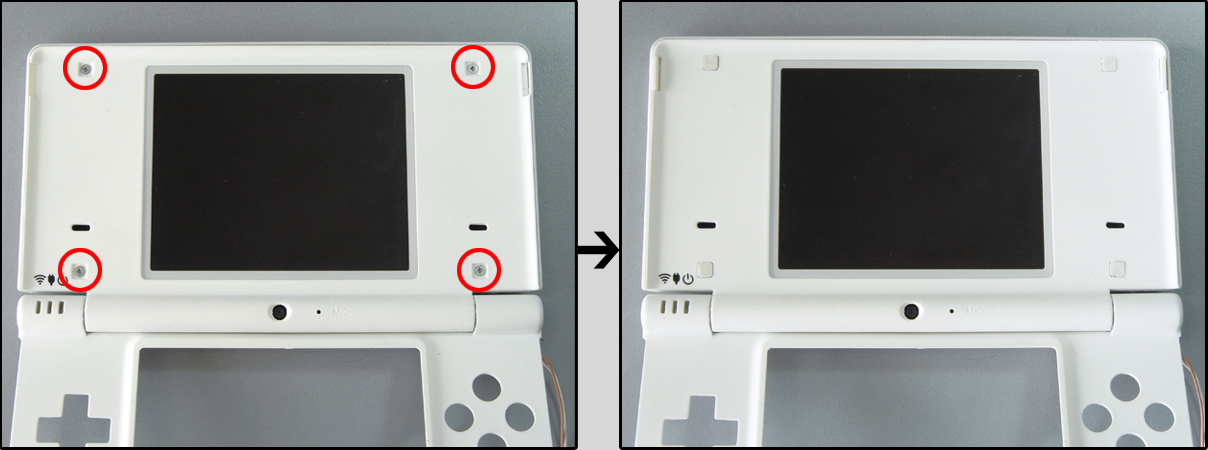

22) Screw these 4 screws and put on the rubber screw caps.
View Original

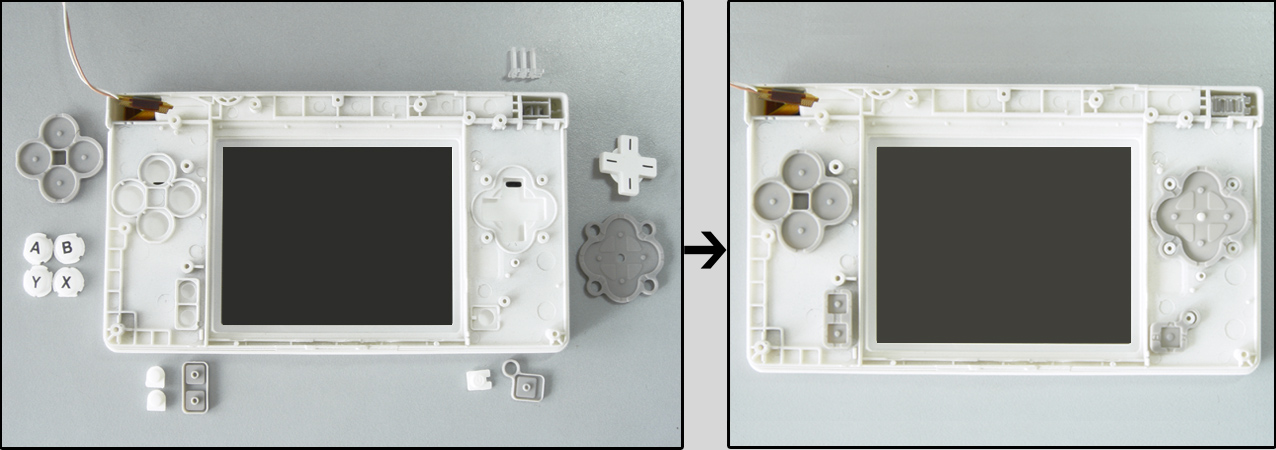

23) Put on those parts to the lower part of LED panel cover.
View Original

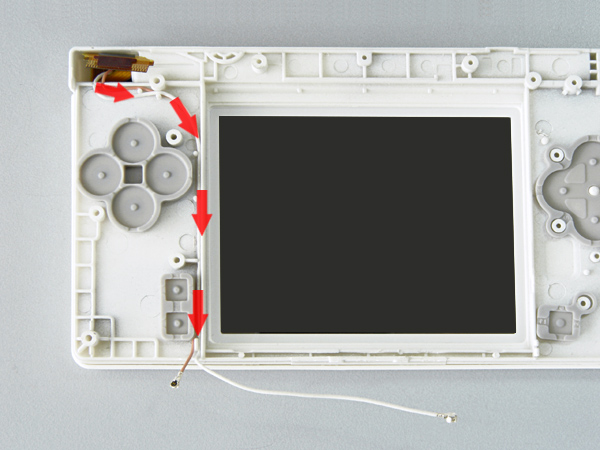

24) Follow the arrow direction to place the antenna wire and microphone wire.
View Original

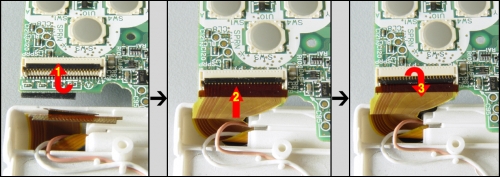

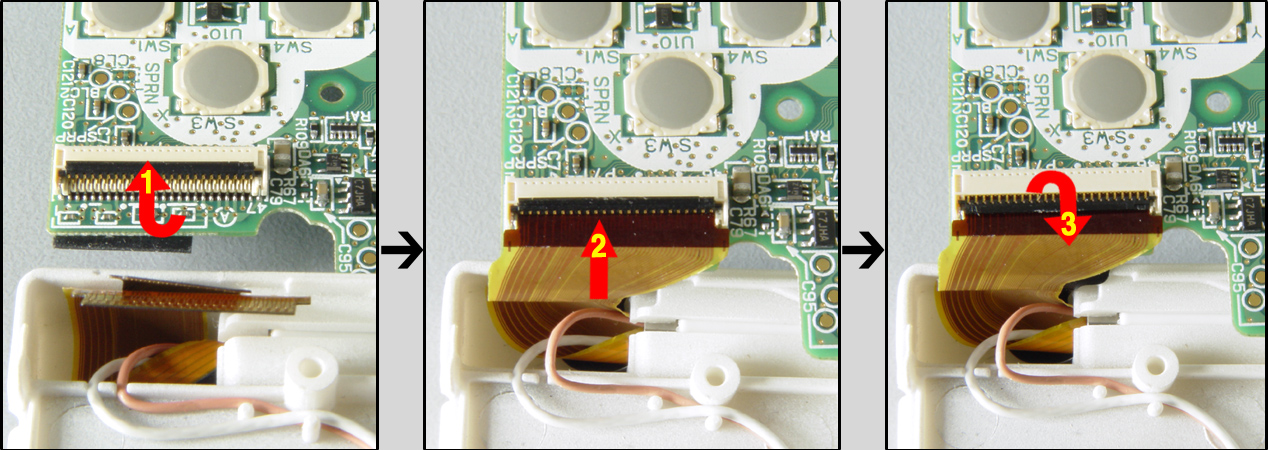

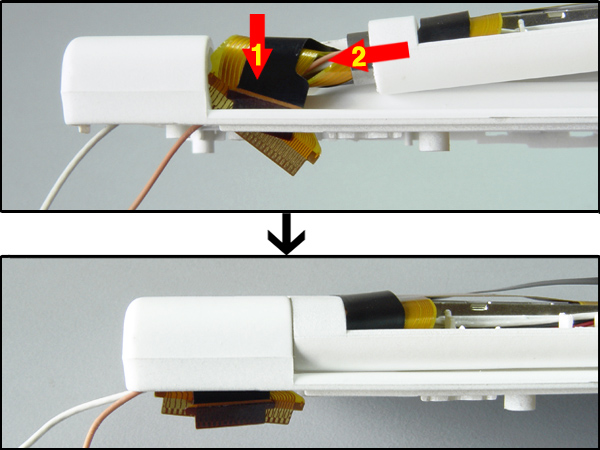

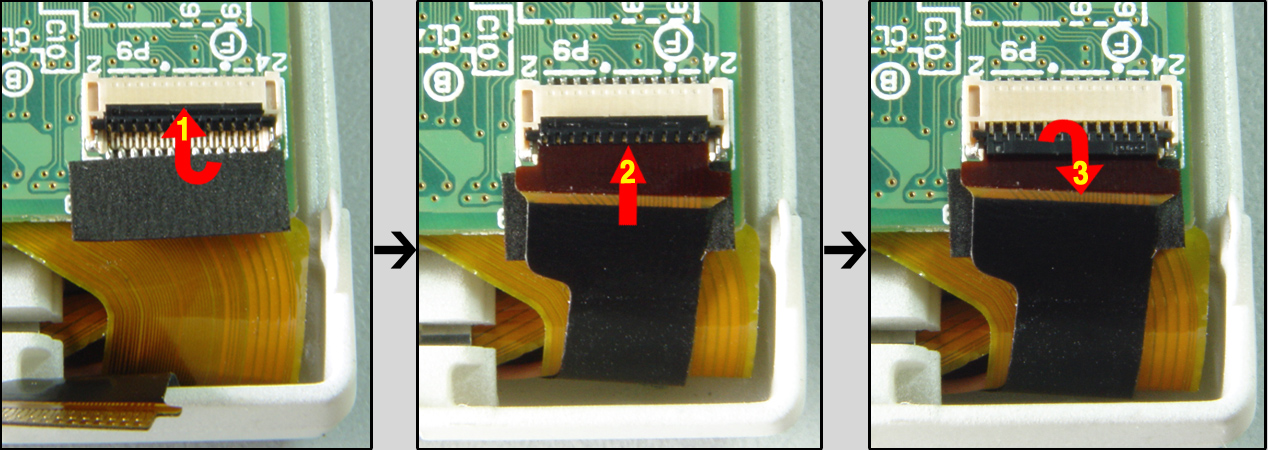

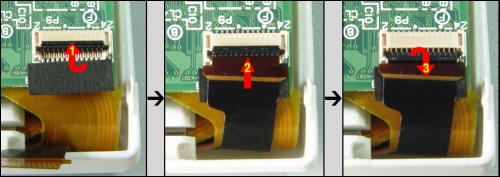

25) Follow the arrow direction (1) to flip black bar and insert the obverse side of flat wire (as shown on the arrow 2) ,after that put down the black bar to hold the flat wire.
View Original
26) Follow the arrow direction (1) to flip black bar and insert the reverse side of flat wire (as shown on the arrow 2) ,after that put down the black bar to hold the flat wire.
View Original

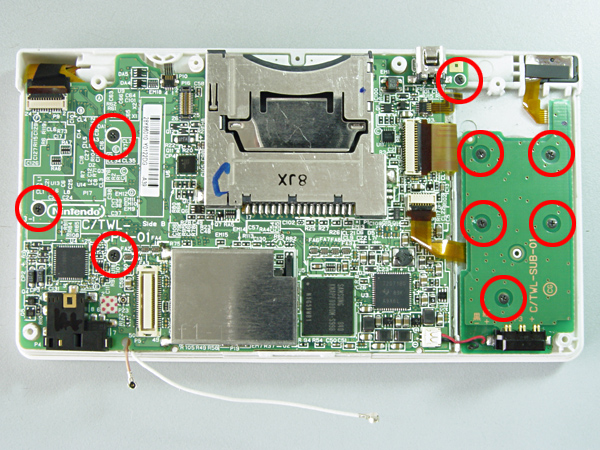

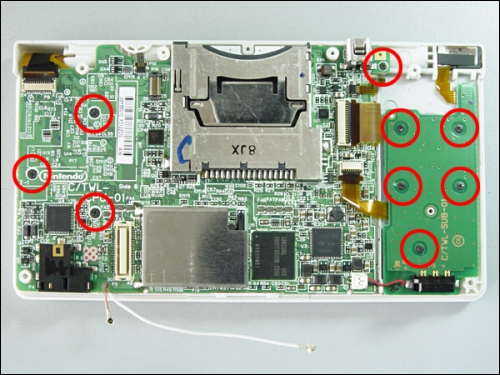

27) Put on the PCB then re-screw those 9 screws.
View Original

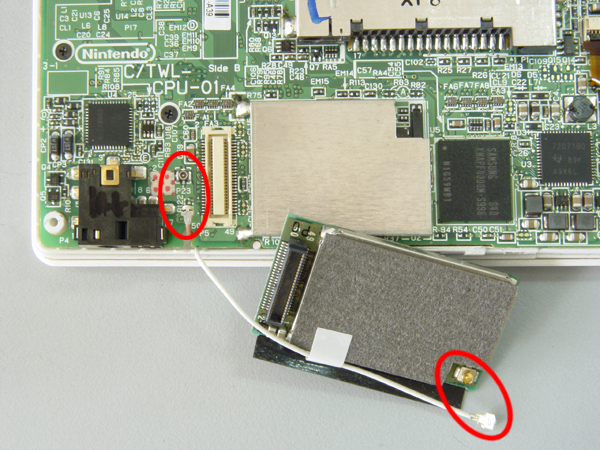

28) Plug the microphone wire and antenna wire to the indicated socket.
View Original

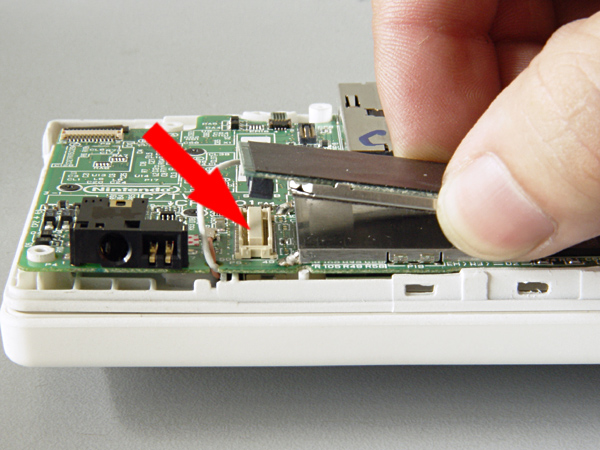

29) As shown on the picture, plug the wifi card back to its seat.
View Original

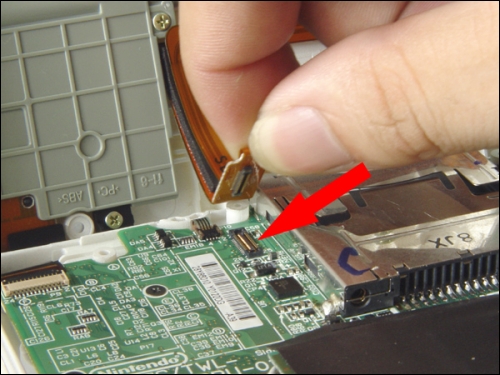

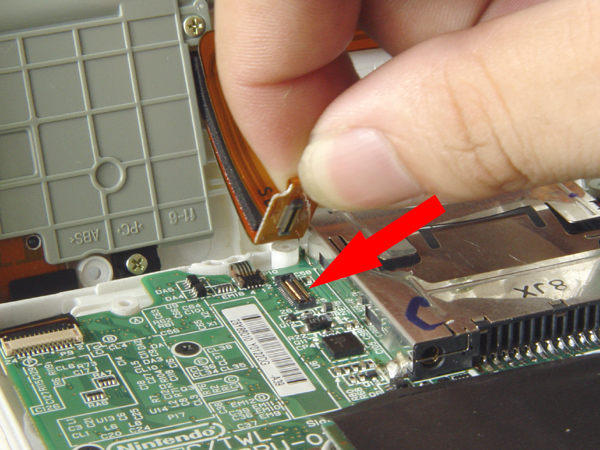

30) Plug this flat cable back to the socket.
View Original

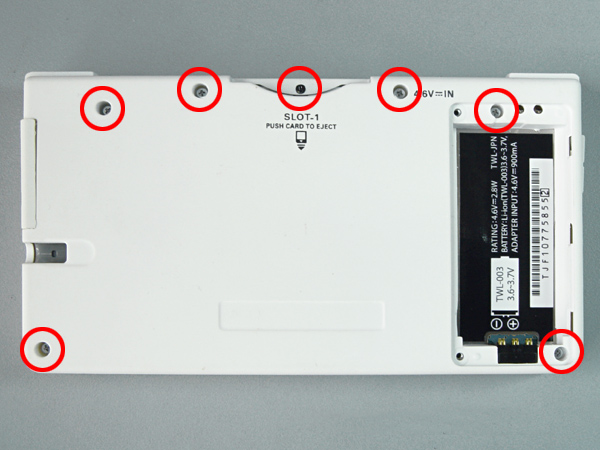

31) Put on the lower part of bottom shell and re-screw those screws.
View Original

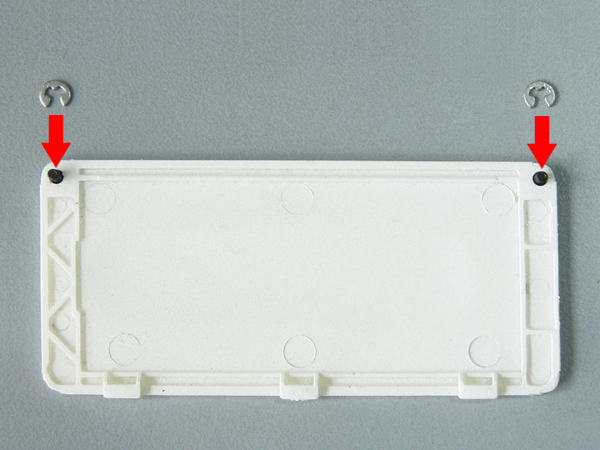

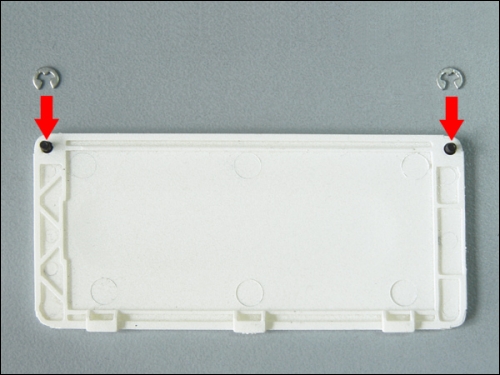

32) As shown on the picture, insert these 2 metal plate to the screws.
View Original

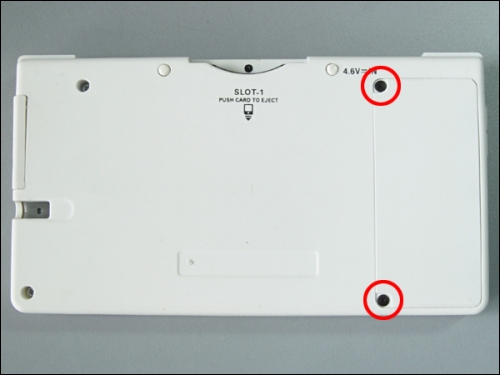

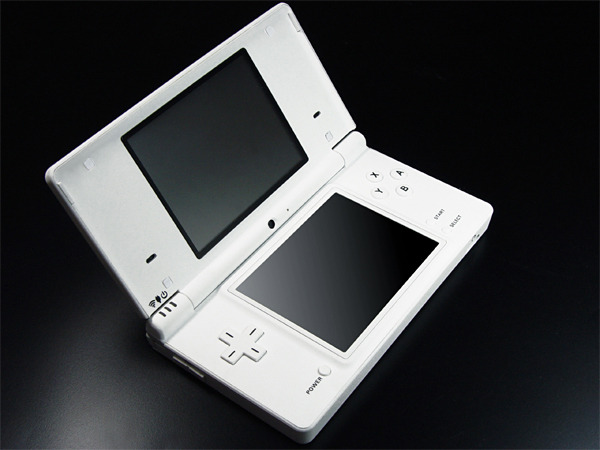

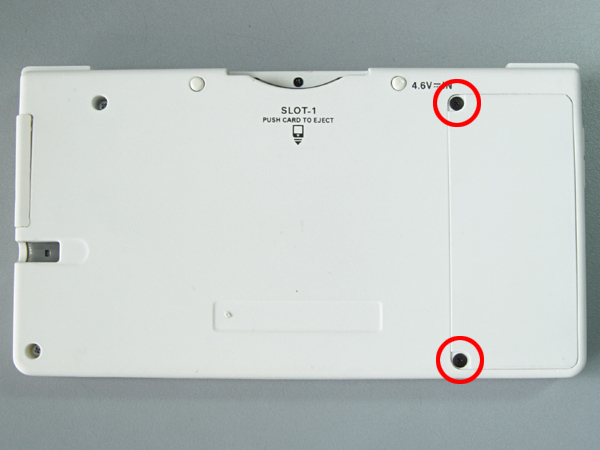

33) Put on the rubber tabs, battery and battery cover back on. Now just screw down the battery cover and your finished!
View Original
View Original
Troubleshooting Guide
Problem: I am having problems routing my top screen ribbon through the bottom case.
Solution: There is a small slit in the bottom case that allows you the push the ribbon cable through. Just take your time and you will get it. Just be sure not to pull to hard as you may rip the ribbon cable.
Problem: My top screen ribbon cable ripped, what can I do?
Solution: You will need to get a new top screen.
Problem: I am not getting any picture on the screens after installing the new case.
Solution: Make sure you have installed everything correctly. Make sure your network board is installed correctly.
Problem: My DS turns on and then turns off after a couple seconds.
Solution: Your top screen ribbon cable is most likely not plugged in snugly enough to the motherboard. If that does not fix the problem change top screens. If that still does not work then you will most likely need a new DS motherboard.
Problem: My DS top screen turns on but only shows a white screen.
Solution: Again check your top screen ribbon cable. If that is not the problem, you may have a bad top screen. If that is not the problem it is most likely an issue with your DS motherboard.
Problem: My DS bottom screen turns on but only shows a white screen.
Solution: Make sure all of the ribbon cables are nice and snug to the motherboard.
Problem: My DS touch screen does not work anymore.
Solution: This is a very common problem. All you need to do is make sure the tiny ribbon cable that plugs in by the network board is connected 100%. |
|
|
