How To Install XCM Hot Rock Case Wii

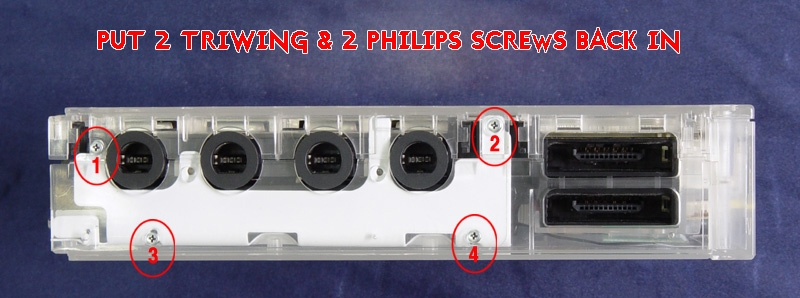

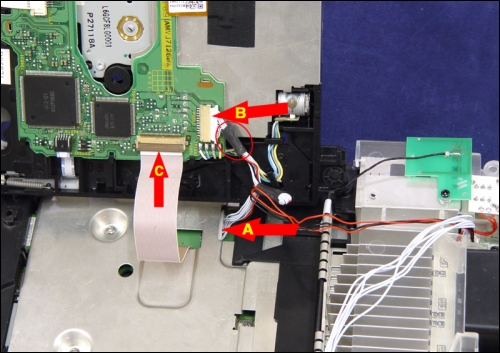

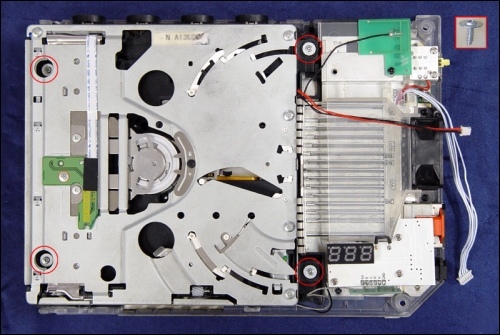

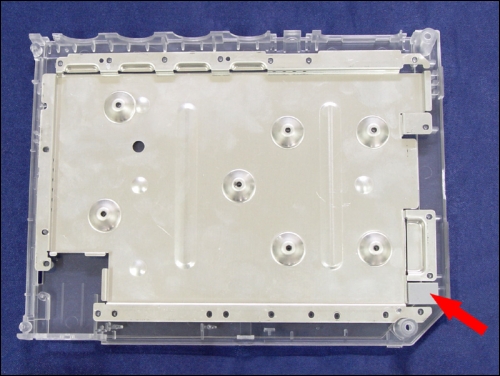

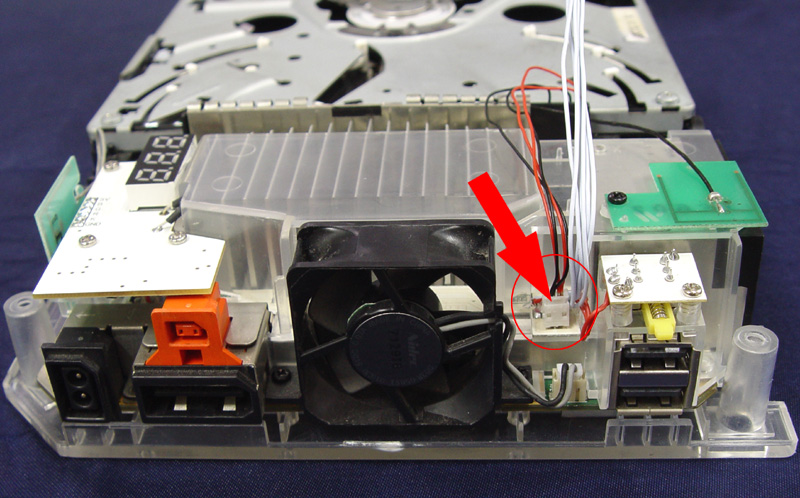

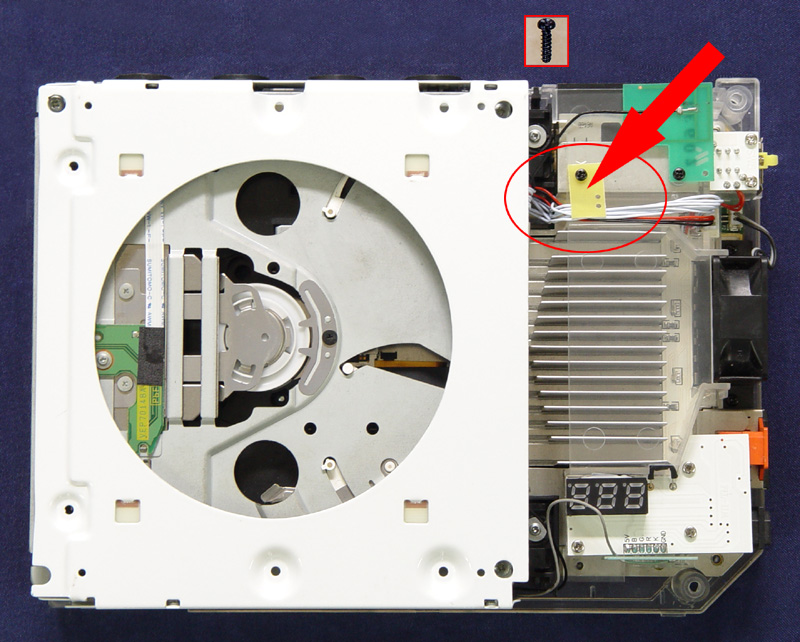

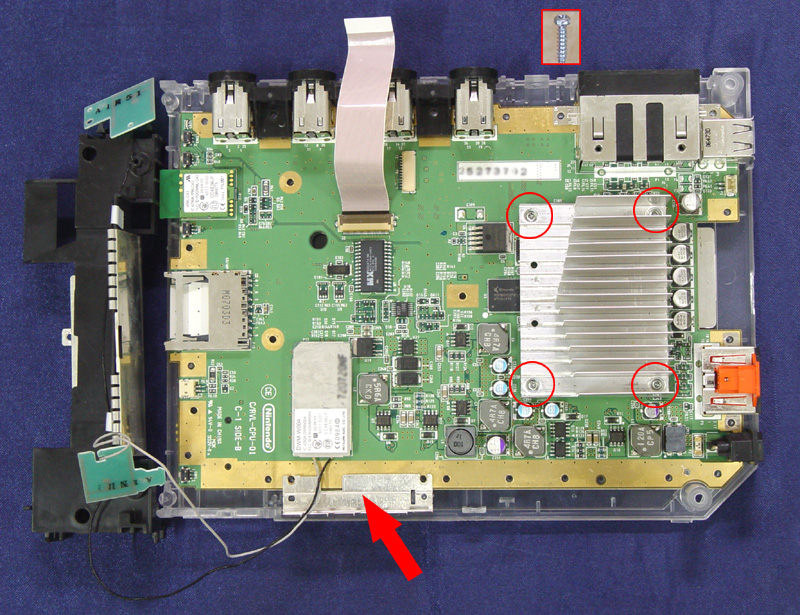

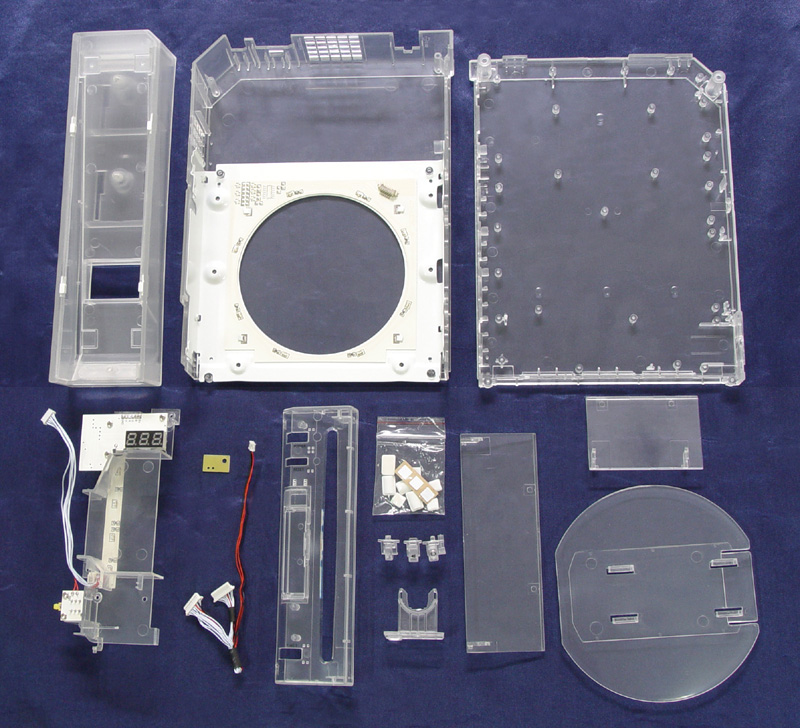

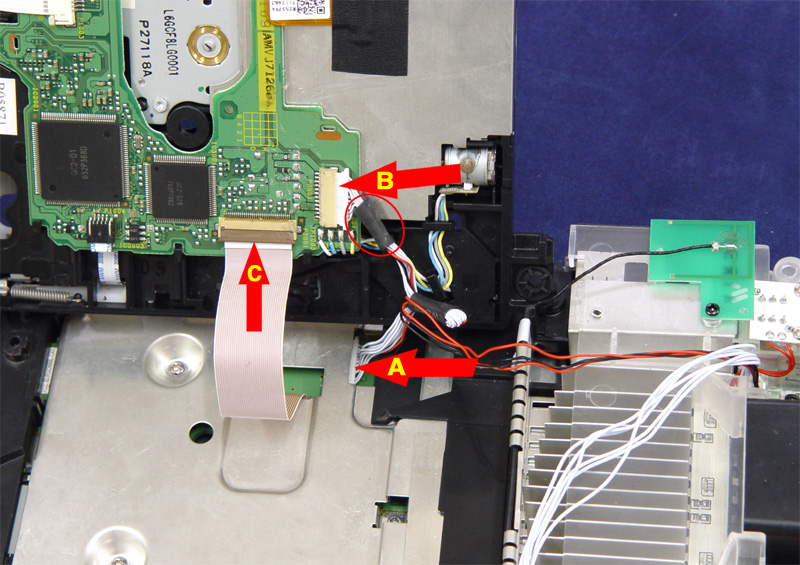

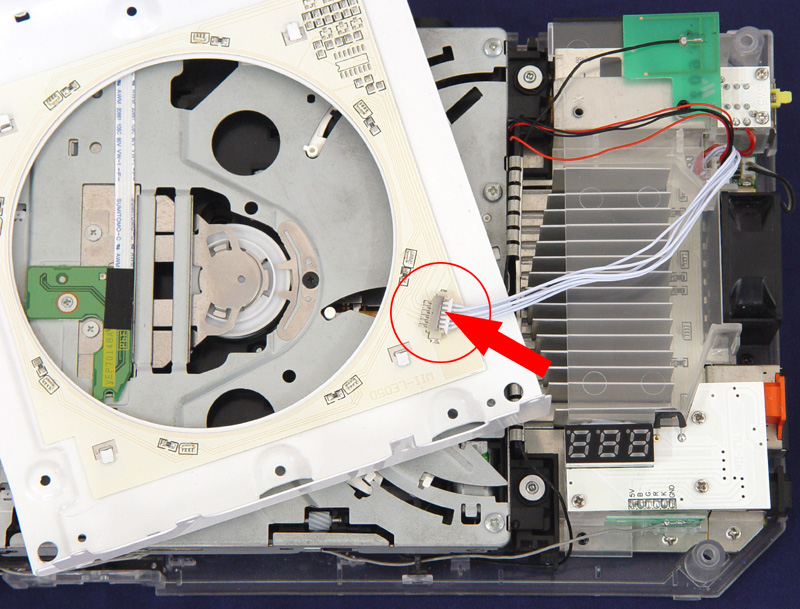

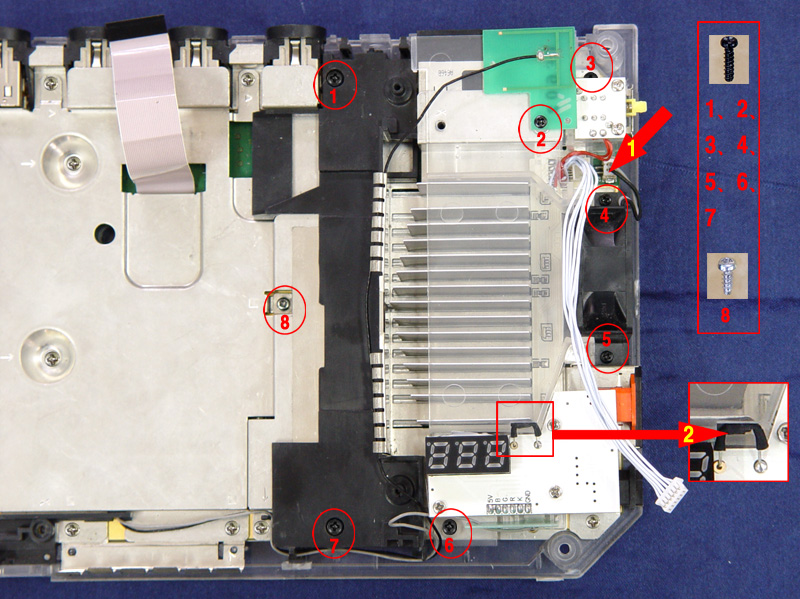

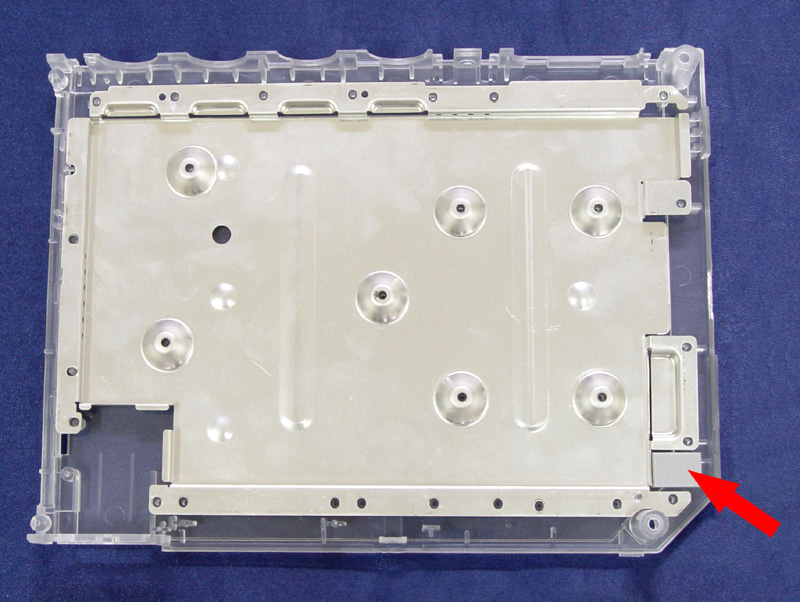

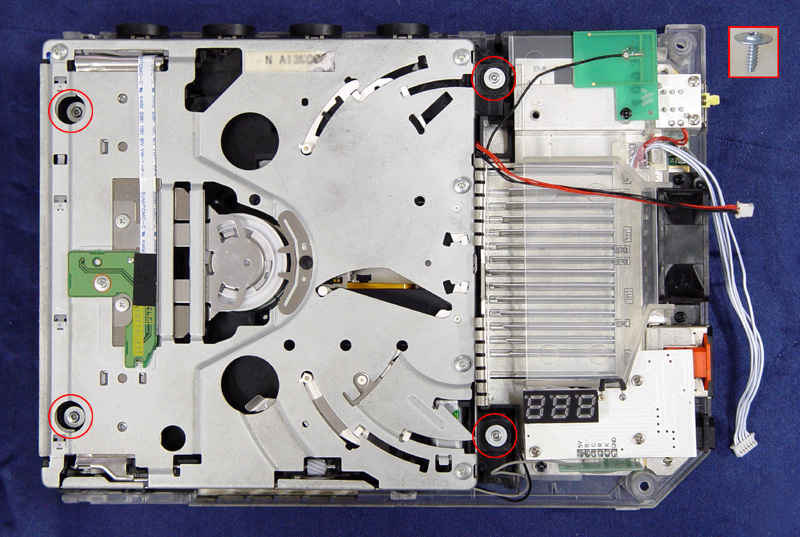

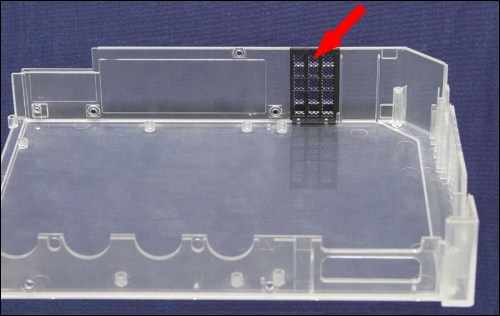

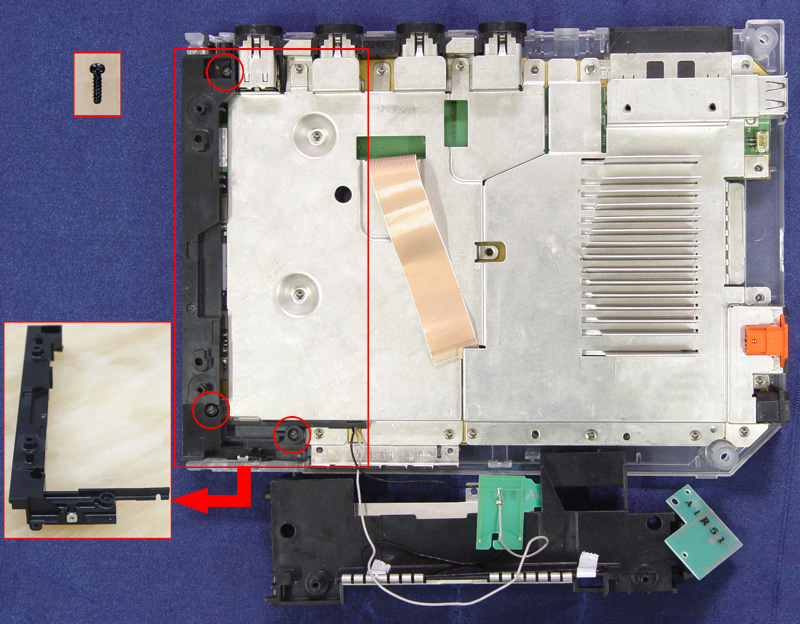

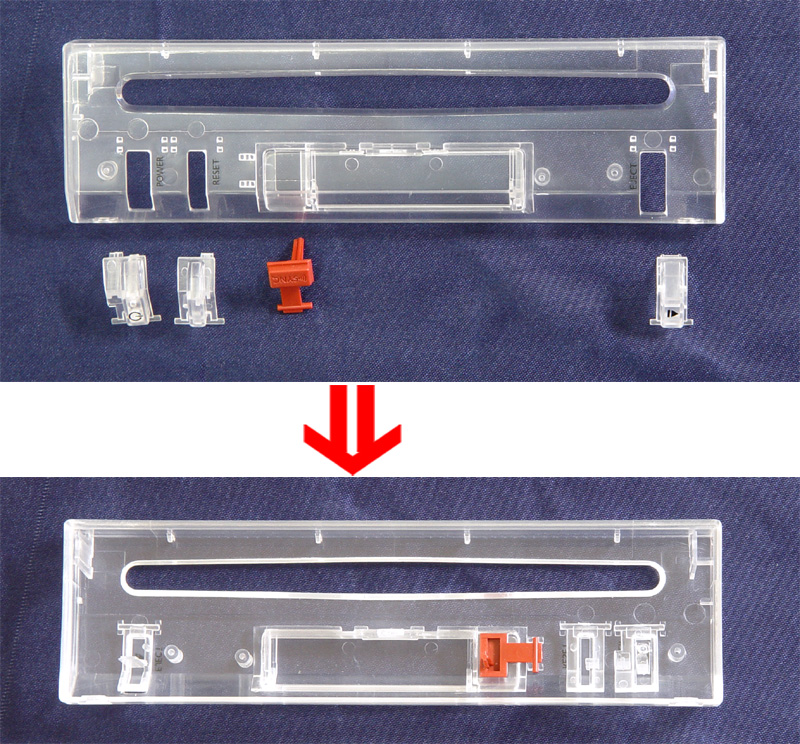

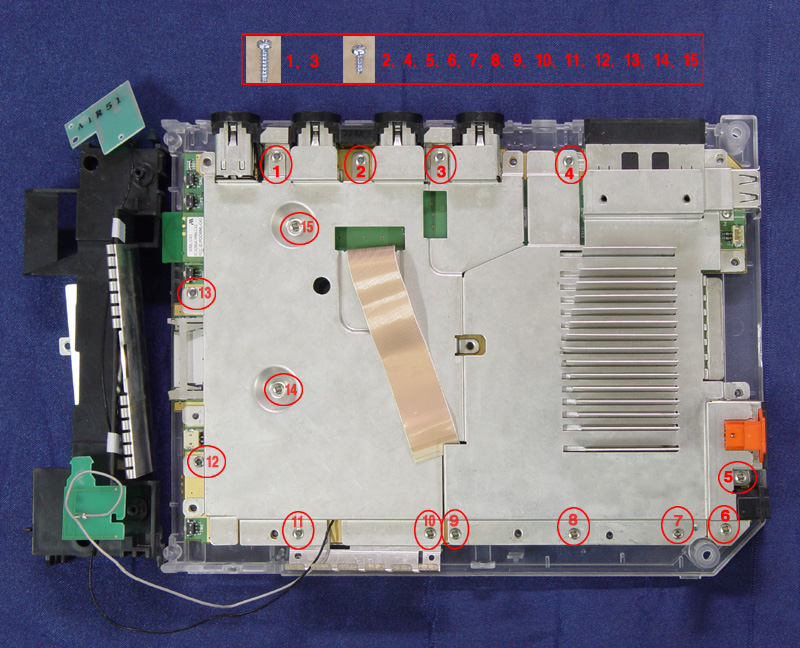

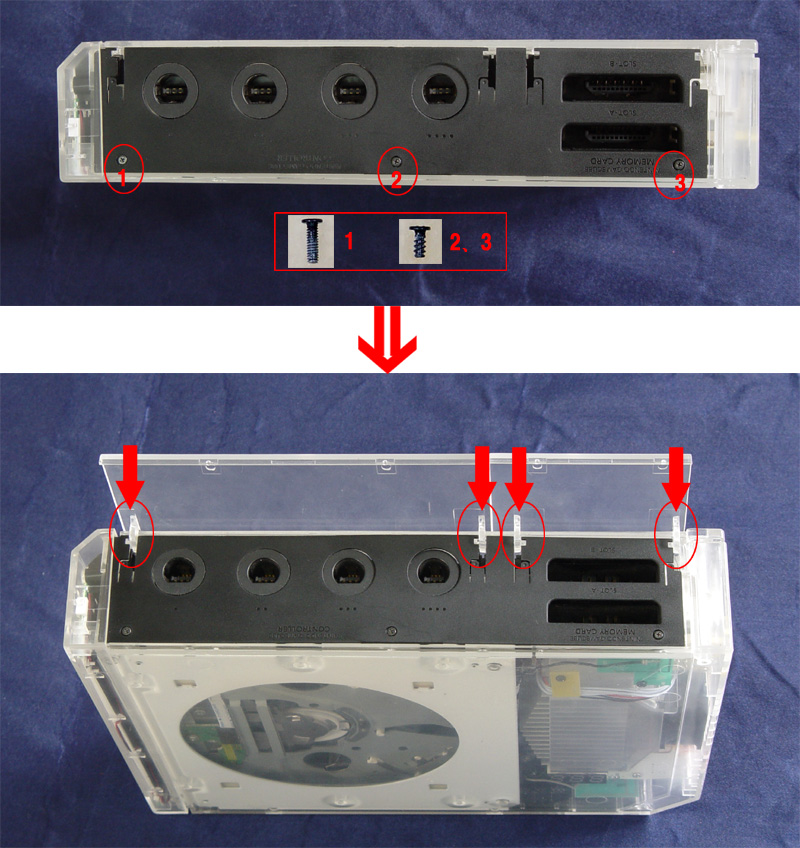

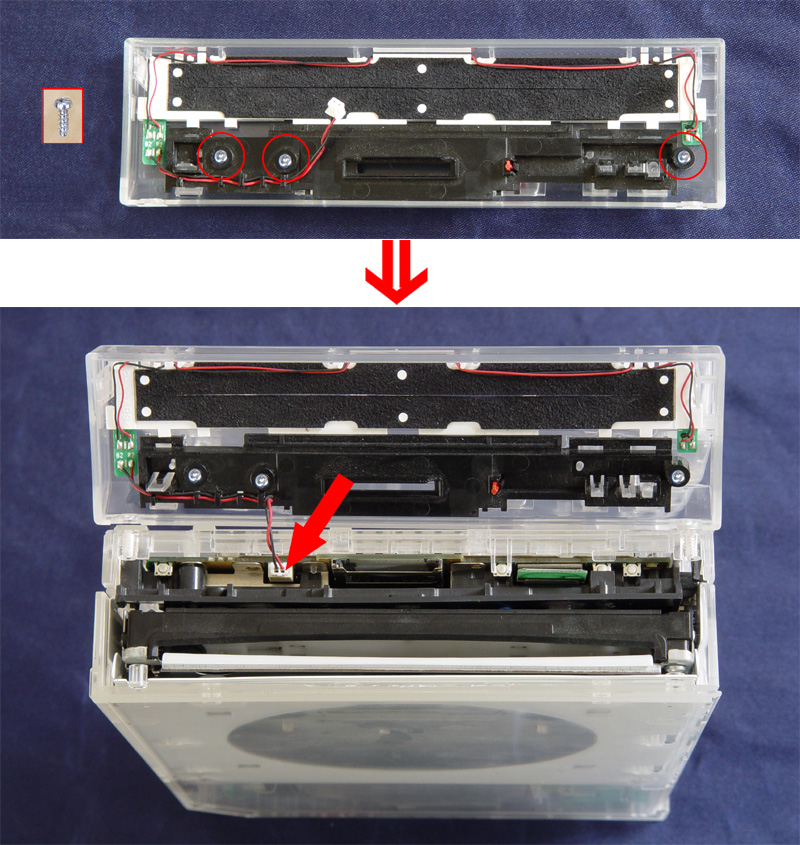

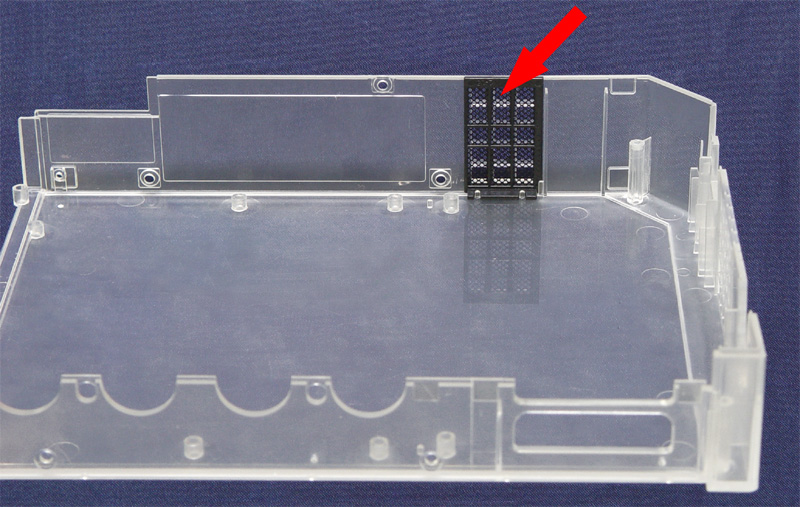

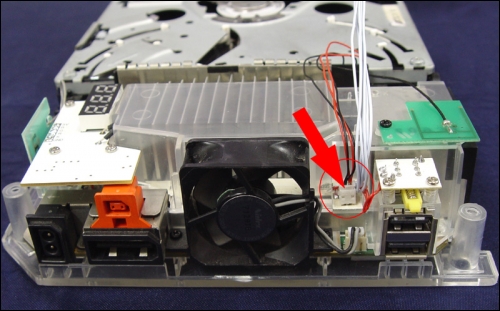

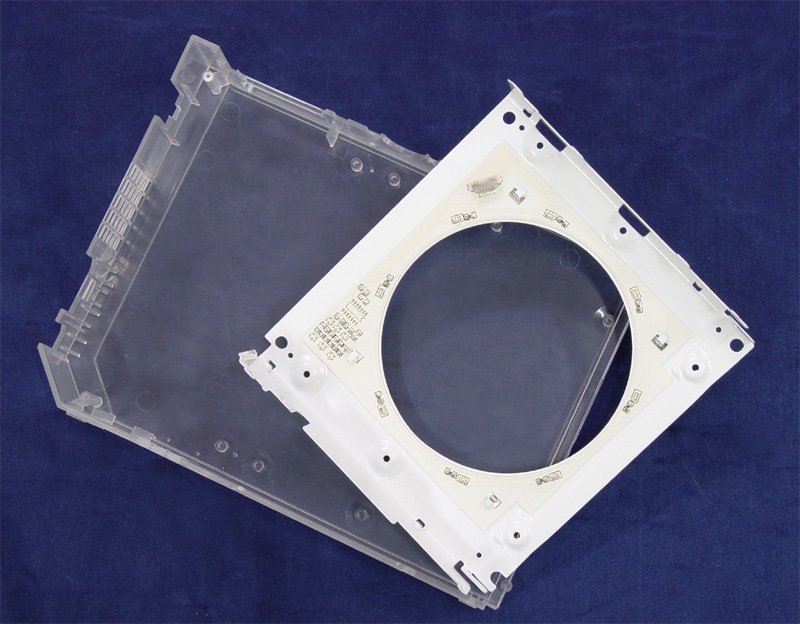

View Original _____________________________________________________ Guide Provided By: XCM Estimated Time: 30min - 1hour Experience Level: Intermediate Items Needed: Philips Screwdriver, Triwing Screwdriver, Small knife (optional). _____________________________________________________ CLICK HERE FOR INSTRUCTIONS ON HOW TO DISSEMBLE YOUR WII 1) Displayed are all the parts that come with the ii-case HOT ROCK CASE. View Original 2) Install the Metal case plate on the II-Case plastic side case (left side). As displayed by the “red arrow” install the rubber/plastic piece on the indicated location. View Original 3) Install the main mother board, as indicated by the “red arrow” install the metal plate. Finally, install the heat sink, and put on the 4 screws. View Original 4) Install the metal case and put on the 15 screws as indicated. View Original 5) Put the 4 screws on the black coloured plastic bracket. Then put the entire assembly on the metal plate. Then install the 3 screws as indicated. View Original 6) Install the crystal air duct and fan together, then as indicated by “red arrow 1”, plug the fan power cable to the power supply. Install all screws ( Attention: as indicated by “red arrow 2” the temperature sensor must be near the heat sink). View Original 7) As indicated by “red arrow A”, place the ii Case (Hot Rock Case)’s DVD data cable to the mother board. As indicated by the “red arrow B” attach the cable with the black protector to the DVD ROM. Finally as indicated by “red arrow C’ attach the data cable as shown. View Original 8) Install the DVD ROM’s 4 screws. View Original 9) As indicated by the arrow in the diagram, attach the DVD ROM power cable as shown. View Original 10) Detach the DVD ROM metal casing from the ii-case clear case. View Original] 11) As shown, connect the metal casing’s power supply. View Original 12) Install the DVD metal casing back on the DVD ROM, then as indicated by the arrow, install the cable as instructed. View Original 13) Install the dust protector as indicated by the “II Case” right side panel. View Original 14) Place the right side clear panel on the Wii then install the 4 screws. View Original 15) Install the different buttons on the “II Case” faceplate (inside). View Original 16) Install the different buttons on the faceplate, then install the 3 screws and as indicated install the wire. View Original 17) Install the plastic boards and 3 screws then place the dust covers on individually. View Original
