How To Completely Dissemble The Nintendo Wii

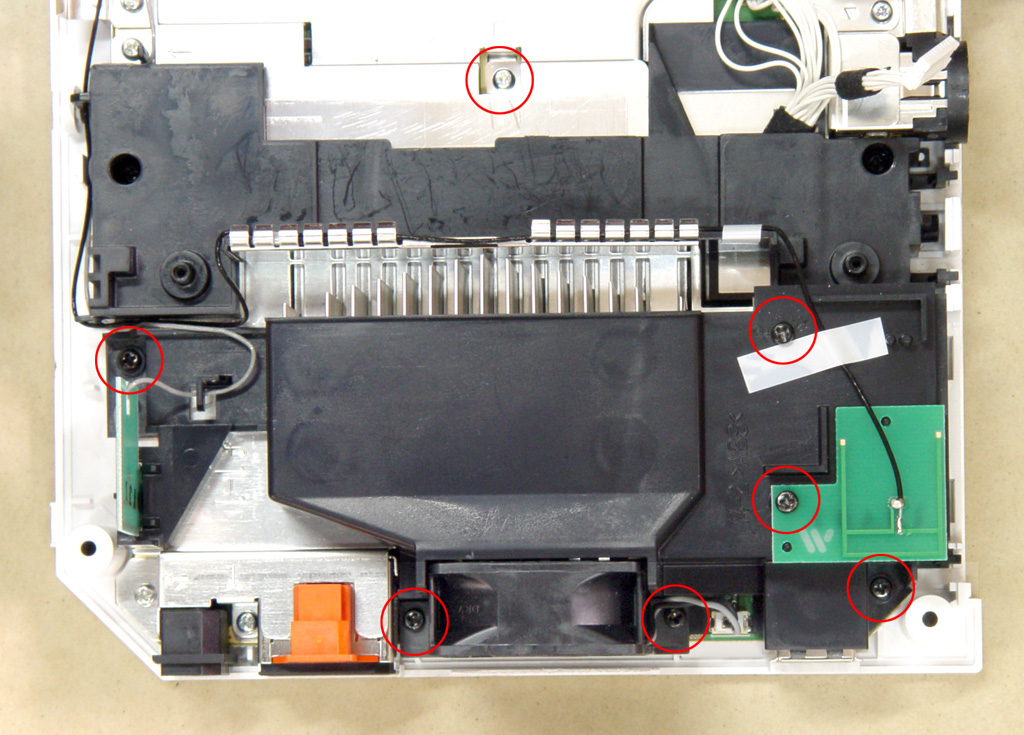

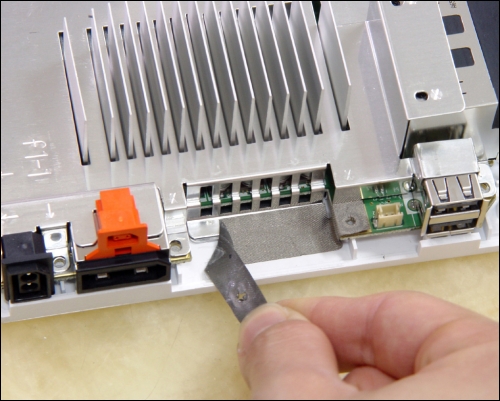

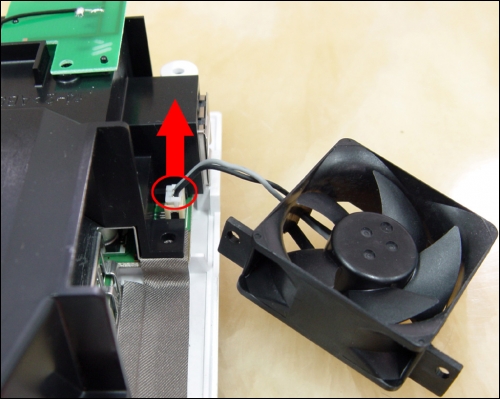

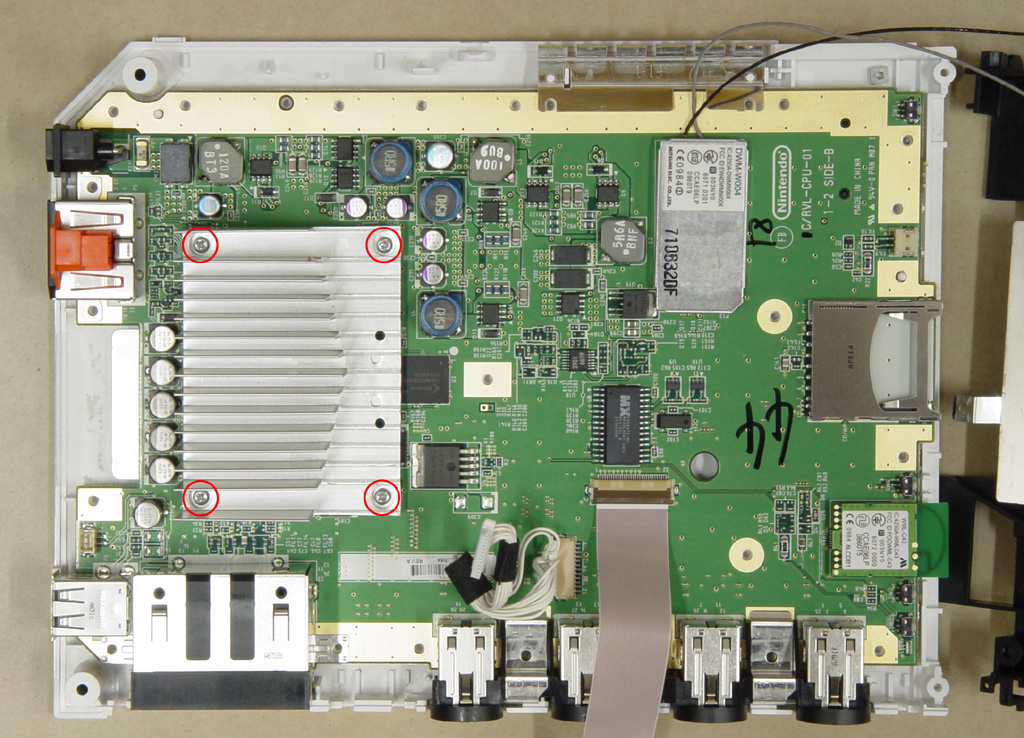

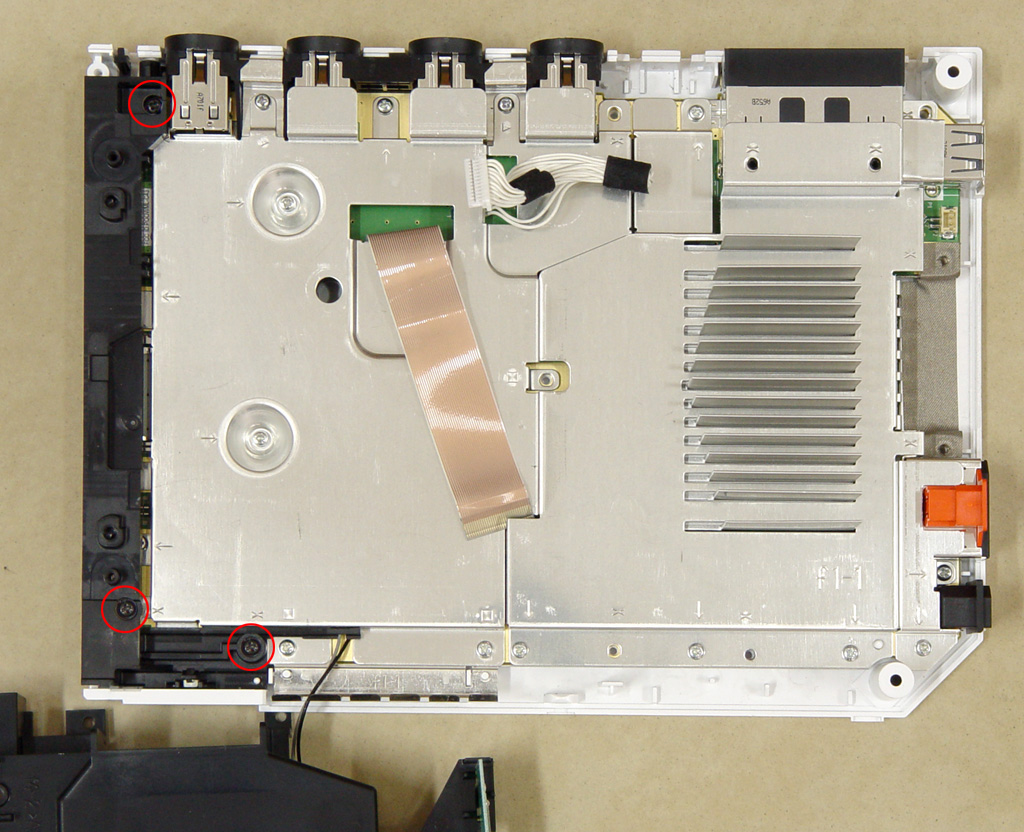

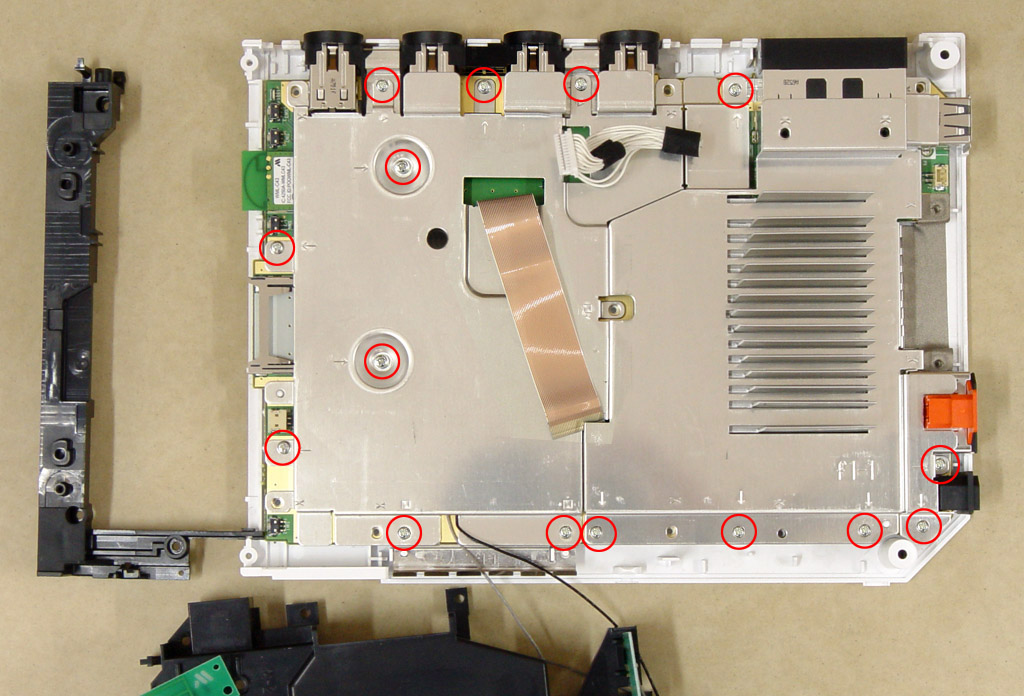

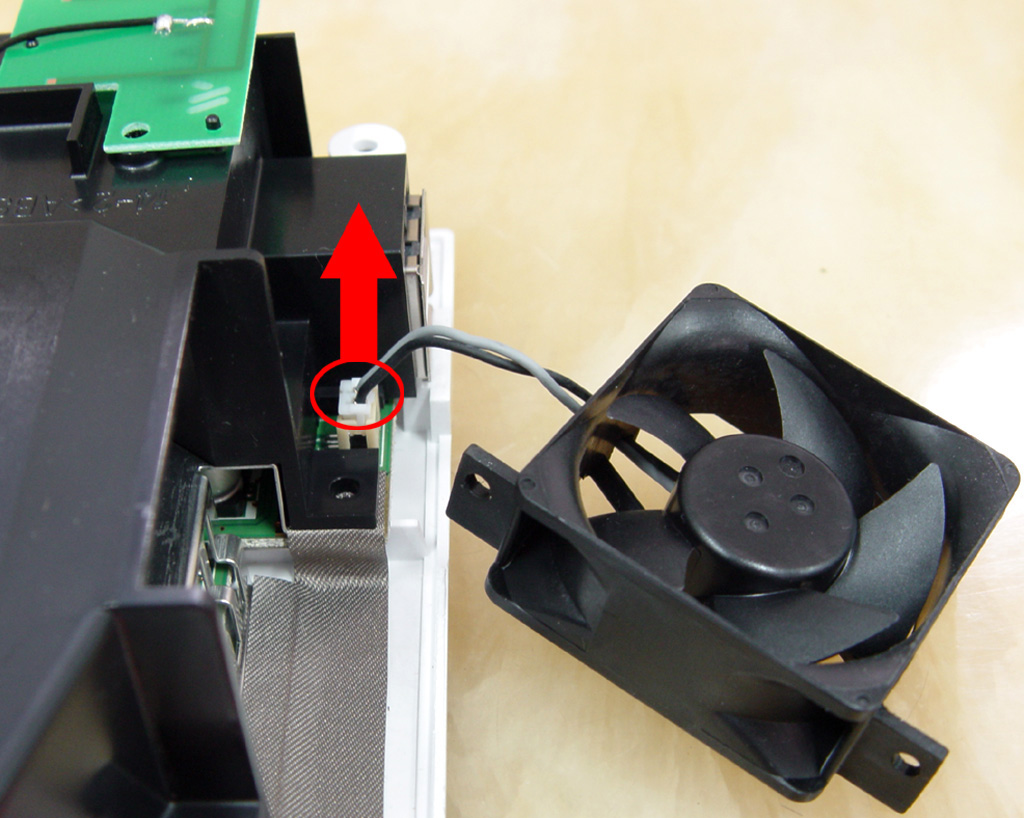

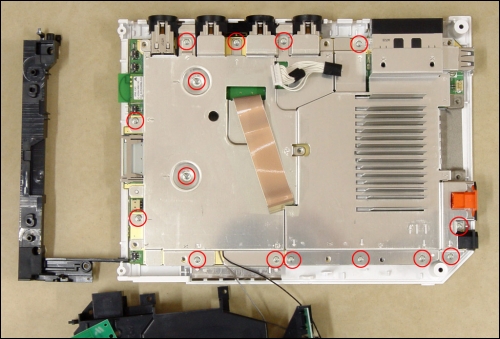

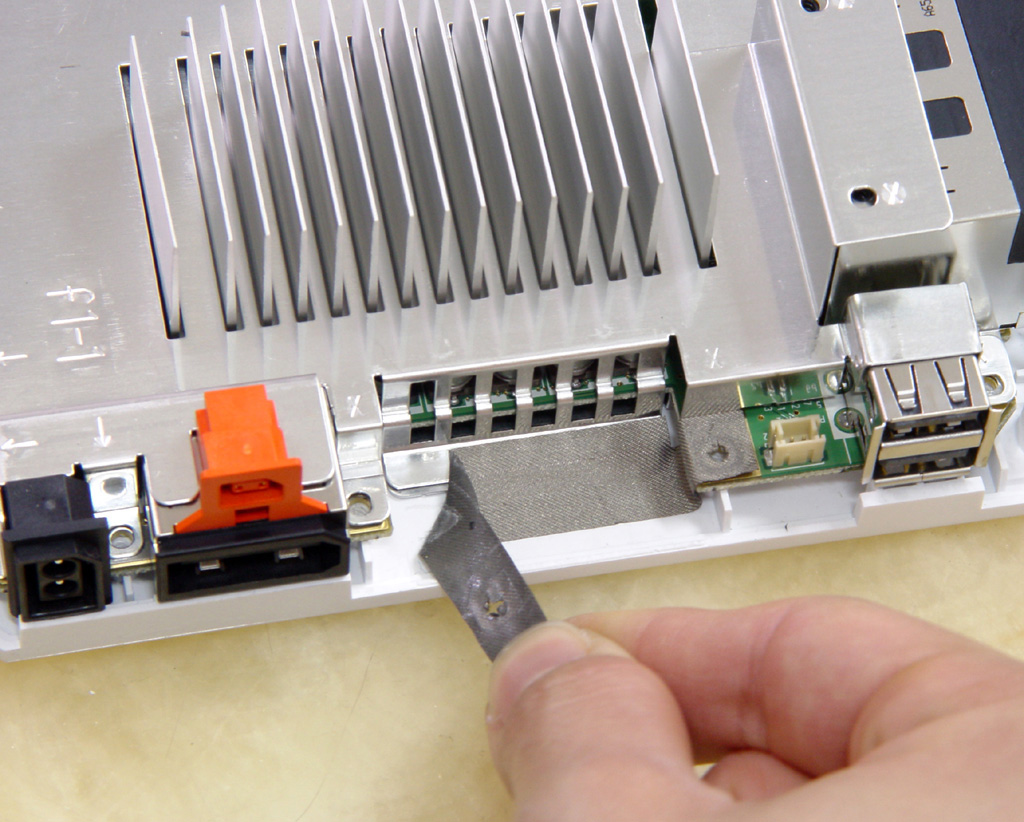

View Original _____________________________________________________ Guide Provided By: XCM Estimated Time: 30min - 1hour Experience Level: Intermediate Items Needed: Philips Screwdriver, Triwing Screwdriver, Small knife (optional). _____________________________________________________ 1) As indicated by the picture, remove the 4 bottom left rubber stand and screws by using the screw driver provided. View Original 2) As indicated by the picture, remove the bottom rubber stand and screws by using the classic screw driver provided. View Original 3) Remove the battery and the screw. View Original 4) Follow the instruction to take off these 2 plastic plates. View Original 5) As indicated by the picture, remove those 3 screws by using the classic screw driver provided. View Original 6) Remove the top plate of the console then those 4 screws. View Original 7) As indicated by the picture, unplug the power source. View Original 8) Remove the right plastic plate and the metal DVD rom cover, and take off the screws as indicated in the picture. View Original 9) Open the DVD rom ,and follow the instruction of the number to take off the cables. View Original 10) Remove those screws. View Original 11) As shown in the picture, unplug the power source of the fan. View Original 12) Remove the fan and the flow wind tunnel then take off 3 screws. View Original 13) Remove the black plastic part then take off those 14 screws. View Original 14) Take off the tape then remove the metal part. View Original 15) Take off 4 screws and remove the heat sink. View Original 16) Remove all the parts from the left plastic plate, you are now finished. View Original
