How To Install XCM Hard Drive Shell

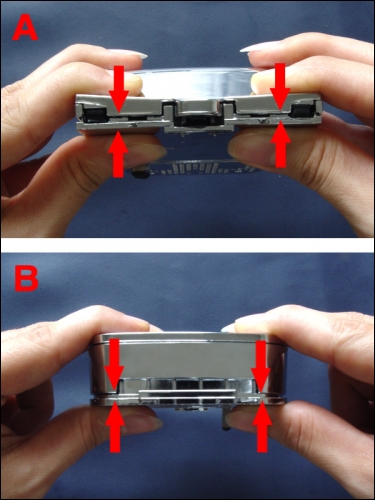

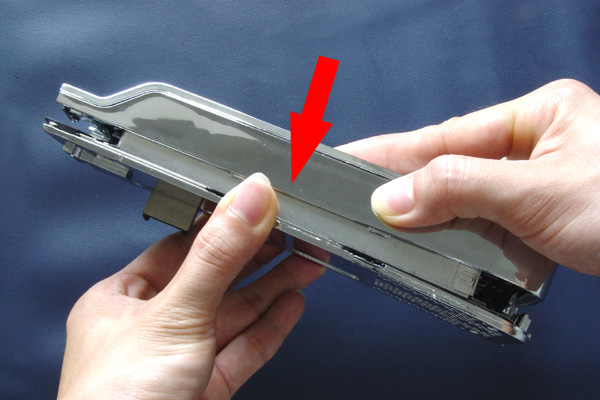

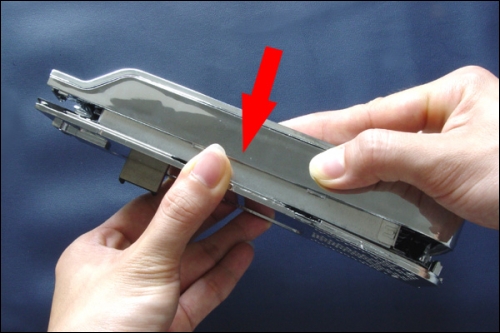

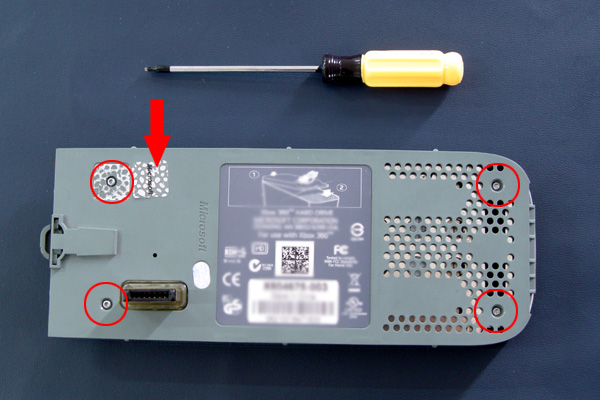

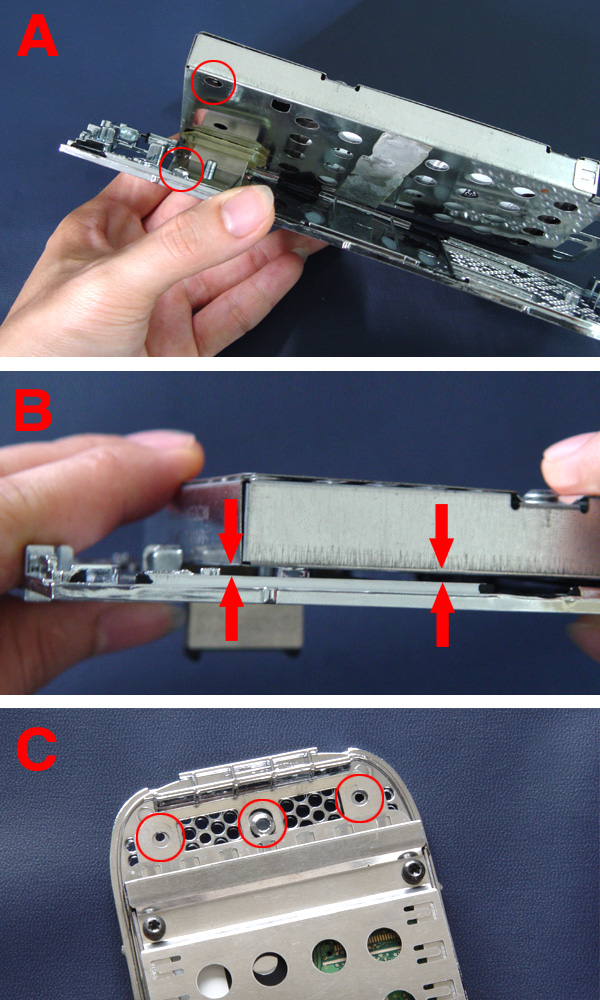

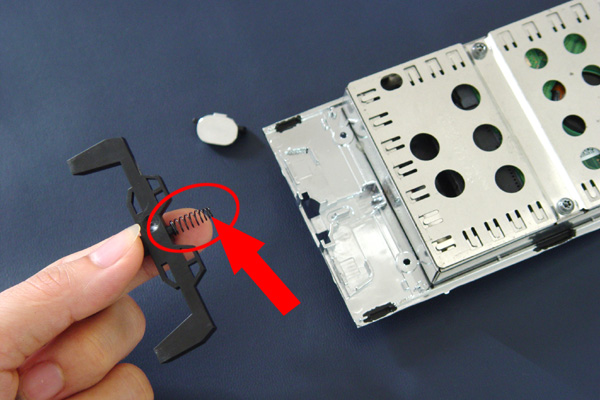

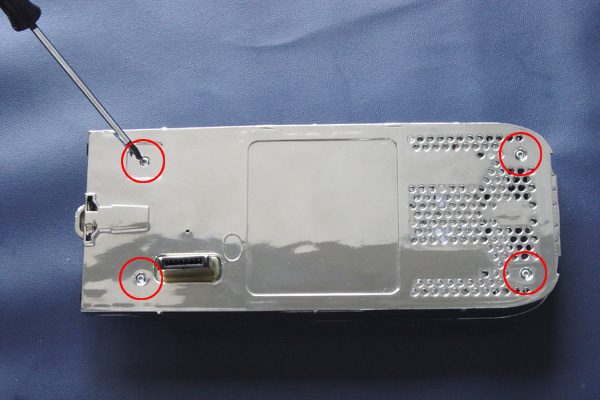

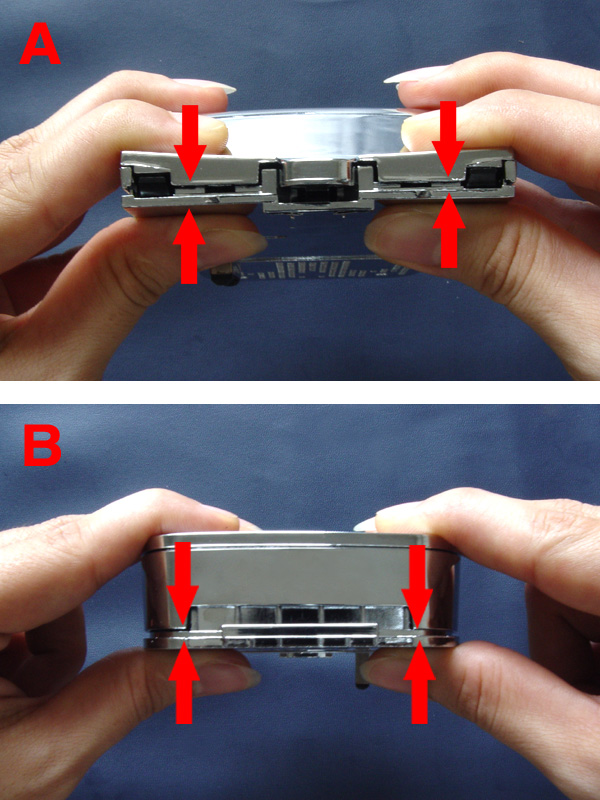

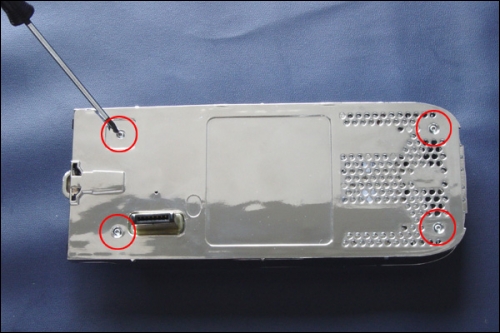

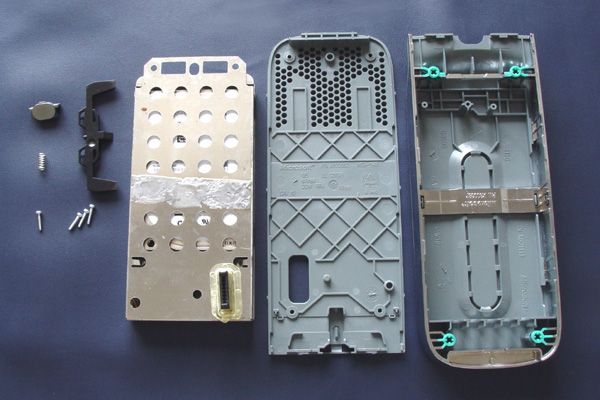

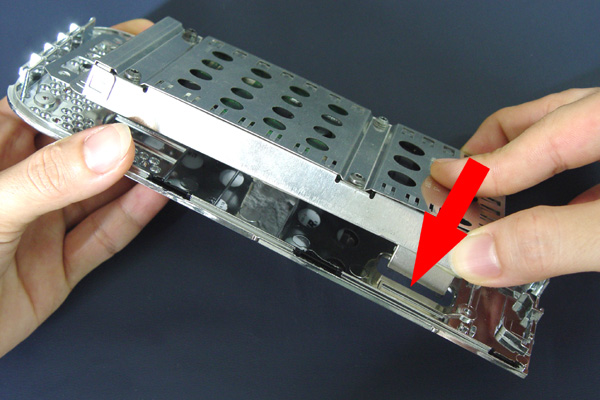

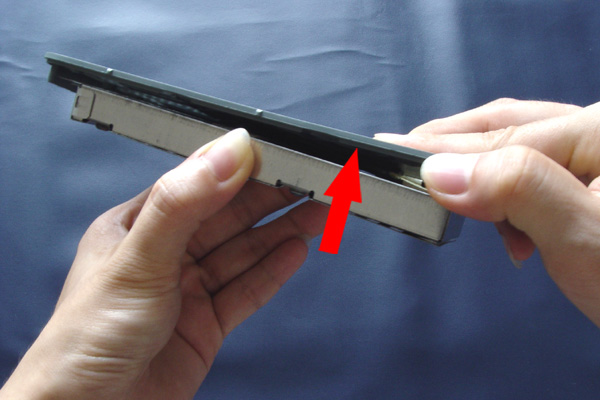

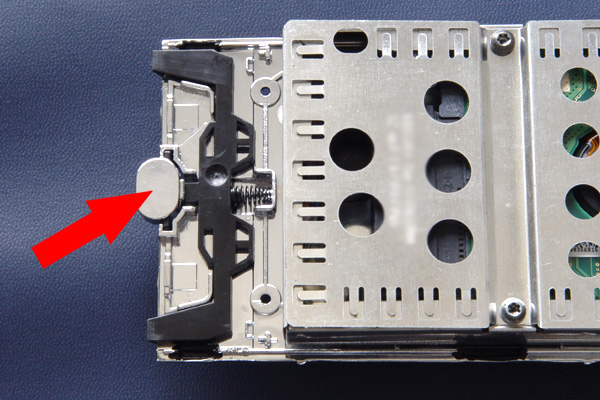

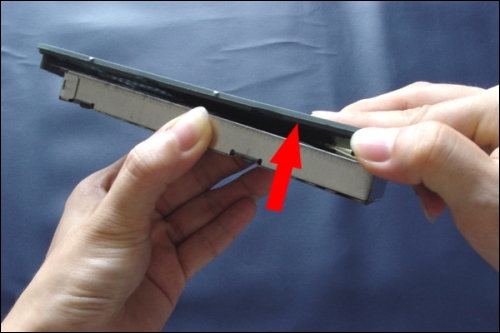

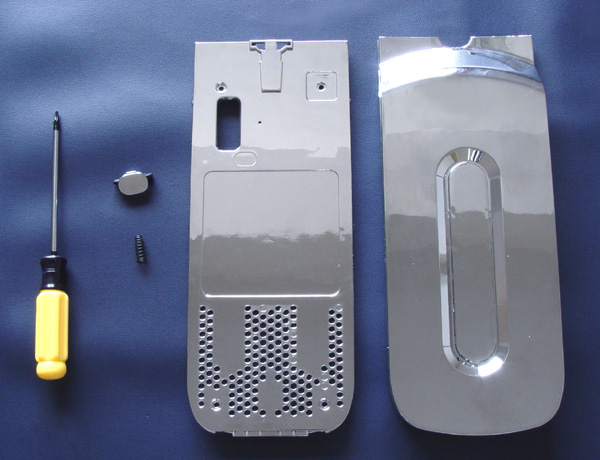

View Original _____________________________________________________ Guide Provided By: XCM Estimated Time: 15min - 30min Experience Level: Beginner Items Needed: T6 torx screwdriver, Small knife (optional). _____________________________________________________ 1) As shown in picture remove the sticker; then use the screw driver that comes with the H.D shell (chrome) kit to remove the 4 screws. View Original 2) Take the original H.D. shell (top) apart, then as shown by the arrow take the bottom original H.D. shell off. It is held on there with very strong adhesive, so you will need to pull with force. View Original 3) Take out the Hard Drive. View Original 4) XCM 360 H.D. Shell parts displayed. View Original 5) Follow the arrow and put the Hard Drive into the XCM H.D shell bottom shell. View Original 6) As shown by pic A and pic C, follow arrow B to put together the Hard Drive and bottom XCM 360 H.D shell. View Original 7) Take out the black button and spring. View Original 8) Put the black button set and spring in the on the Hard Drive set; then install the XCM 360 H.D shell button on top of it. View Original 9) Install the XCM 360 H. D shell top piece on. View Original 10) Follow pic A, B arrow to put together the top and bottom XCM 360 H.D shell. View Original 11) Use the 4 screws to secure the top and bottom XCM 360 H.D shell together (with Hard Drive inside). View Original 12) Installation Complete. View Original
