How To Fix 1 & 3 Red Lights Xbox 360
View Original
_____________________________________________________
Guide Provided By: Gaming Generations
Estimated Time: 15min - 45min
Experience Level: Beginner
Items Needed: T8 torx screwdriver, T10 torx screwdriver, Xbox 360 Opening Tool (Optional but recommended), Thermal paste (optional but recommended), 16 washers, 8 screws, pliers, Small knife (optional), Q Tips (optional), Goof Off (optional) old credit card (optional).
_____________________________________________________
Red lights are the most common issue with Xbox 360 consoles. The main cause of this has to due with faulty solder used under the GPU chip on the motherboard. To be able to produce this system, lead free solder was a requirement that Microsoft had to abide by. Over time as current runs through lead free solder it slowly corrodes. There are hundreds of solder balls connecting the GPU/CPU chip to the motherboard. Once one of these solder balls disconnects from the motherboard you will most likely experience red lights. We looked at this in our forums a while back HERE. In this guide we are going to attempt to re-flow the solder w/ using basic equipment that you may already have. If you have issues w/ this guide working, please go to the bottom as more in depth measures can be taken.

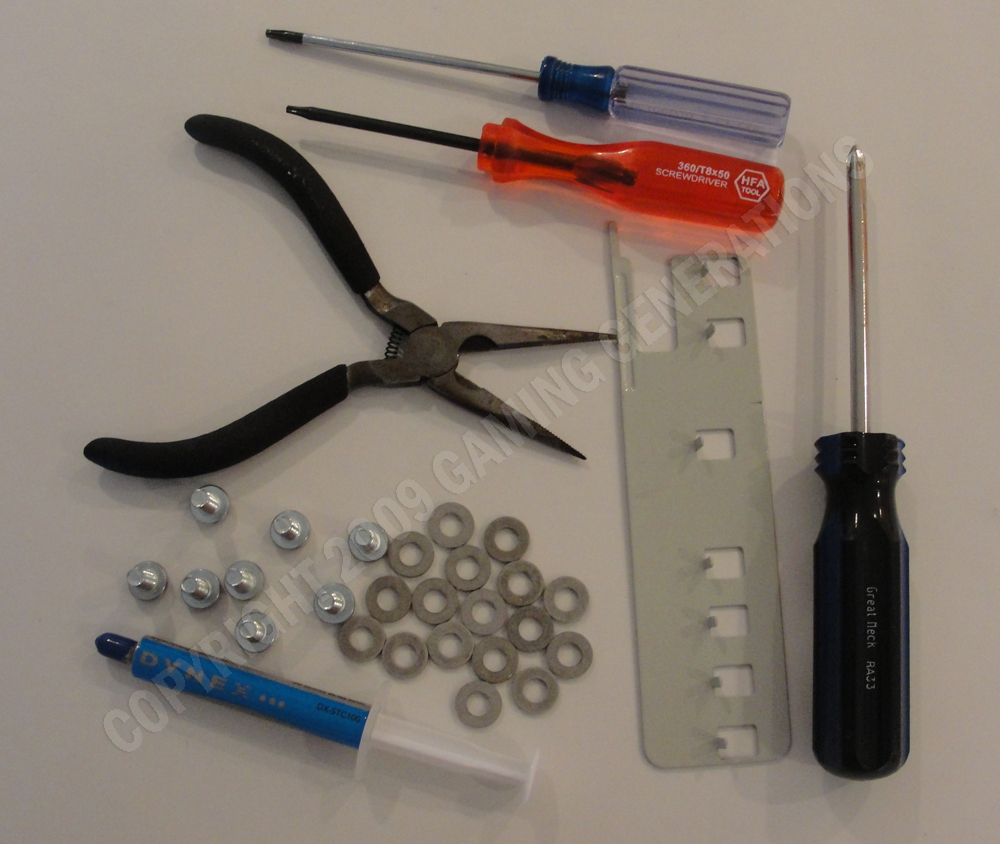

1) Grab your necessary tools. The picture below does not show everything being used in this guide. You can purchase the 3 red light kit from us HERE.
View Original

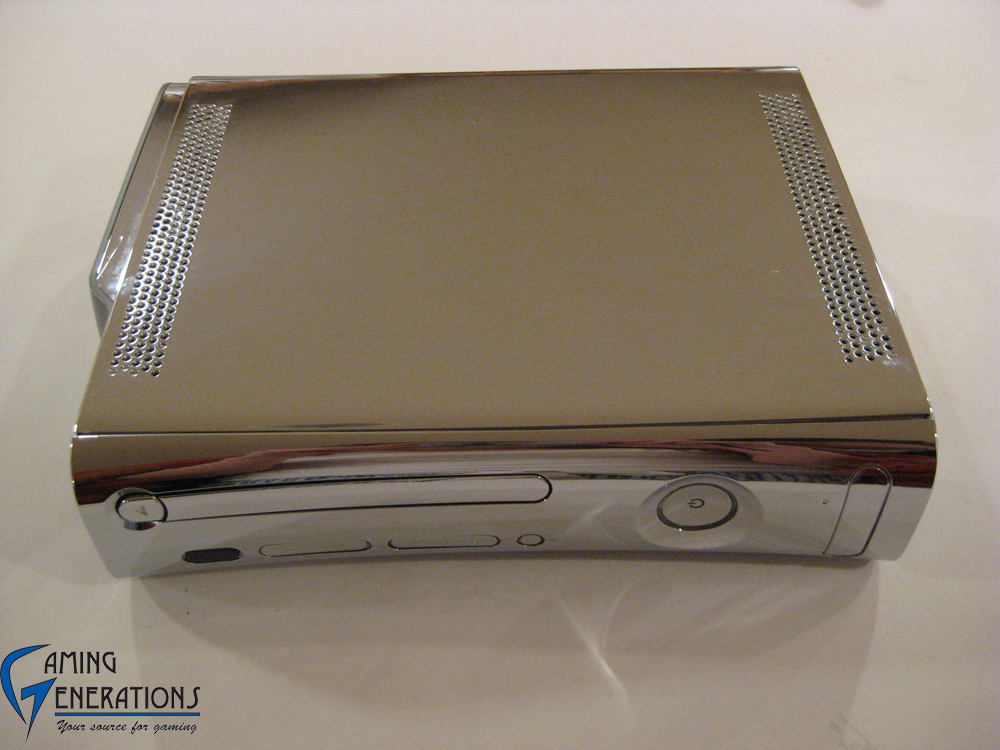

2) As you can see this Xbox 360 already has a custom case on it. We will take this case off and re-apply it.
View Original

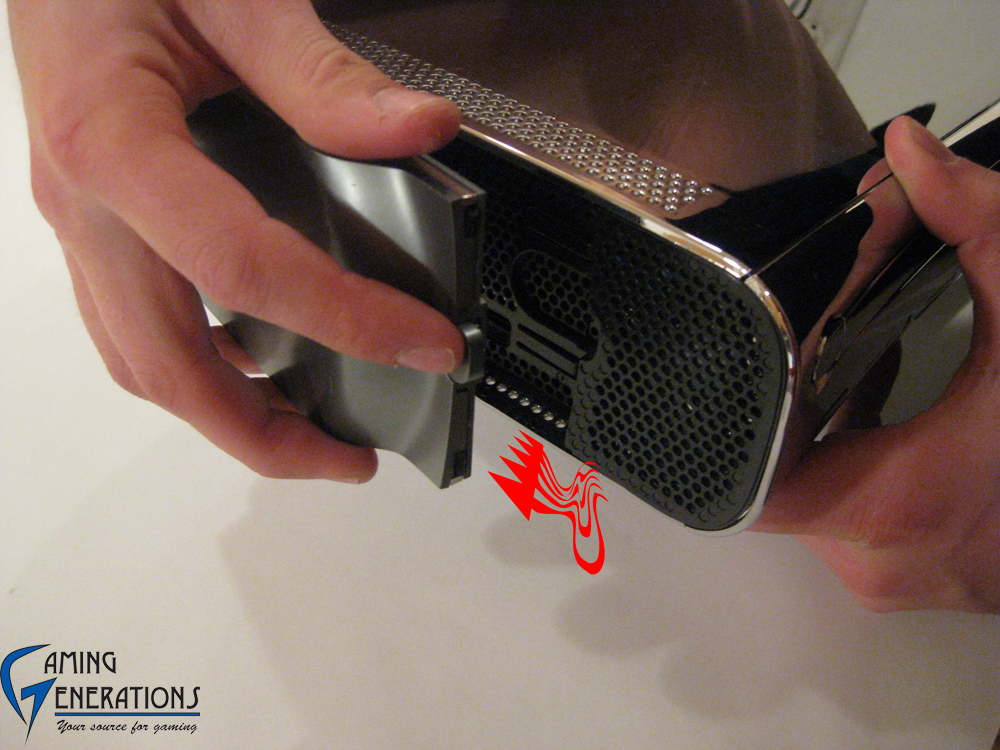

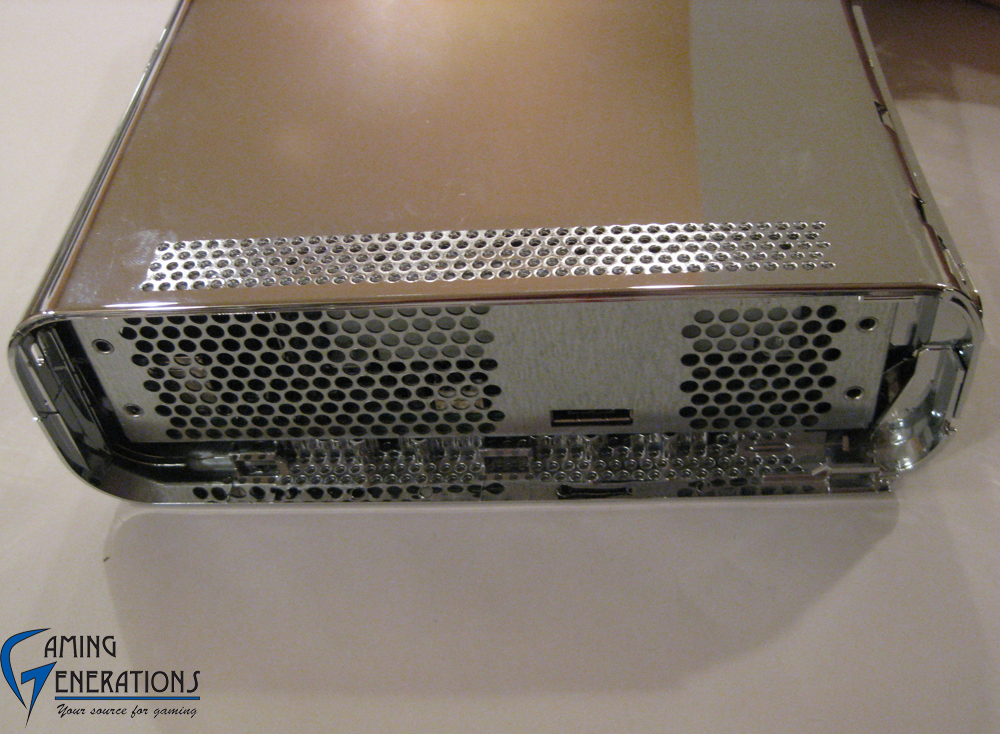

3) Start by taking off the hard drive if necessary. There is a small button, just push it down and pull up on the sides of the hard drive to remove.
View Original

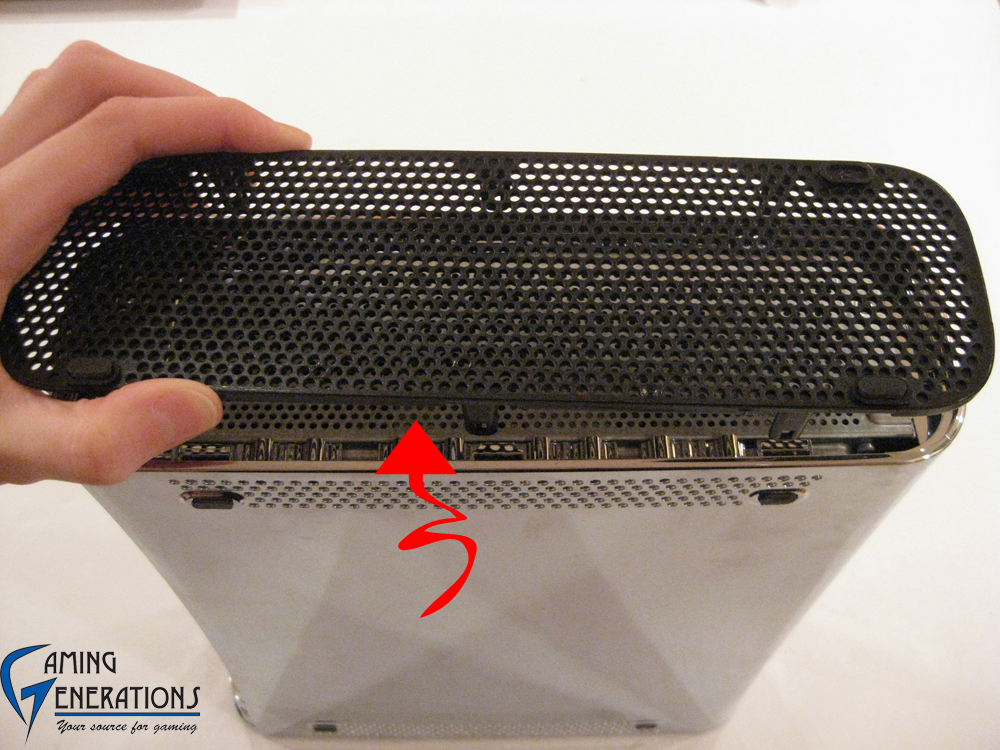

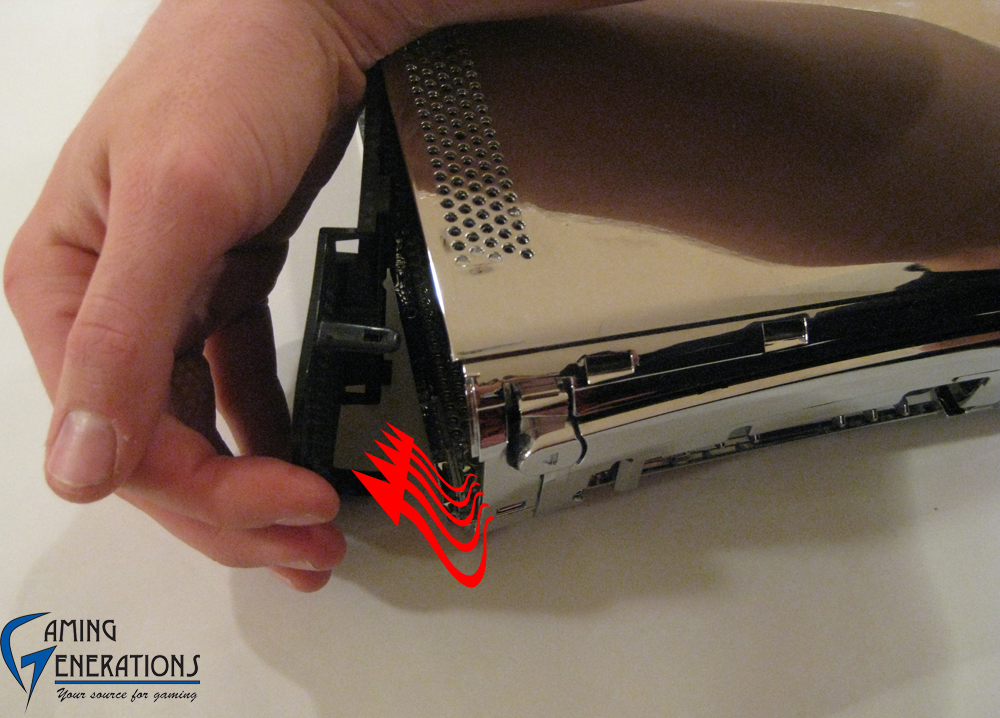

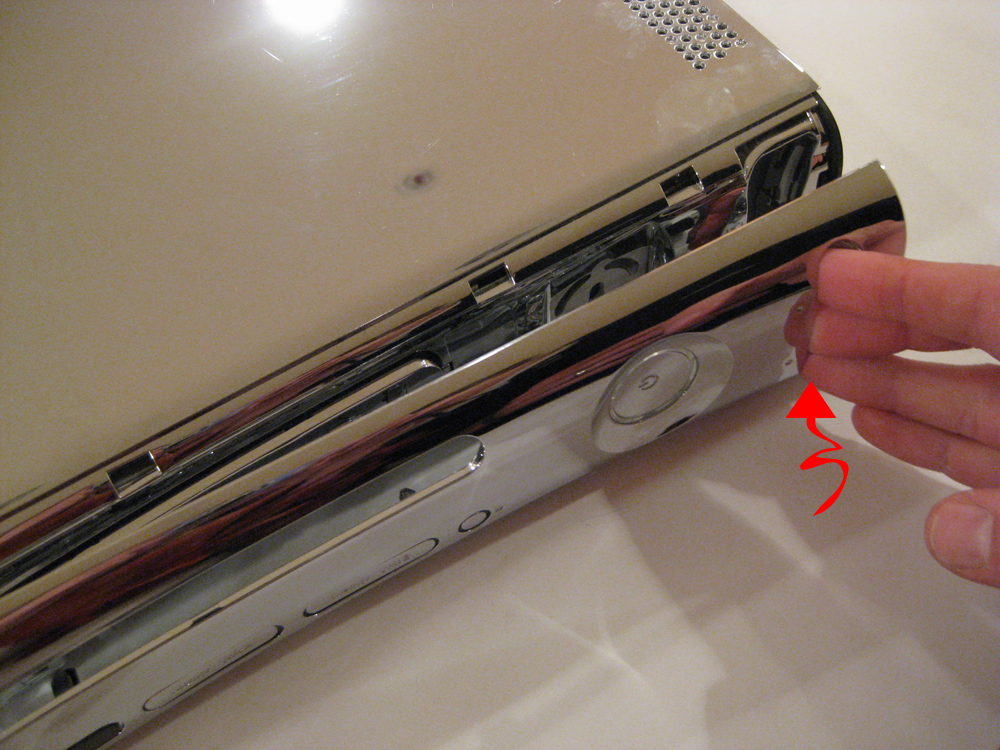

4) Put your fingers in the tab and pull back w/ a bit of force. The faceplate should snap off. Be careful not to pull to hard as you do not want to break the face plate.
View Original

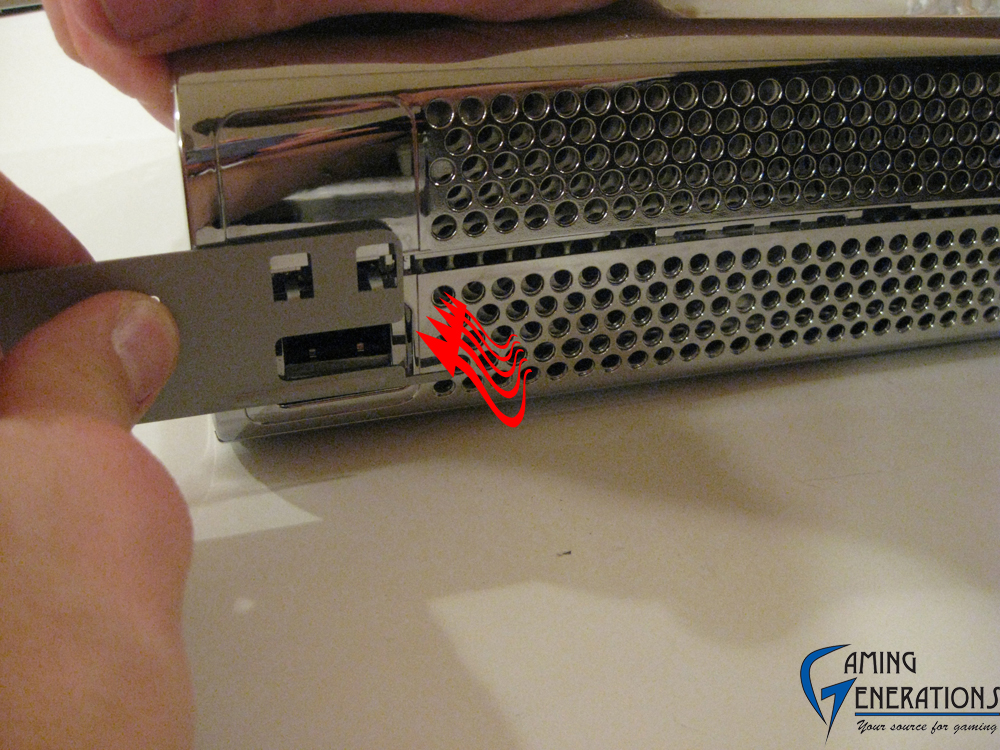

5) Now on to the most difficult part. There are hidden tabs inside of the case underneath the "Heat Panels". You can easily get at them with your opening tool. Look inside the case where the red marks are located below and you can see the tabs you need to press.
View Original

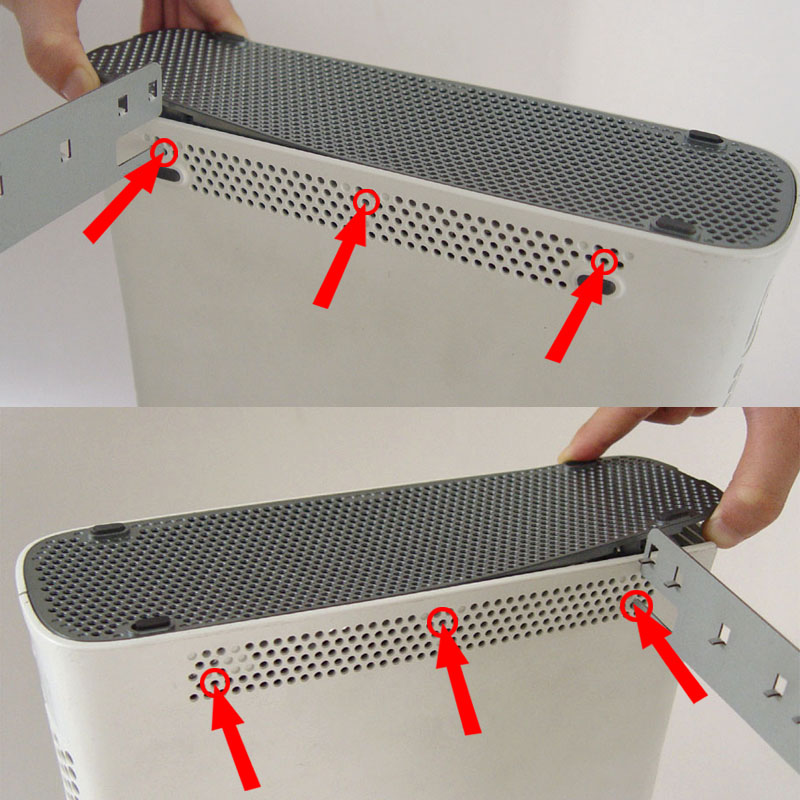

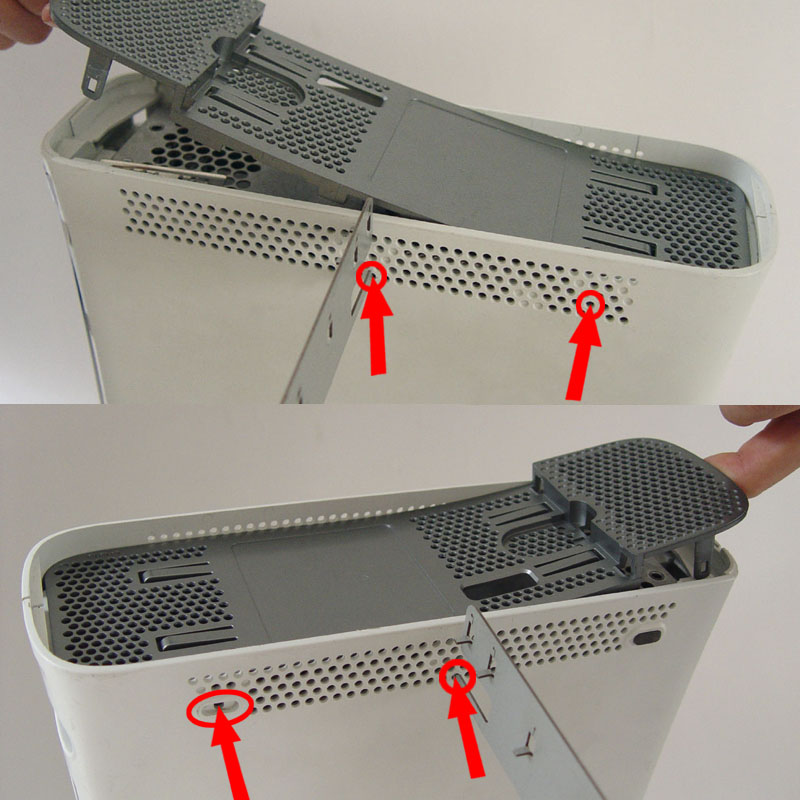

6) In this picture you can see exactly where the tabs are located and how to effectively use the opening tool. The picture below is from XCM's official guide. Once you're done with this heat panel move on to the hard drive heat panel.
View Original
7) This side is more difficult because you really cannot get to the 2 tabs on the front part of the heat panel. The easiest way I have found is to pull up with force on the front. A quick hard pull and both tabs should snap right up and wallah.
View Original

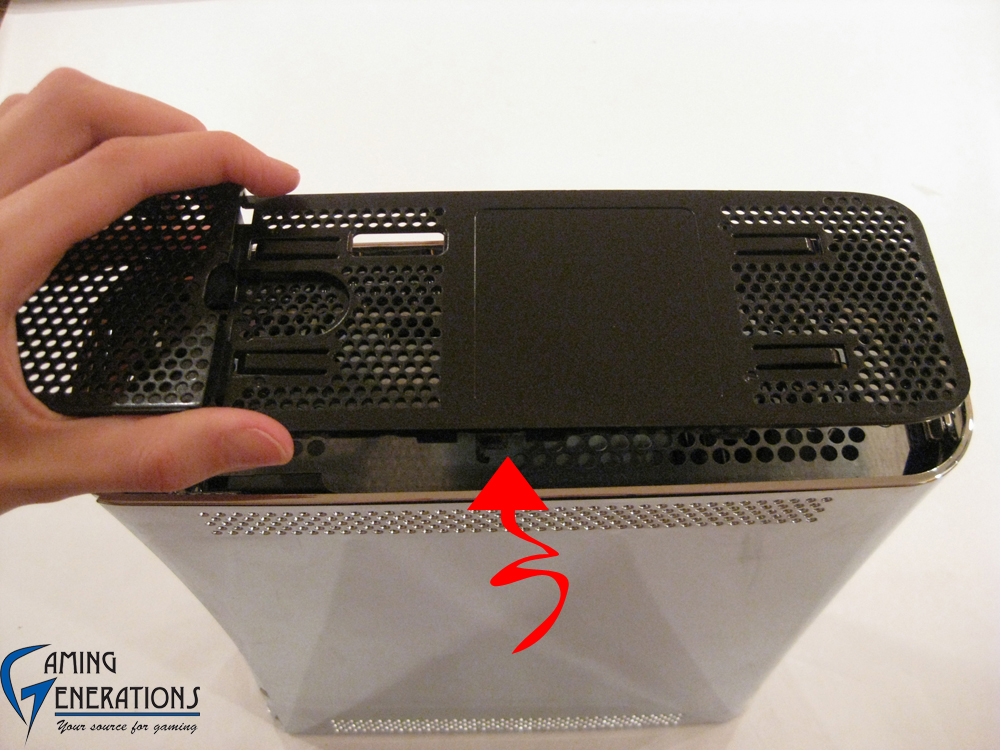

8) Now finish up taking off the heat panel by pushing in the last 4 tabs. Note that one of the tabs is hidden under a rubber pad, you may need to remove the pad to get to the tab. The picture below is again from XCM's official guide.
View Original
9) You should now have both heat panels off.
View Original

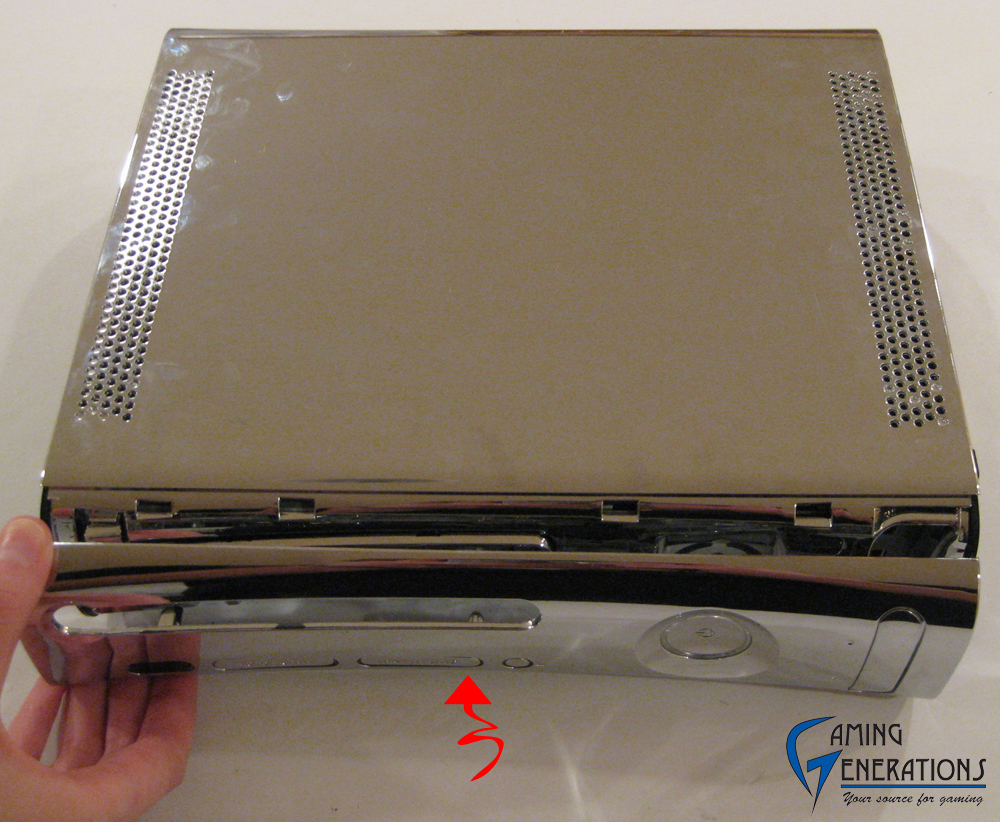

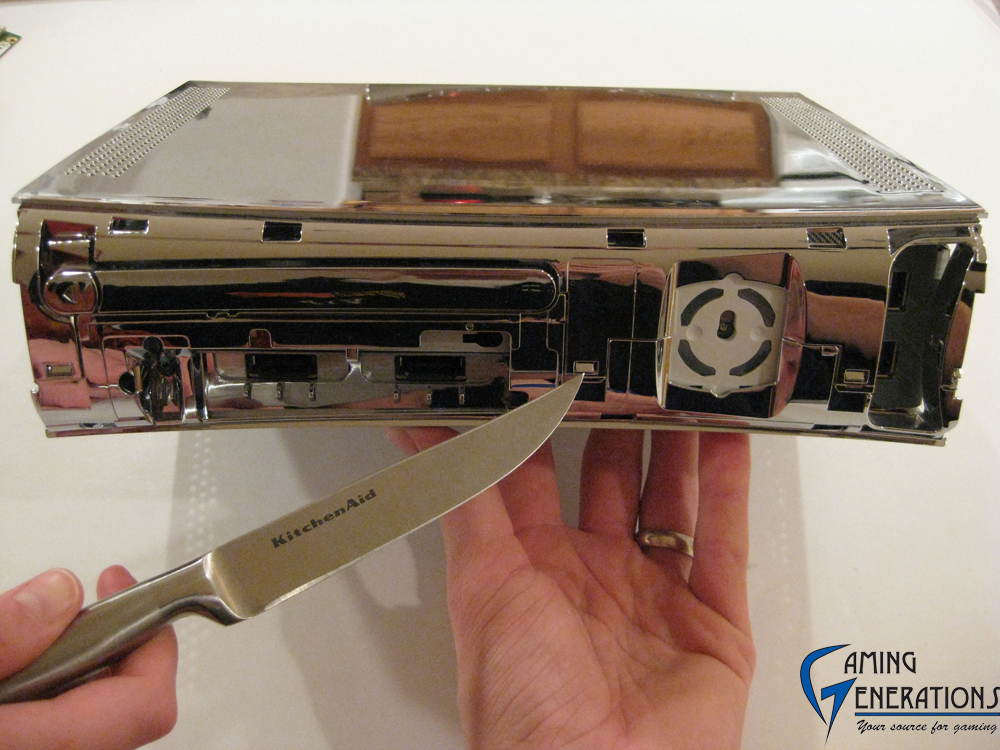

10) Now we are going to work on taking the top case off. There are 4 buckles that need to come unlatched. Using a small sharp object like a knife makes it easy to unlatch the buckles.
View Original
11) All 4 buckles should now be slightly unlatched.
View Original

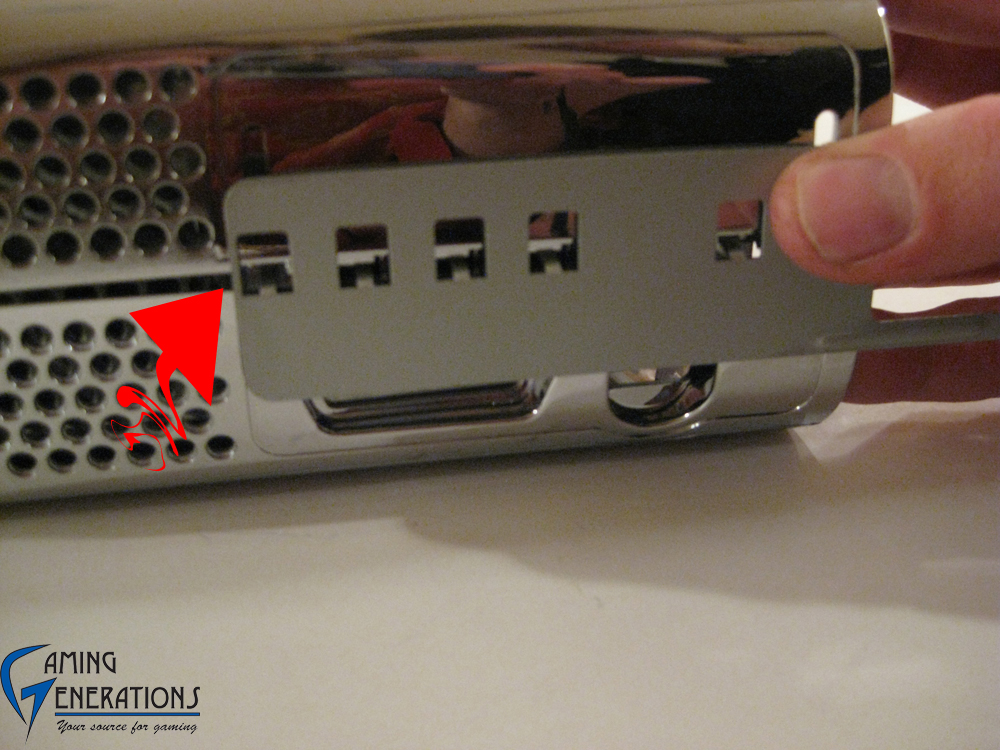

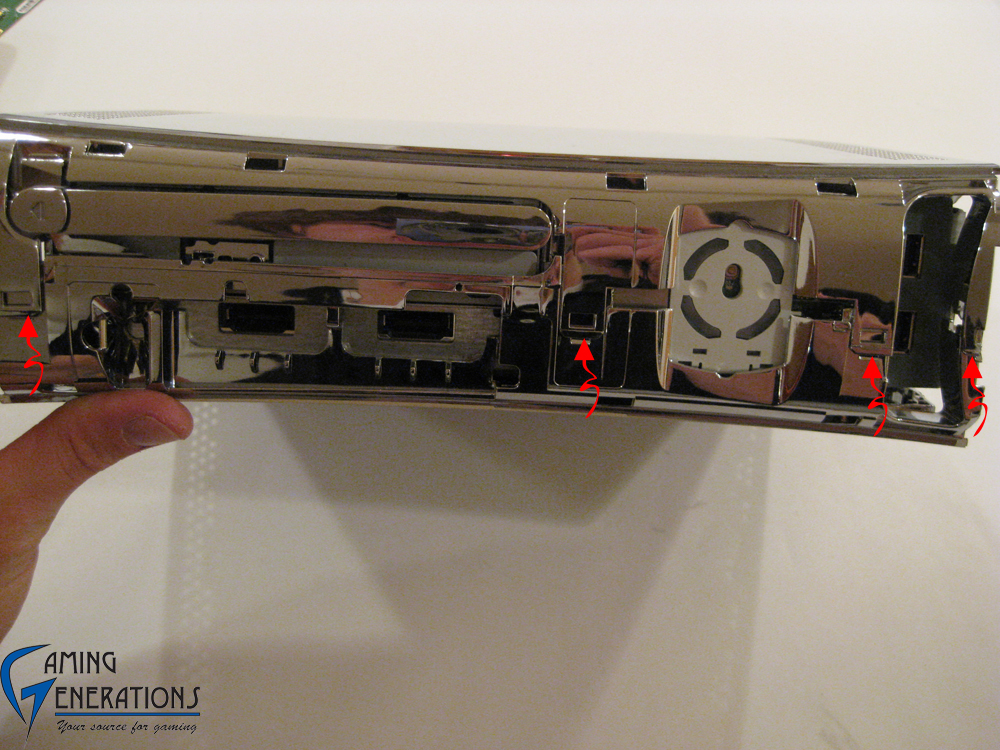

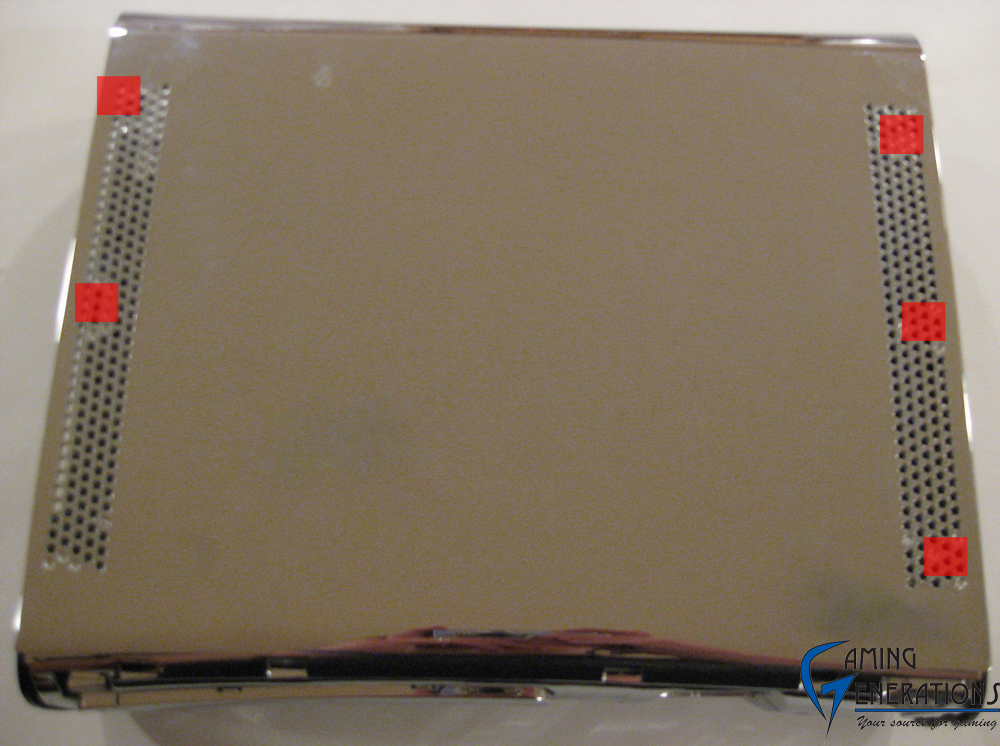

12) Now it's time to put your opening tool to the test. On one side there are 5 tabs on the back of the Xbox 360 that all need to be pressed at once in order to release this side of the case. Put in the opening tool like below, then push and gently pull up at the same time. The case should come unlocked. Try to make sure the buckles in front do not re-latch again during this process.
View Original
13) Now onto the other side. There are only 2 tabs to push in on this side. Sometimes it is difficult to hit the tabs, usually this is because the top case is pulled up to high on the other side or in front. Push it back down as low as you can w/out putting the tabs and buckles back in place and then try getting at the tabs again. If you cannot get it, you can yank the case off but it will most likely break.
View Original
14) Now that the tabs and buckles are unlatched you should be able to pull off the top of the case.
View Original

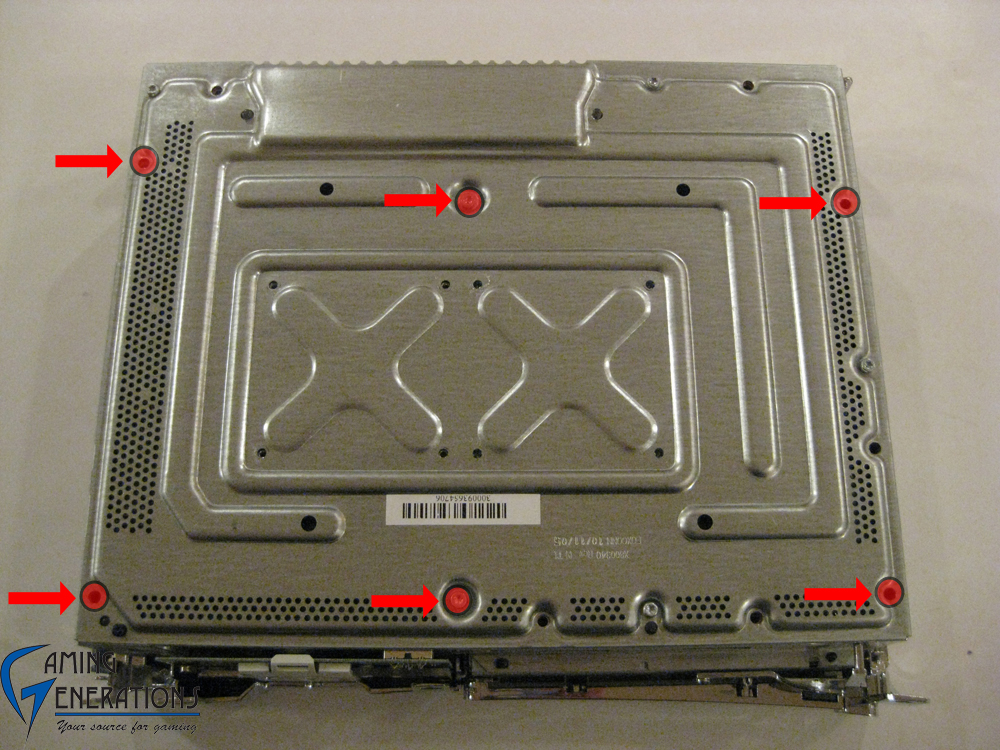

15) There are screws you need to take out with your Torx 10 screwdriver. They are indicated below.
View Original
16) Having fun yet?
View Original

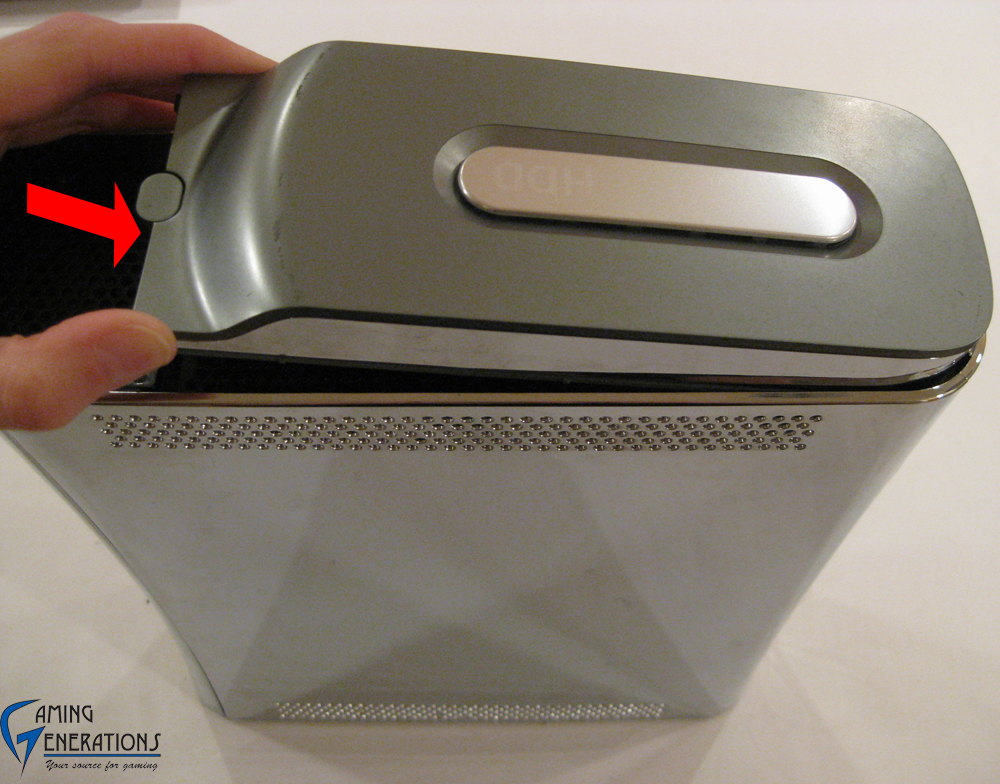

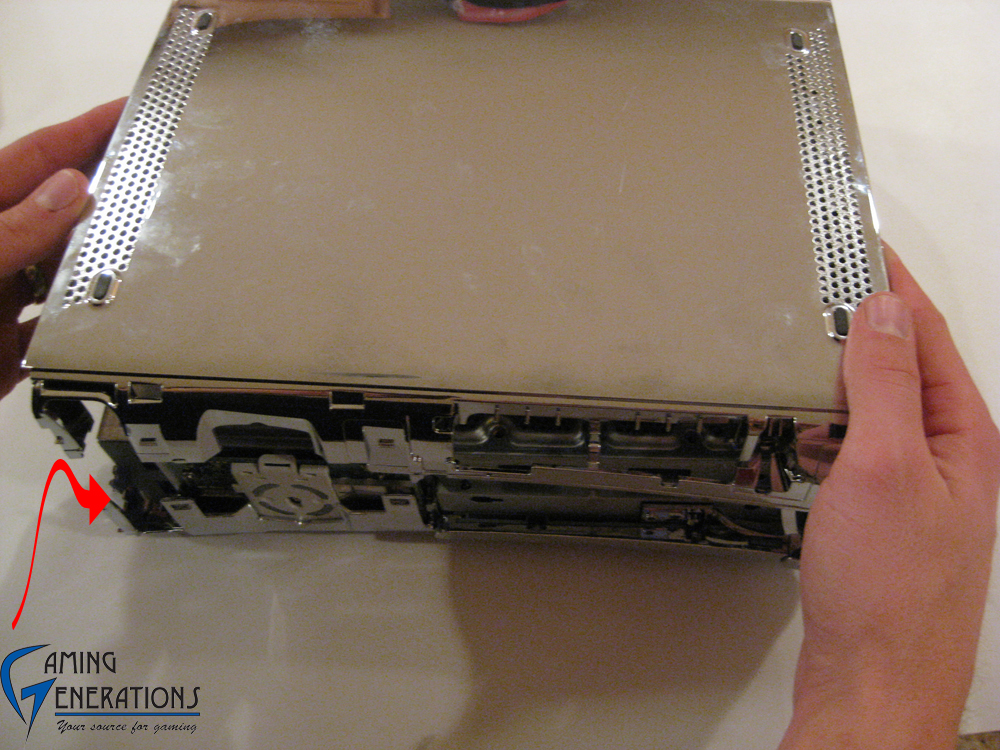

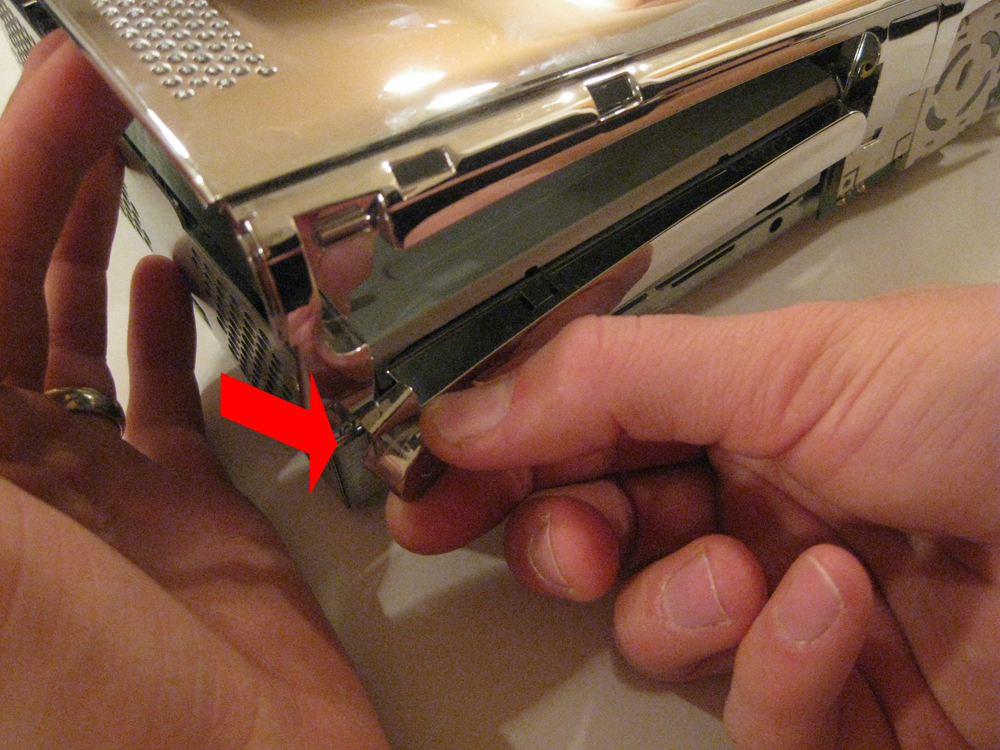

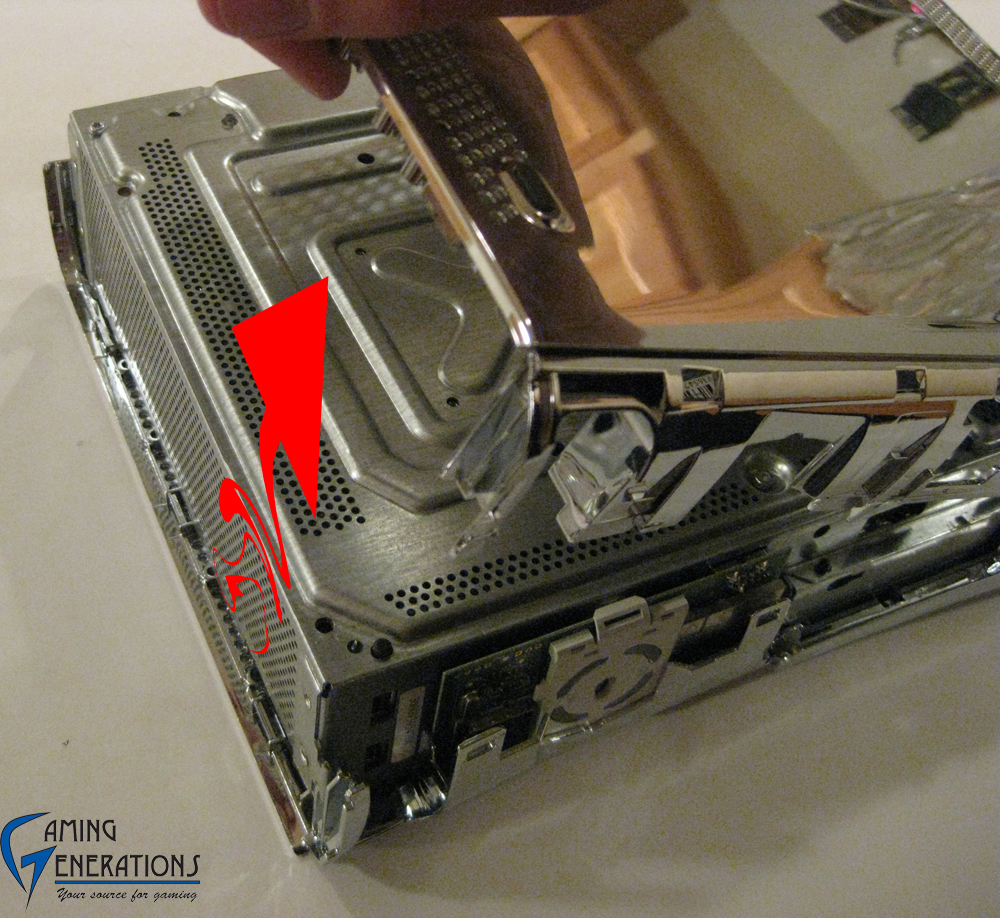

17) After all 6 screws are removed, flip the Xbox 360 over. Pull up the case BUT make sure you pull back on the eject button before pulling it up like shown below. You can just completely take off the eject button as you will be replacing it most likely anyways.
View Original

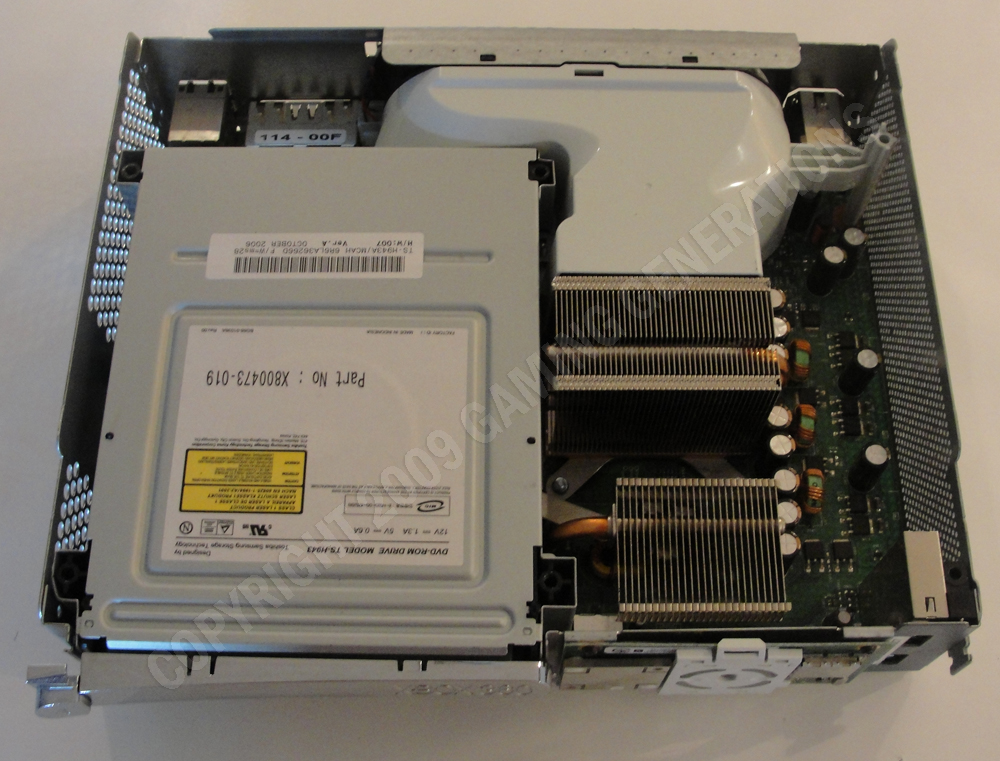

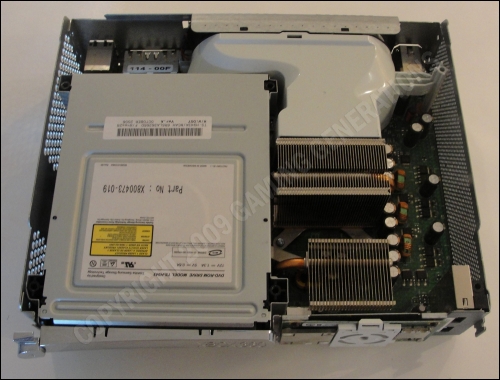

18) This is what the inside of your Xbox 360 will look like. The drive may be different!
View Original

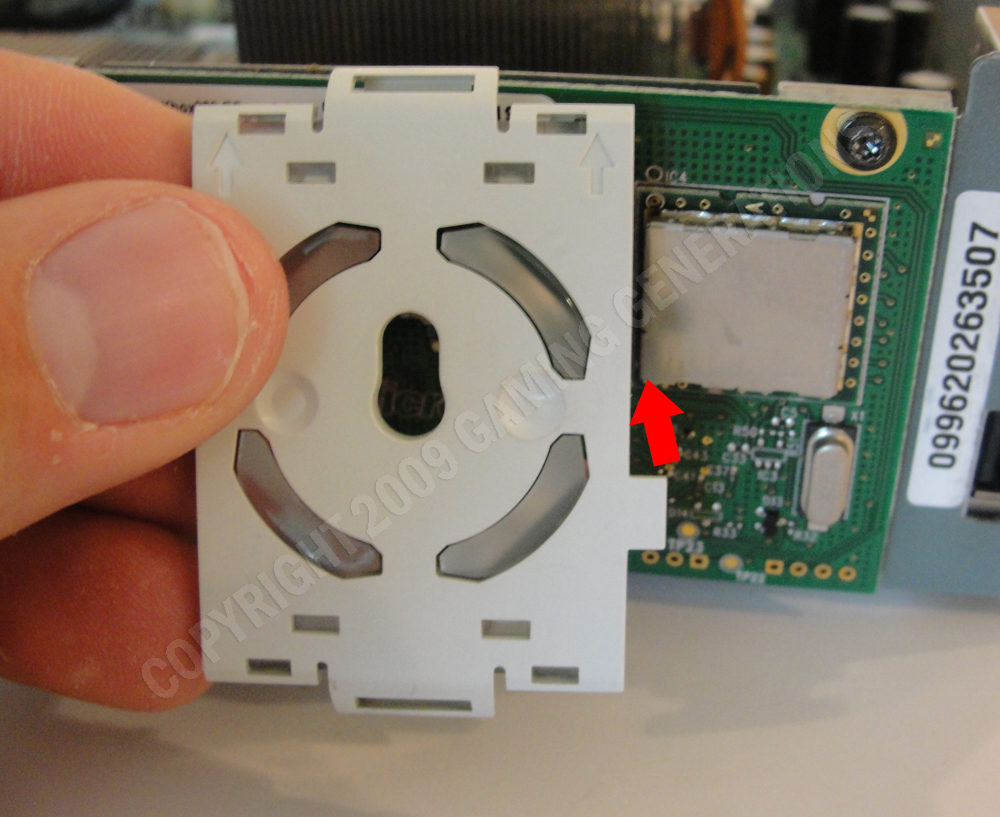

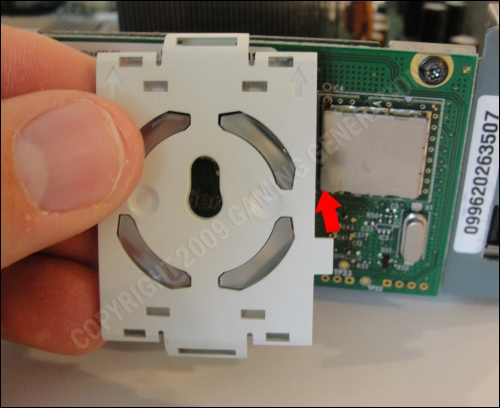

19) Un-snap the ring of light plastic piece.
View Original

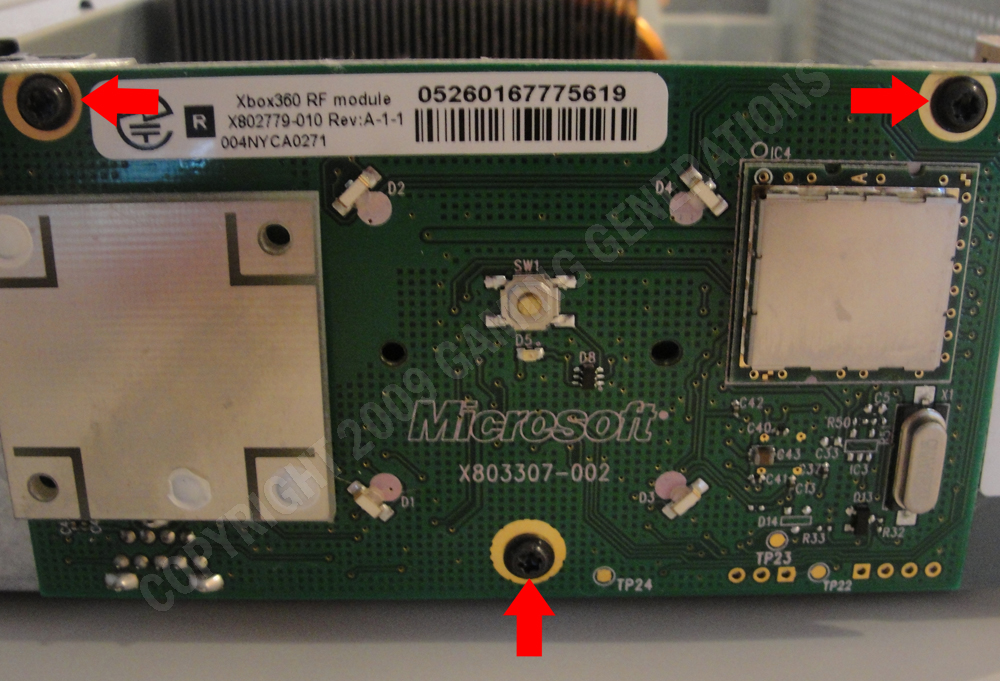

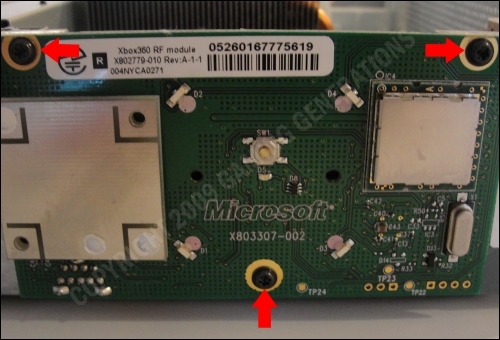

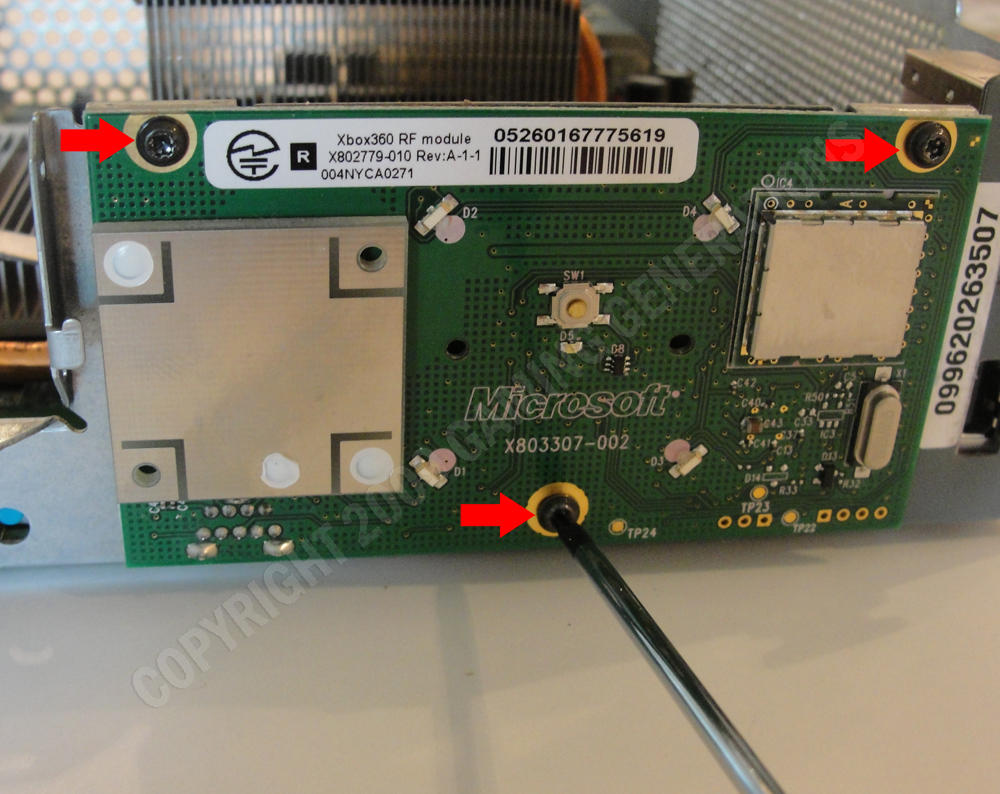

20) Take out the 3 black torx screws with your T8 screwdriver.
View Original

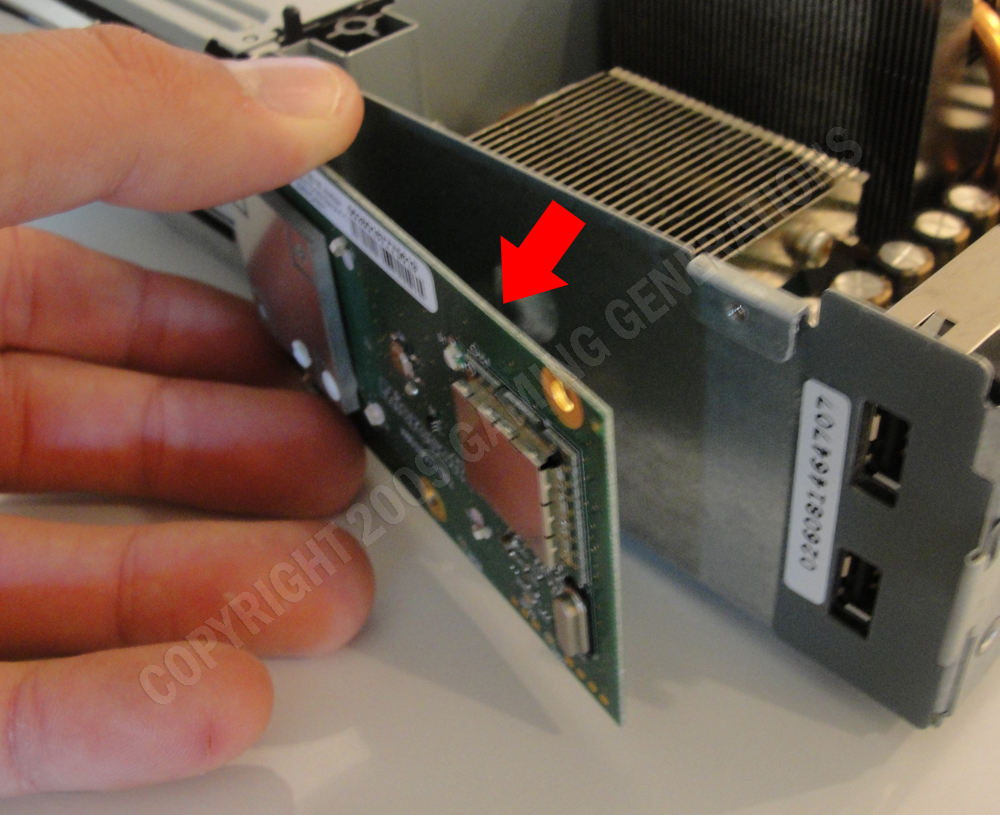

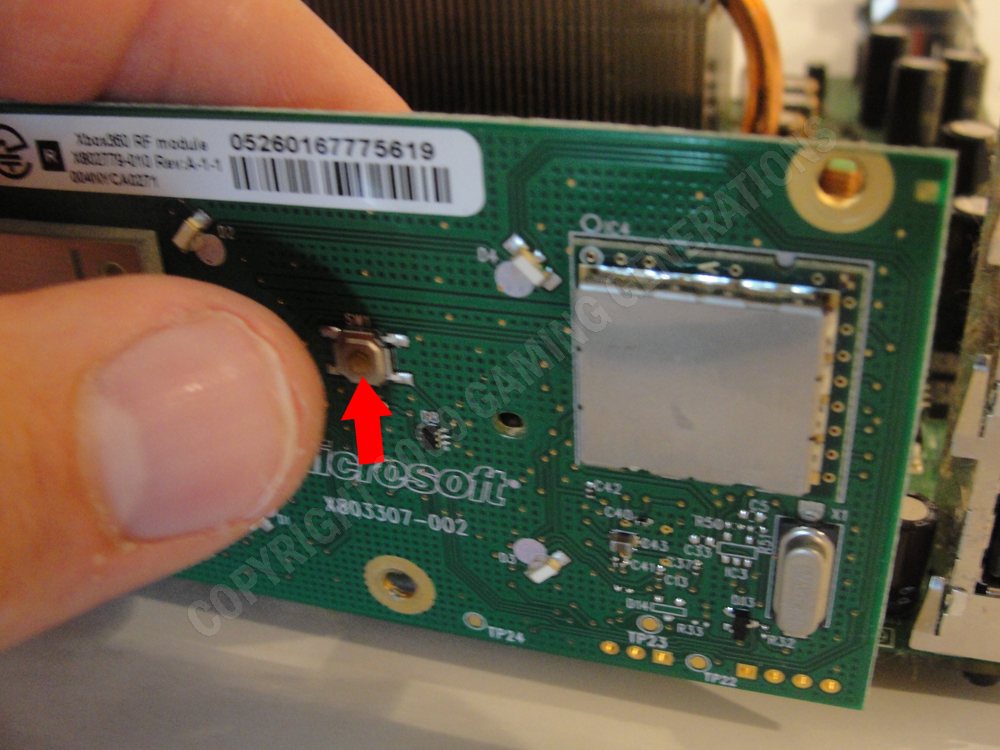

21) Pull off the wireless PCB (ring of light).
View Original

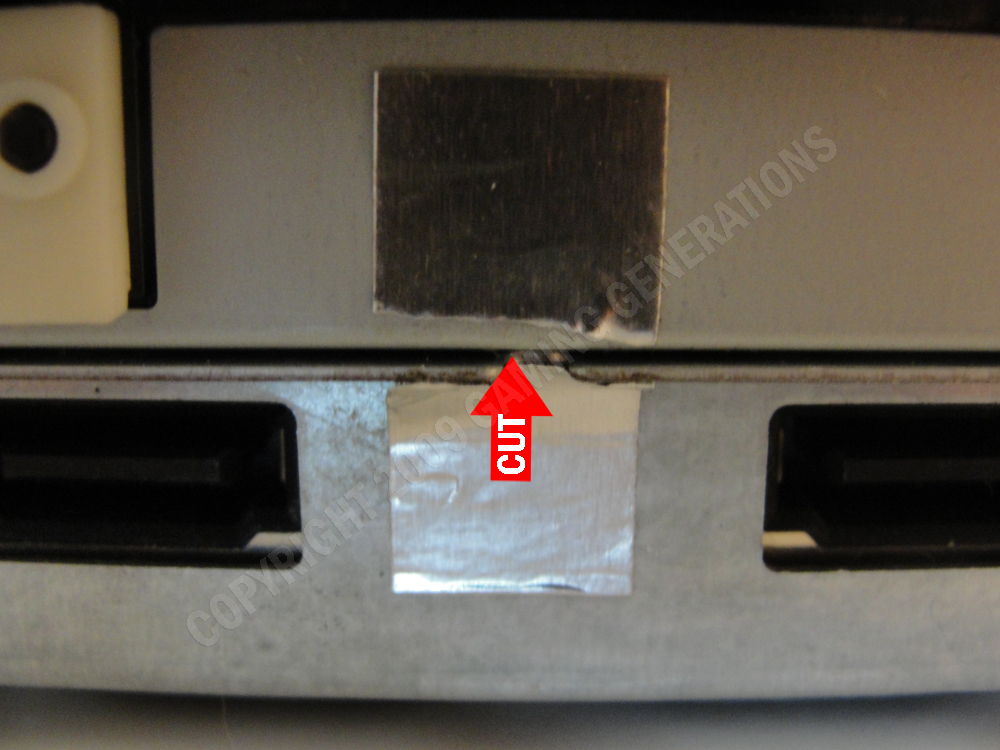

22) Cut the little strip holding the drive down.
View Original

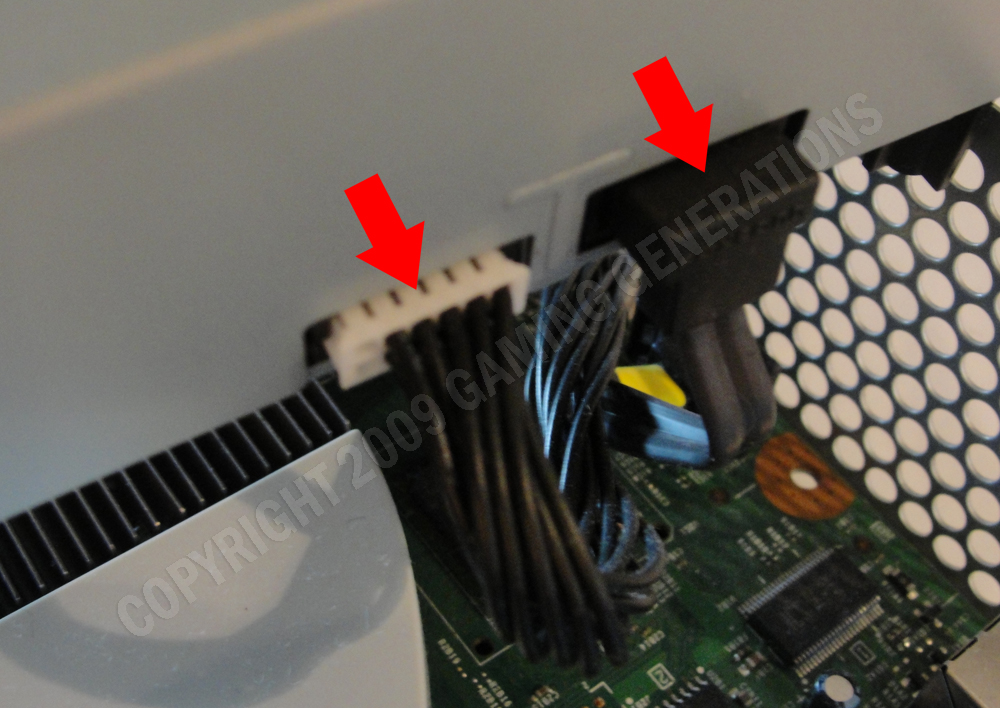

23) Pull out the 2 cables connected to the drive and remove the drive.
View Original

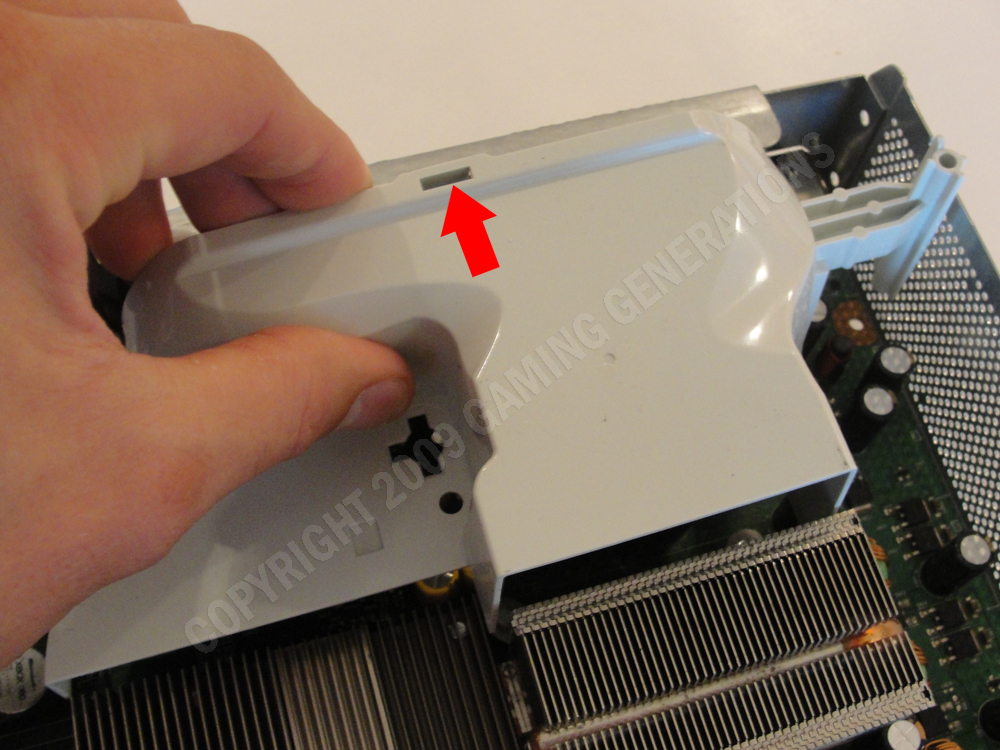

24) Pull off the fan shroud.
View Original

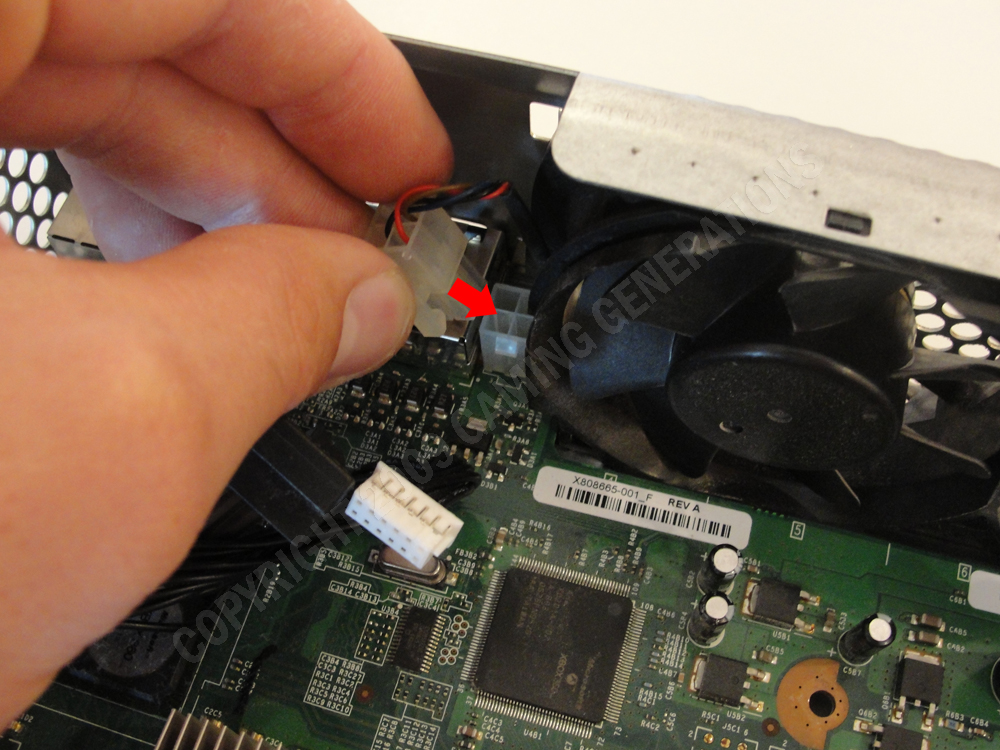

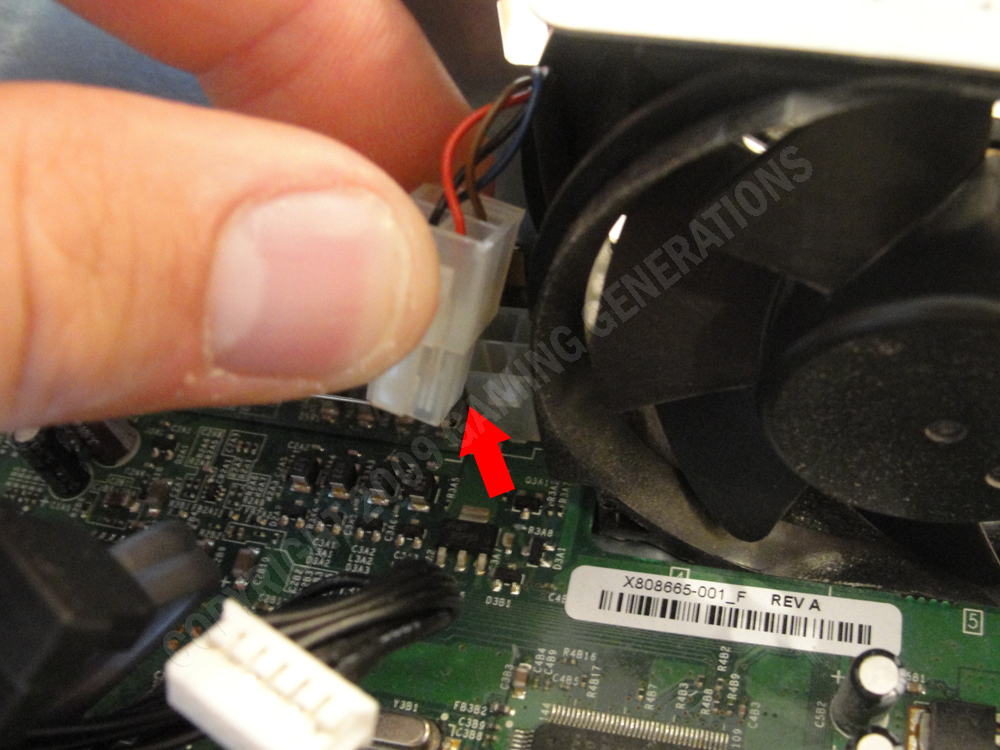

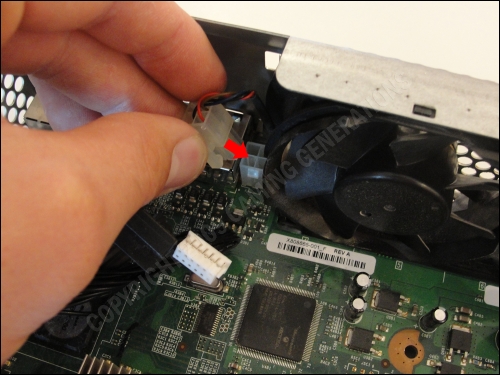

25) Unplug the fan.
View Original

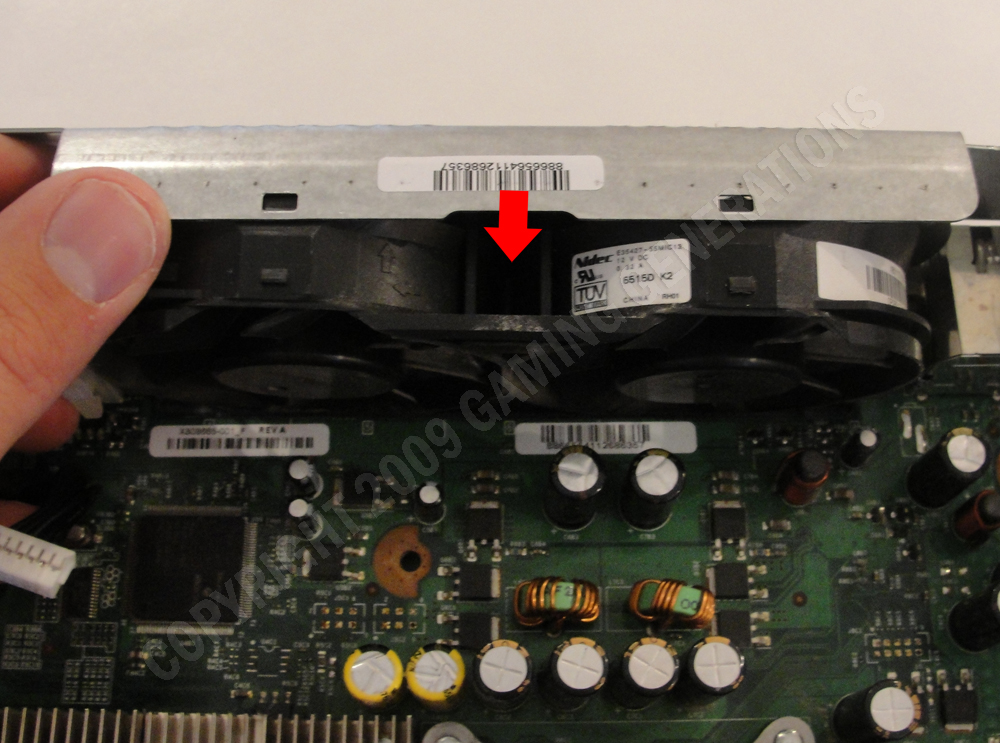

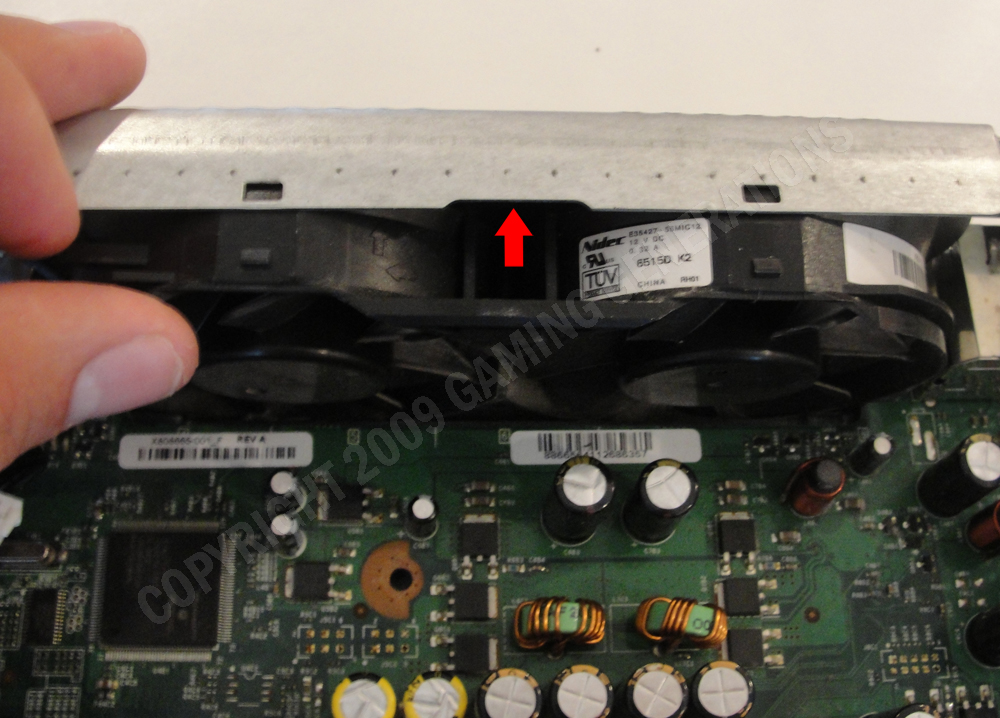

26) There are 2 tabs holding the fan in place. Pull up on the metal and the tabs should come loose releasing the fan.
View Original

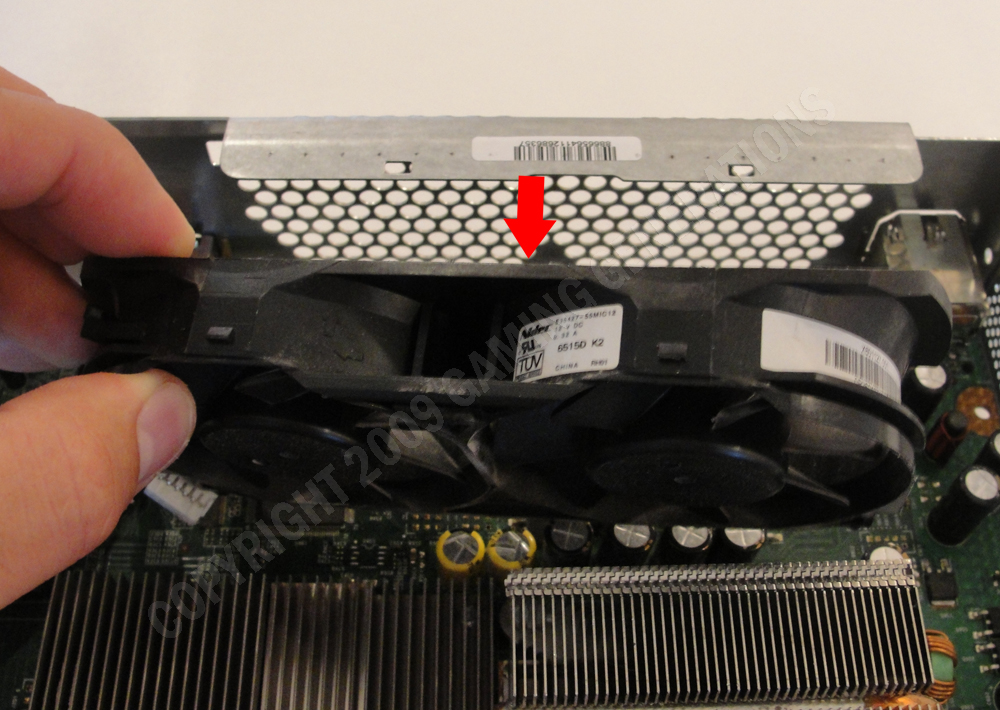

27) Pull the fan out.

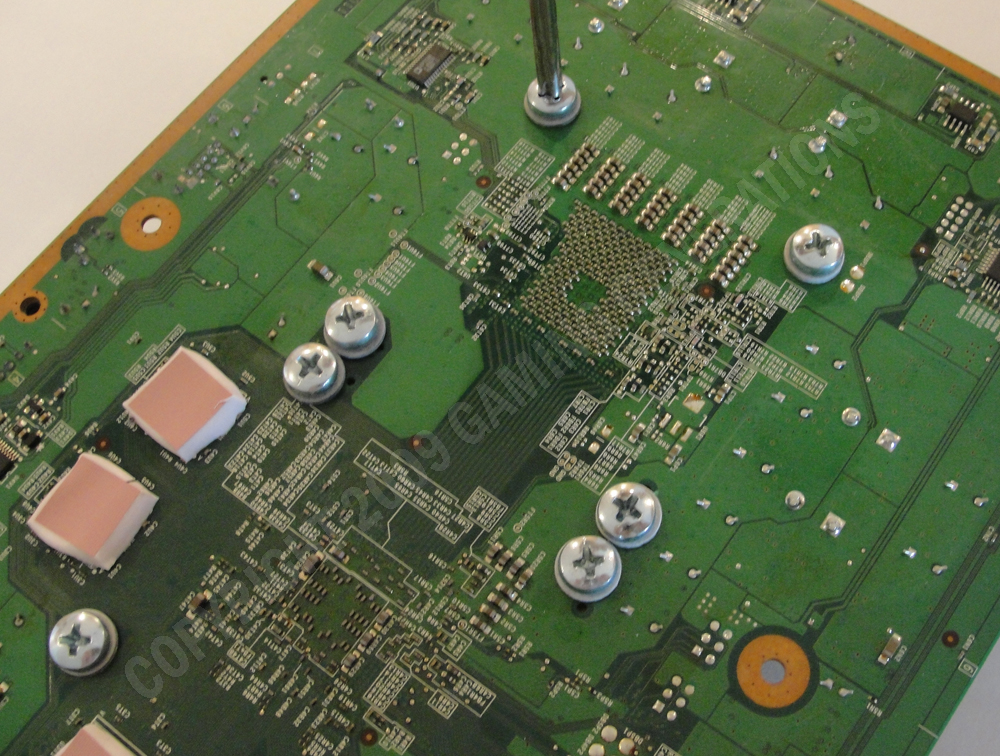

View Original

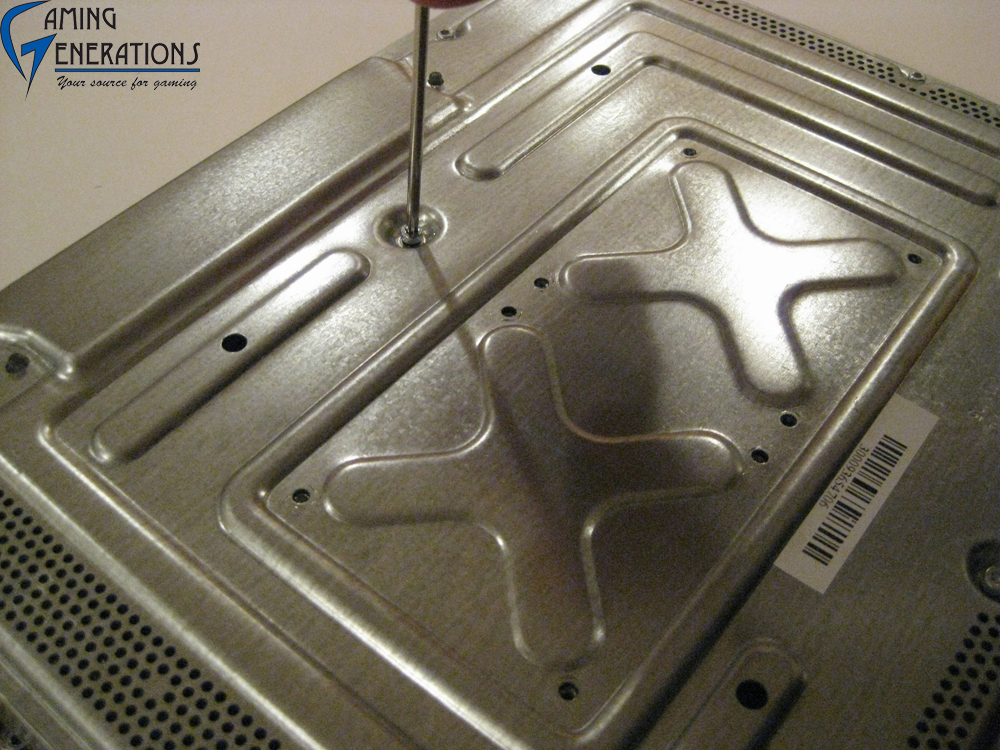

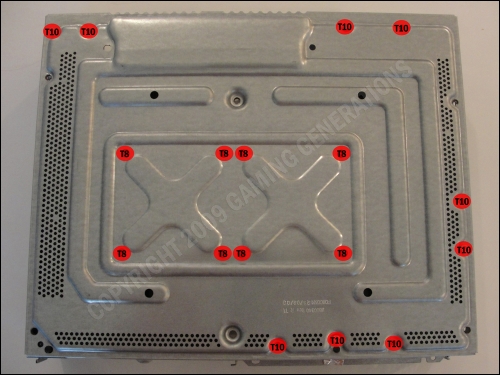

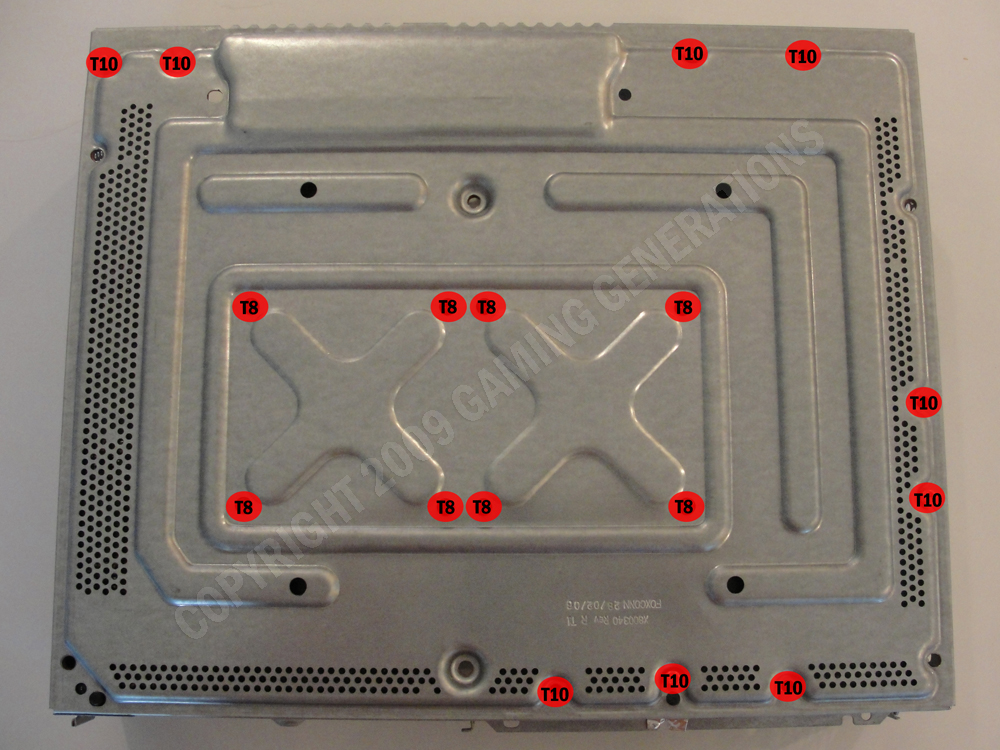

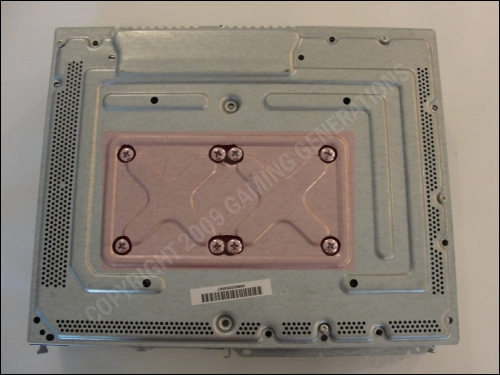

28) Flip over the xbox 360 and take out the remaining torx screws shown below.
View Original

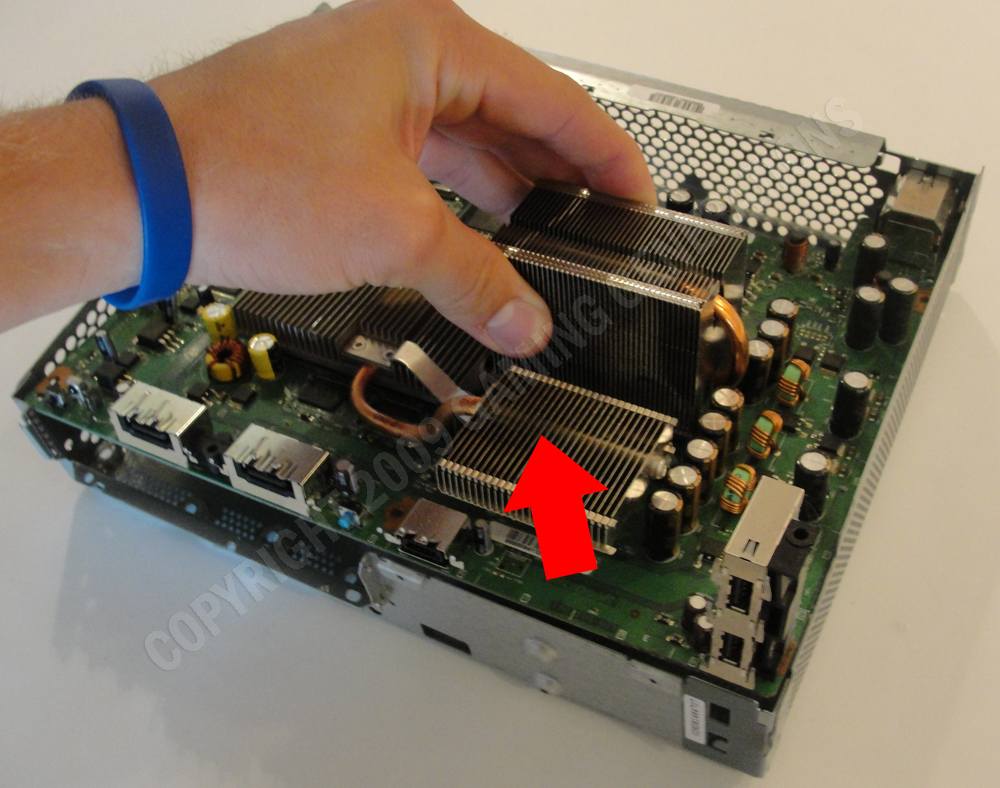

30) Pull out the motherboard.
View Original

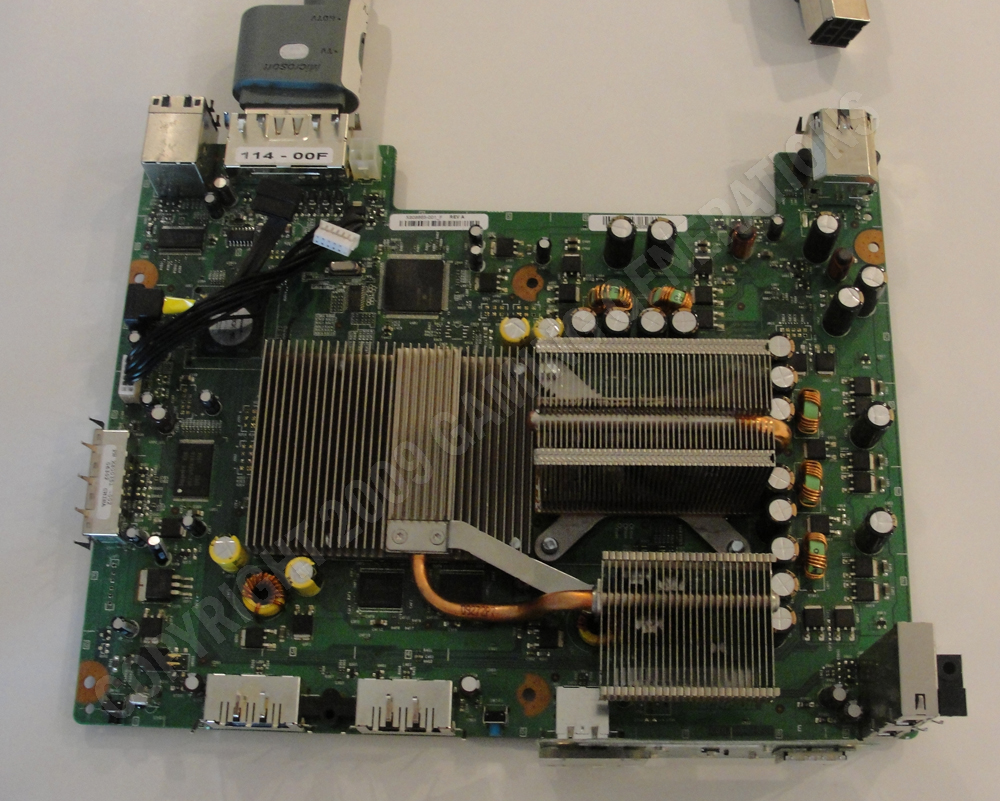

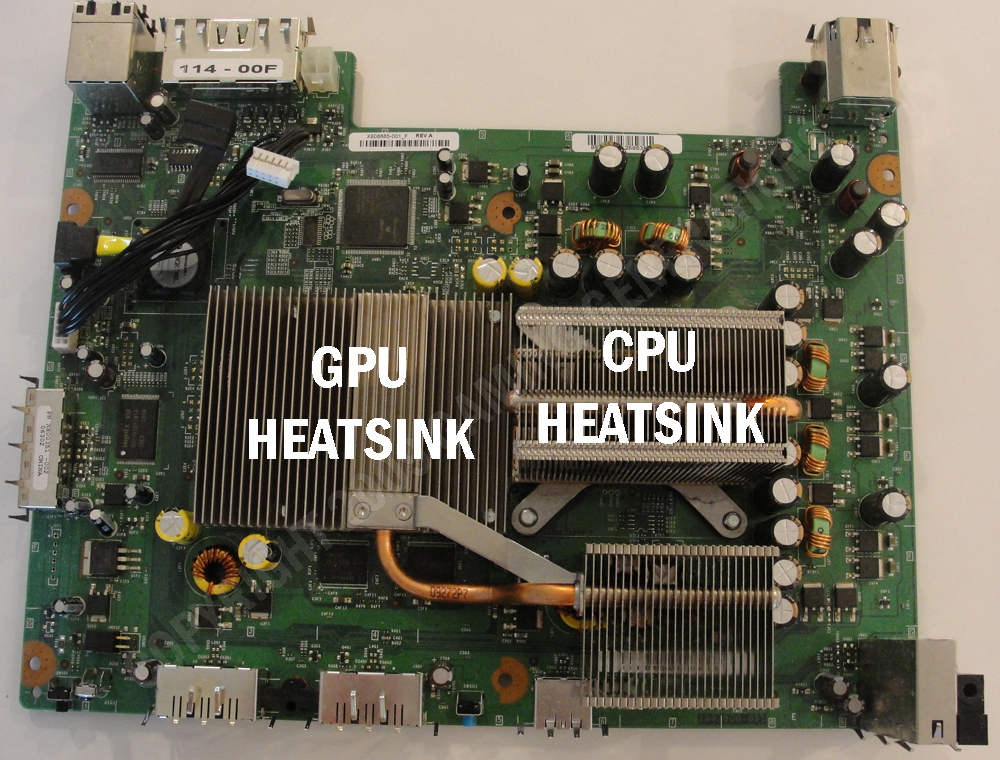

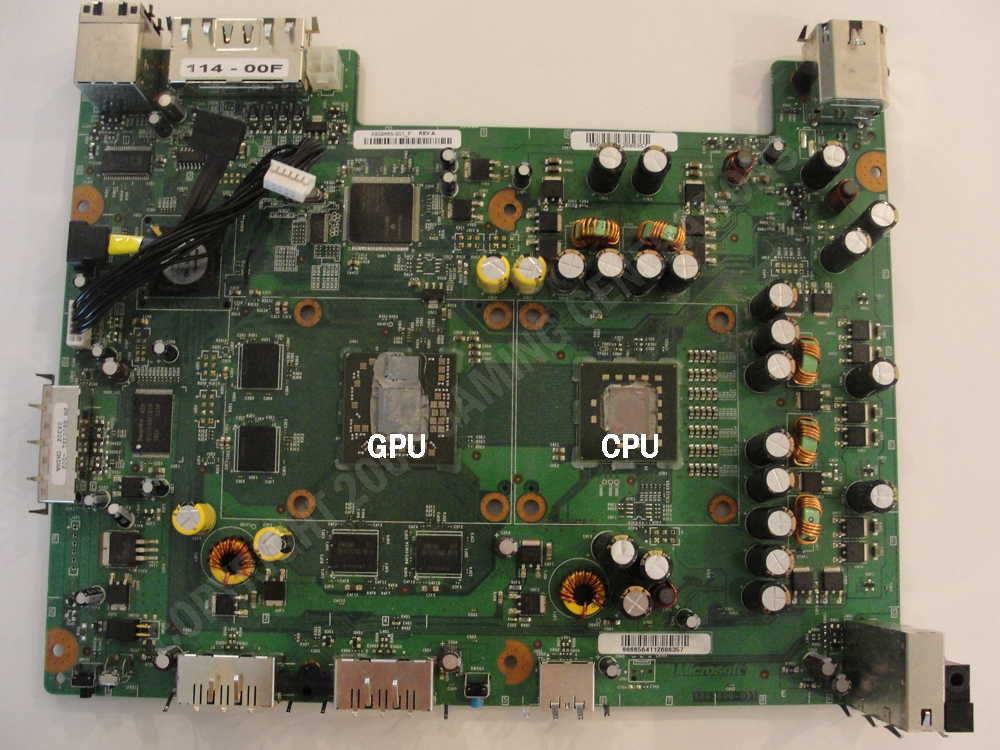

31) Your motherboard should now be releasesed from the chassis. Below the GPU & CPU heatsinks are labeled.
View Original

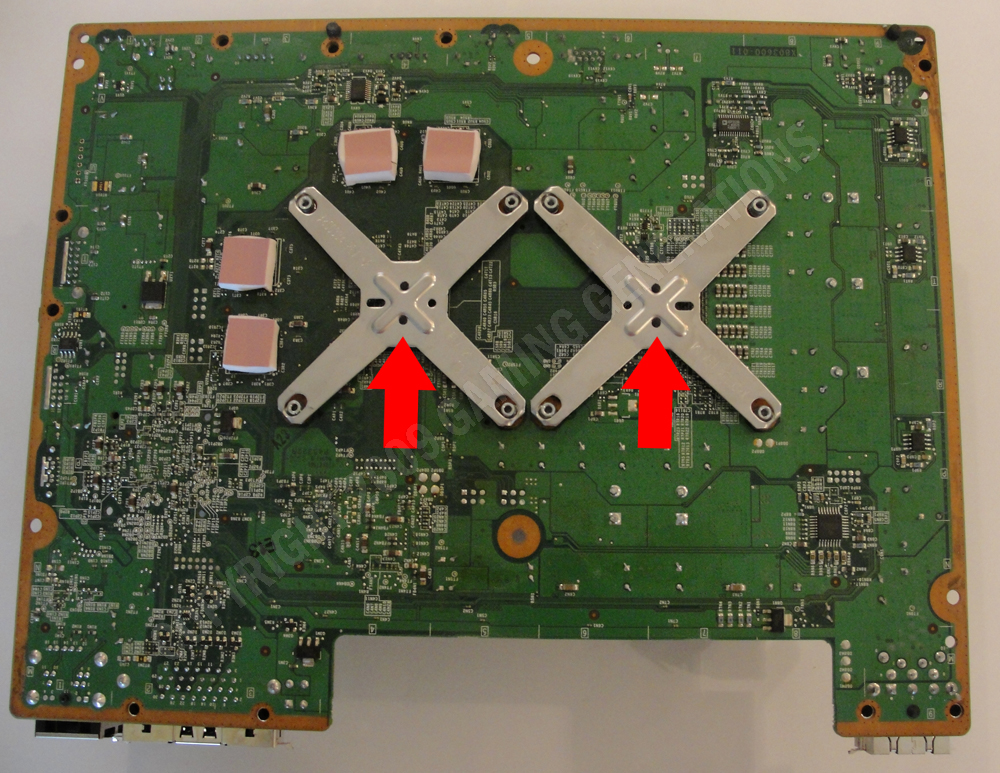

32) Flip the motherboard over. You can now see the famous "X-Clamps". The X-Clamps hold down the CPU & GPU heatsinks.
View Original

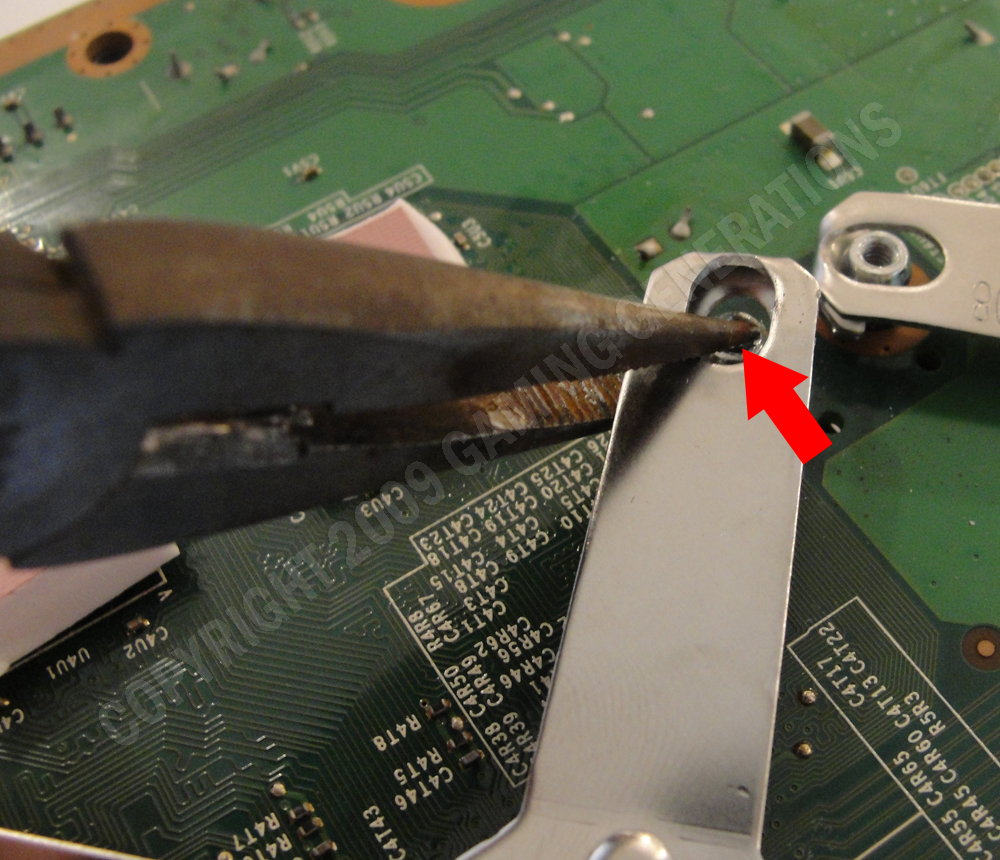

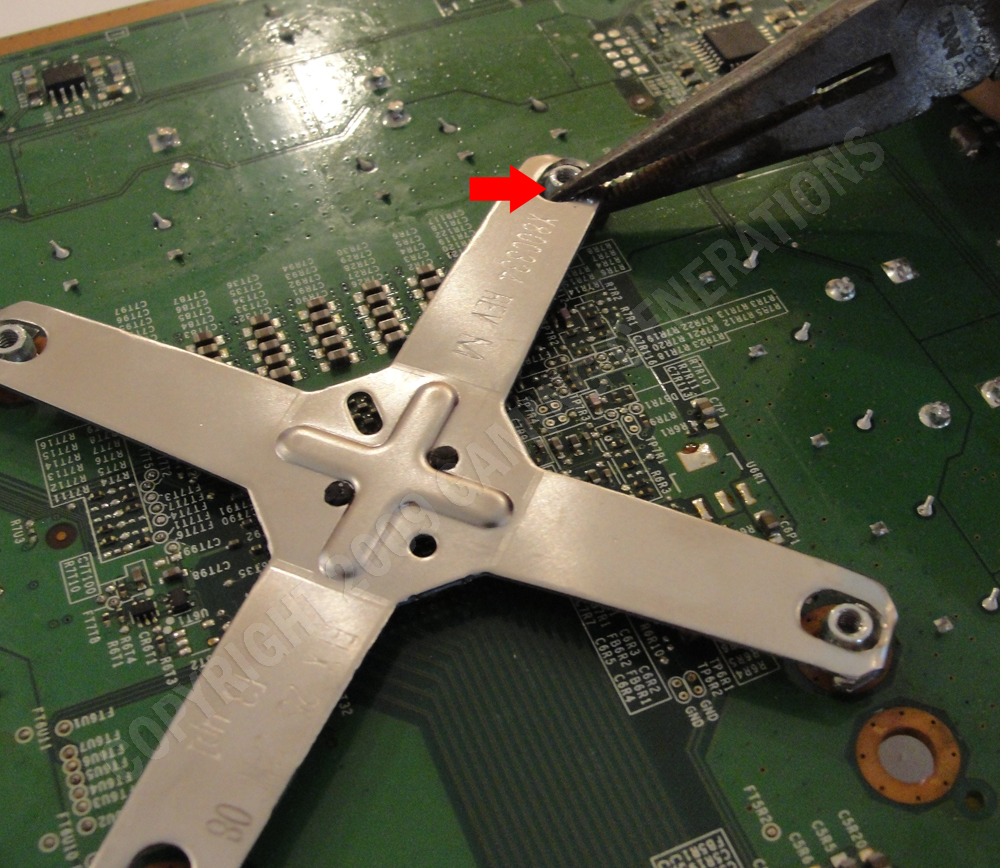

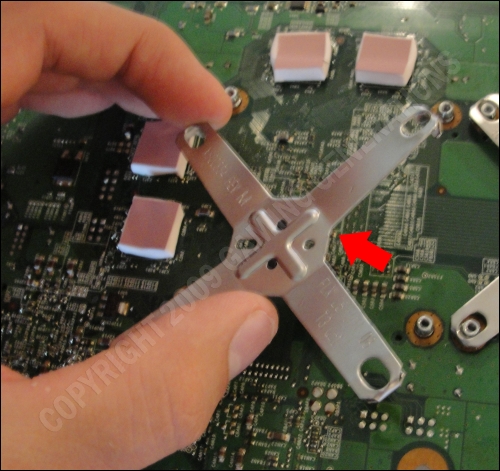

33) Using your pliers, gently pull up on the corners of the X-Clamps. Be careful not to scratch the board when doing this. Below I am taking off the X-Clamp holding down the GPU heatsink.
View Original

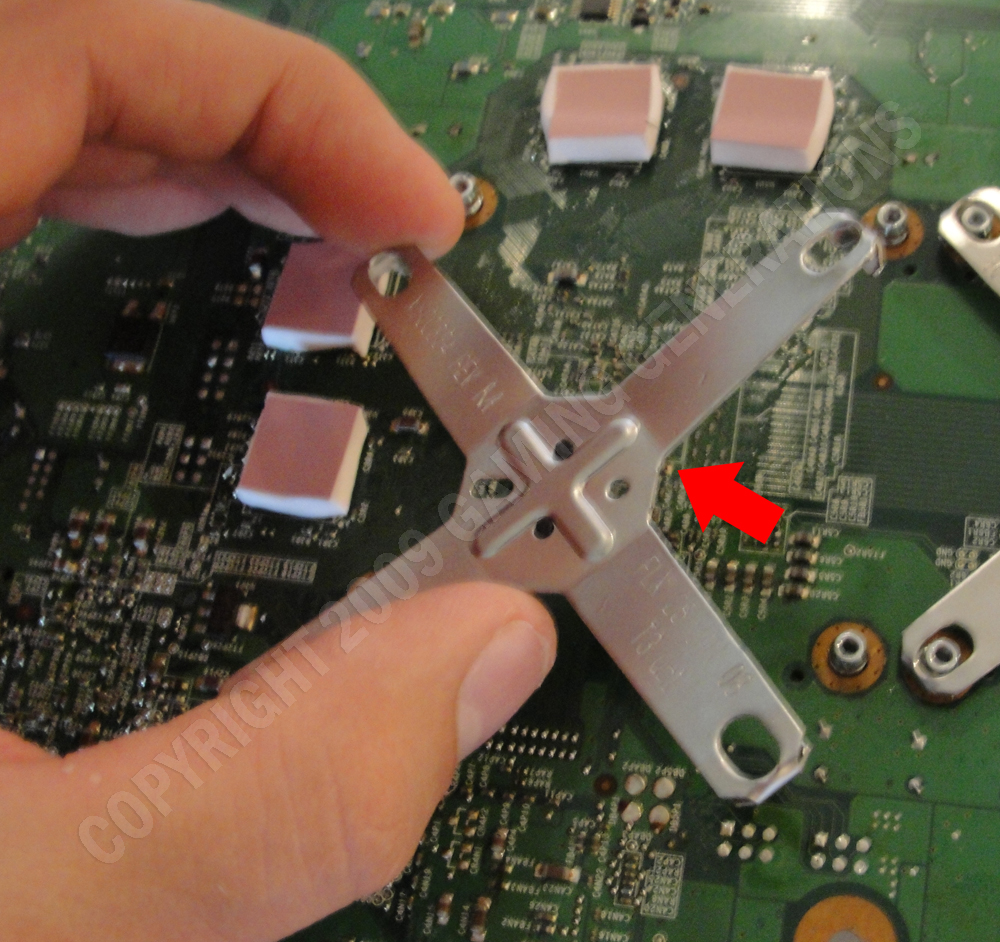

34) Remove the X-Clamp.
View Original

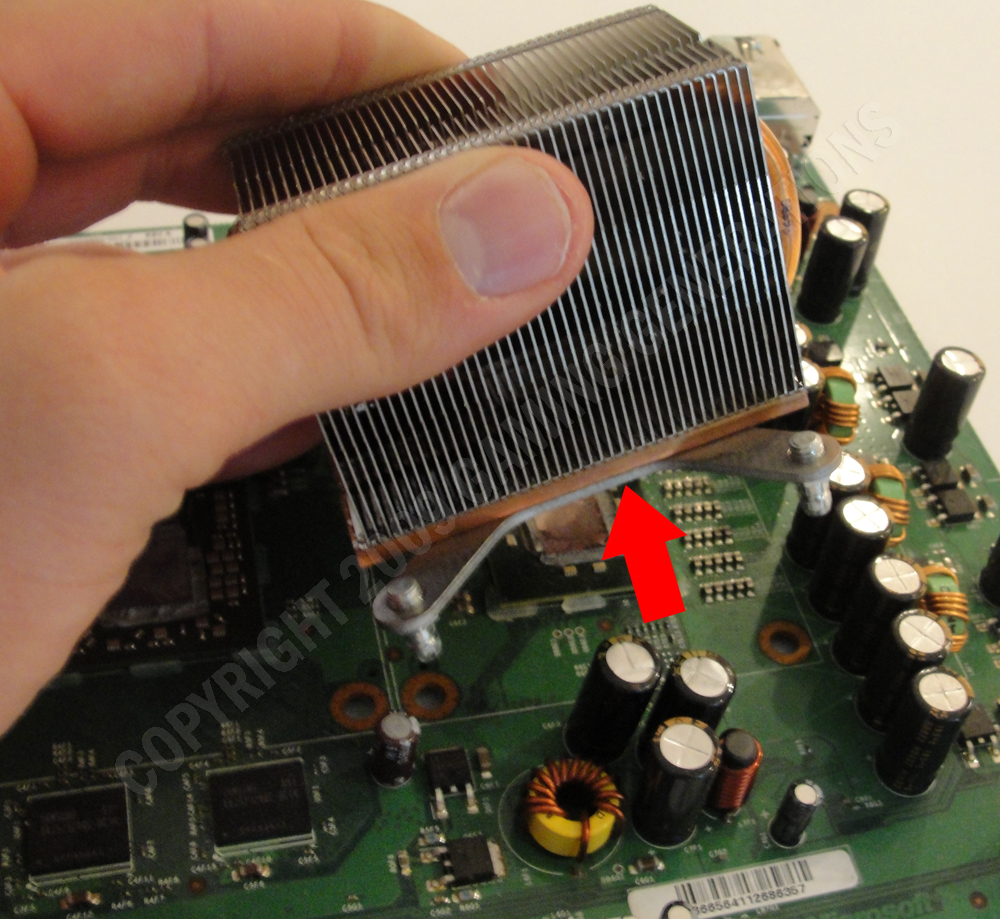

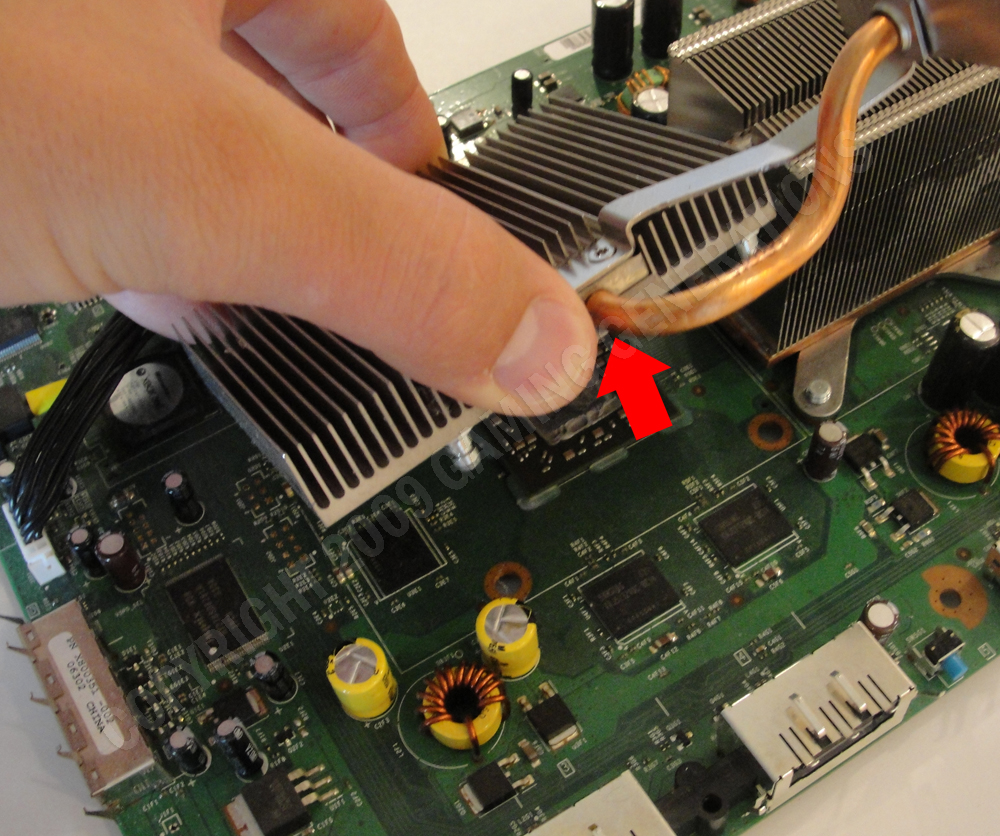

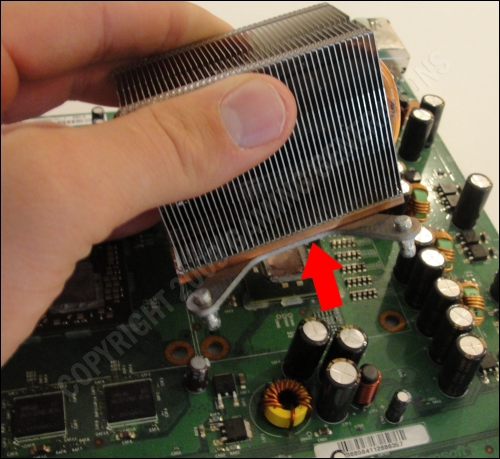

35) You will now be able to completely remove the GPU heatsink.
View Original
36) Now take off the X-Clamp holding down the CPU heatsink.
View Original
37) Remove the GPU heatsink.
View Original

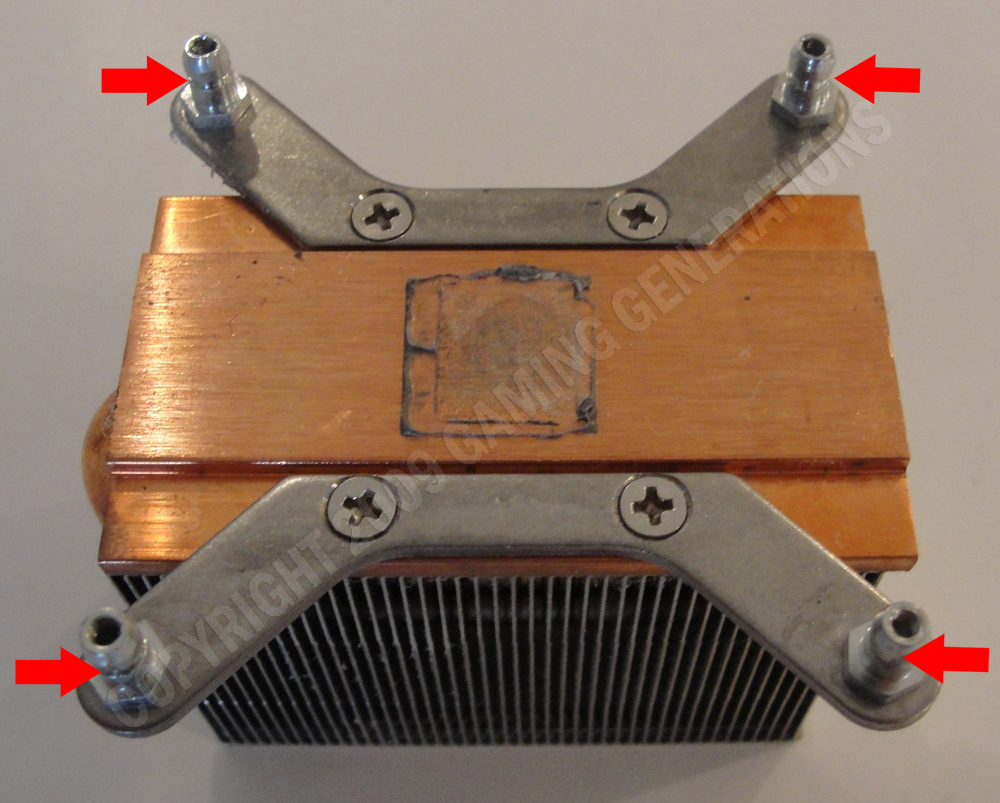

38) Twist off the 4 pieces on the CPU heatsink shown below.
View Original

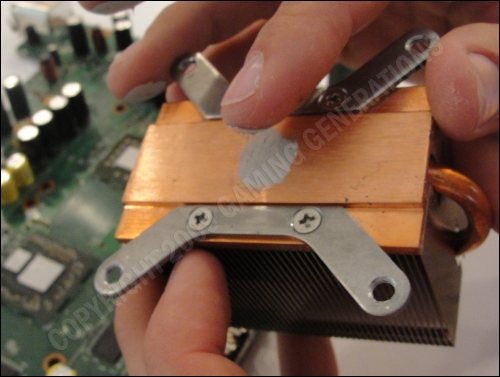

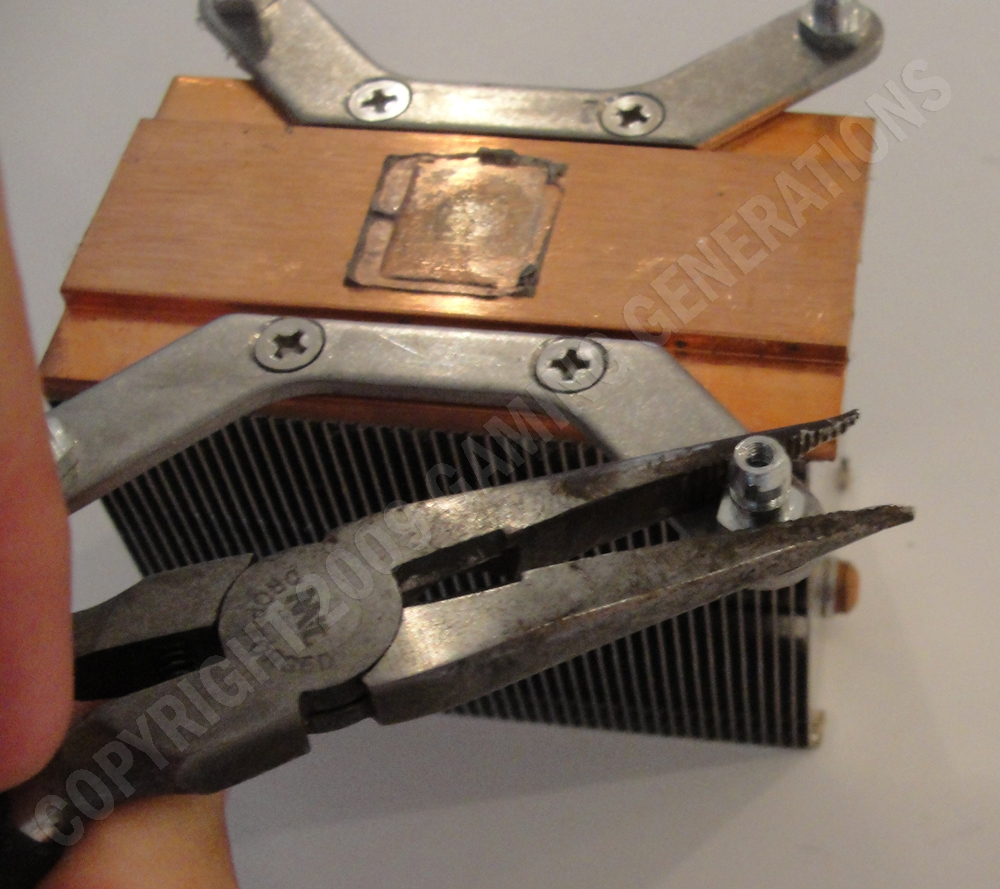

39) You can easily accomplish this by twisting them off with a pliers or something similar. Now twist off the 4 pieces on the CPU heatsink as well!
View Original

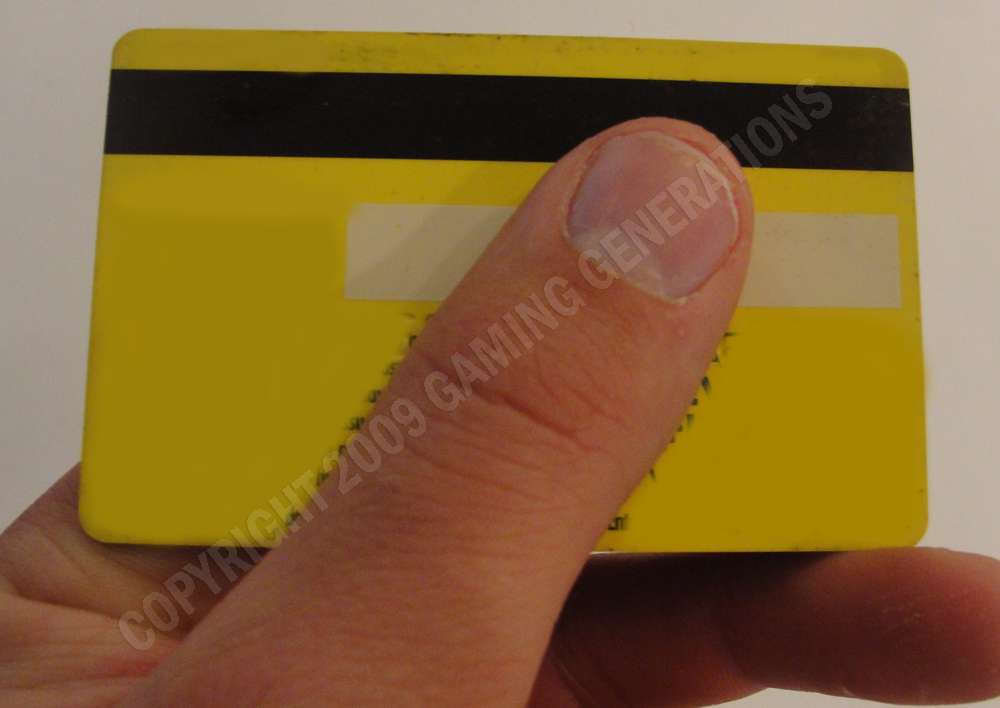

40) PLEASE NOTE: Steps 40-60 are completely optional! Only do these steps if you are applying new thermal paste. Grab an old credit card.
View Original

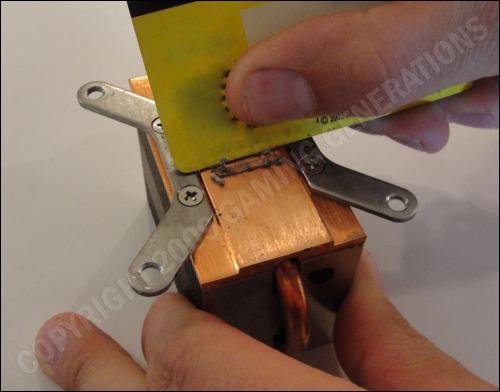

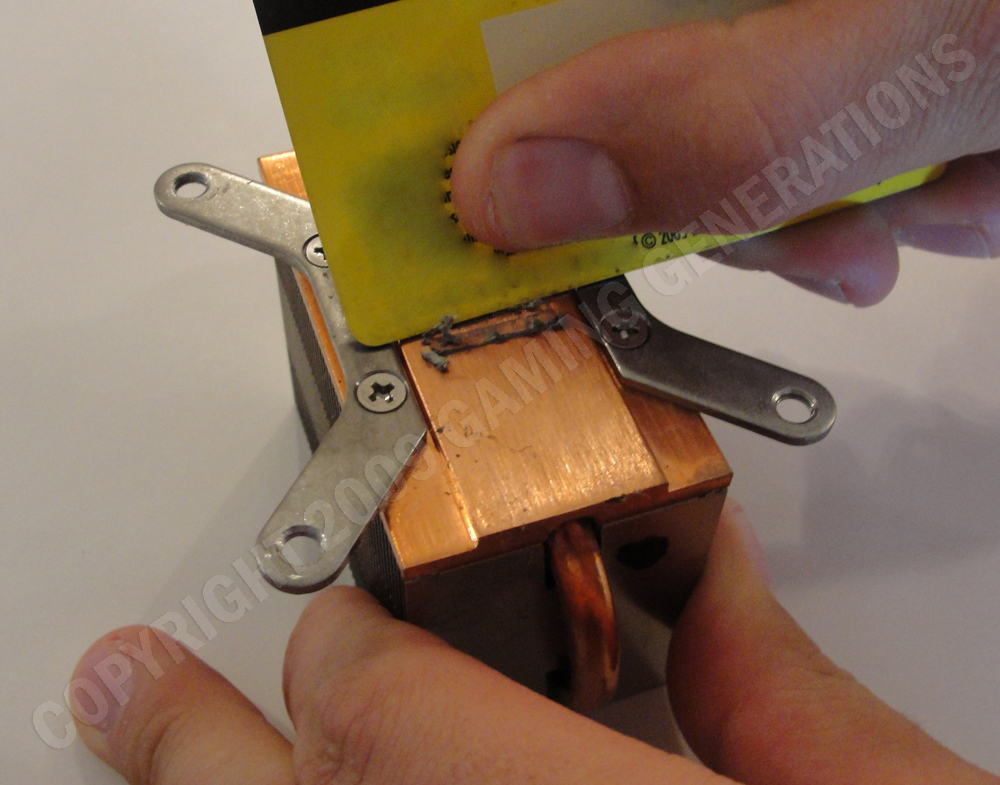

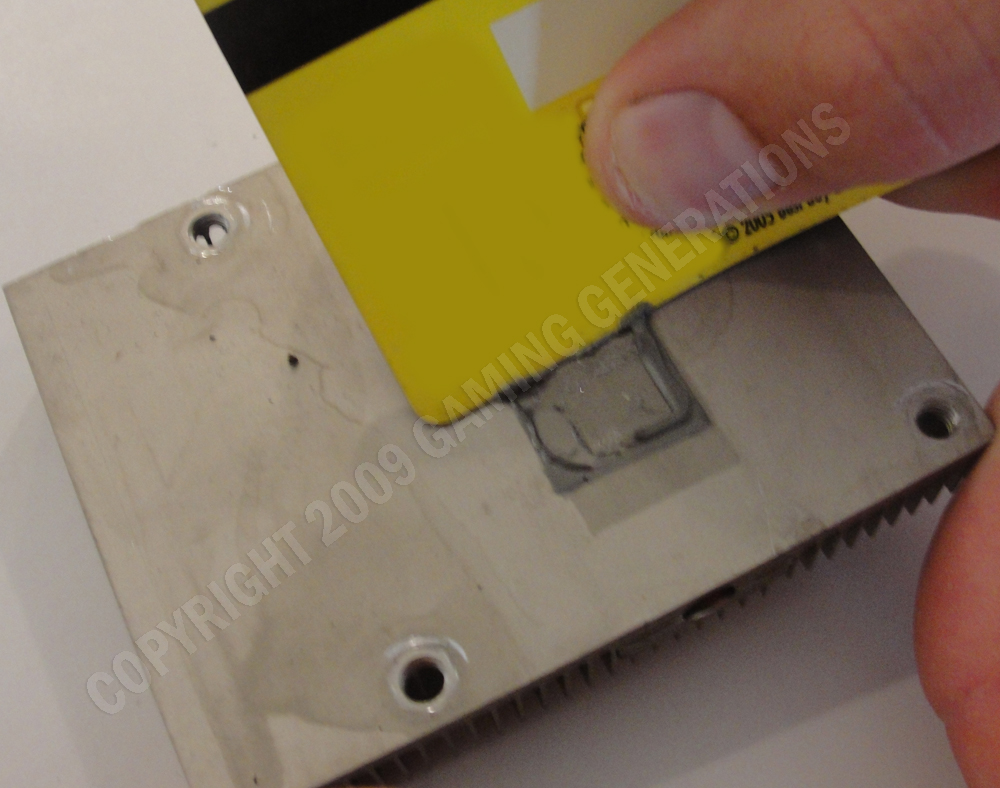

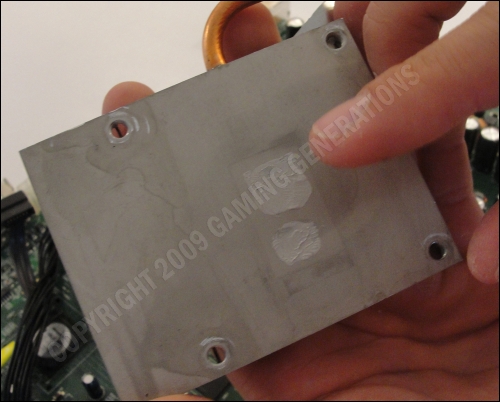

41) Take off the thermal paste using your card.
View Original
42) You can easily finish taking off the thermal paste using a Q-tip and goof off or something similar.
View Original

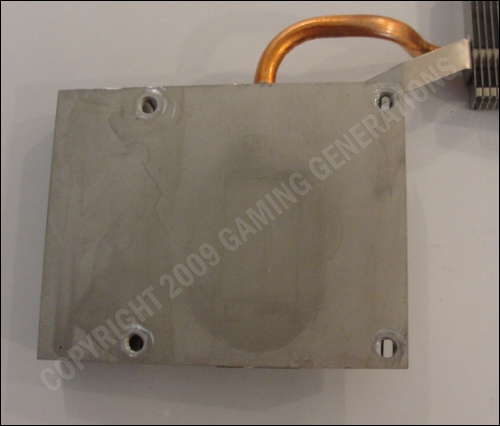

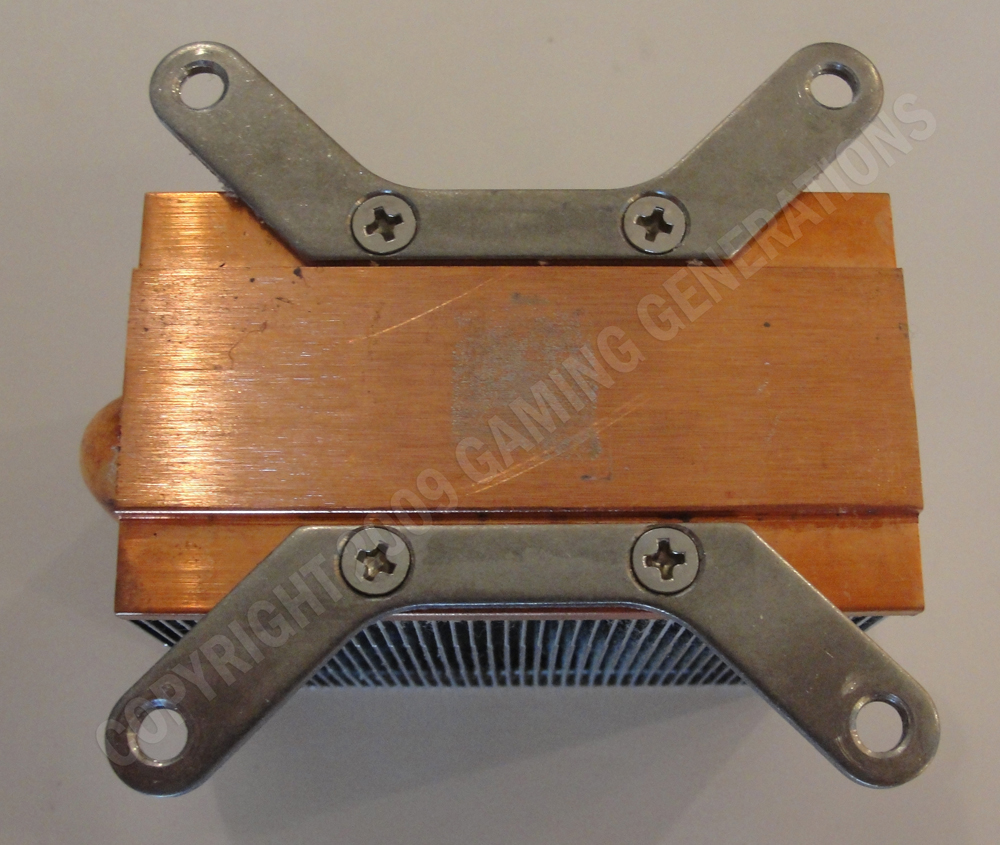

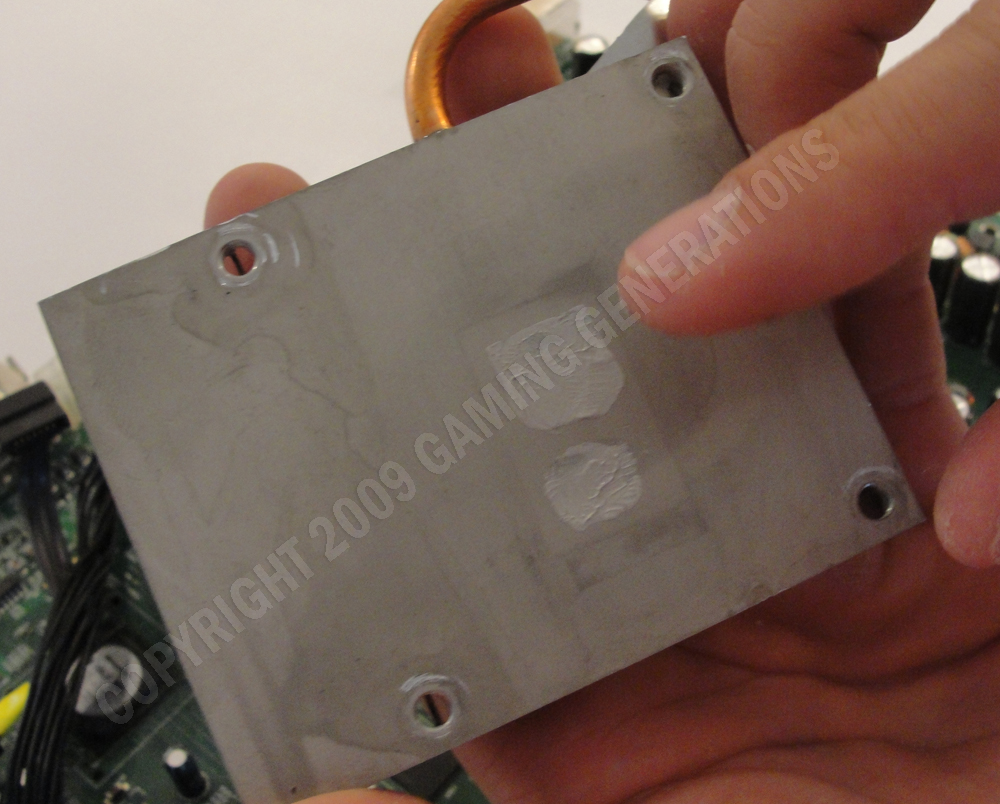

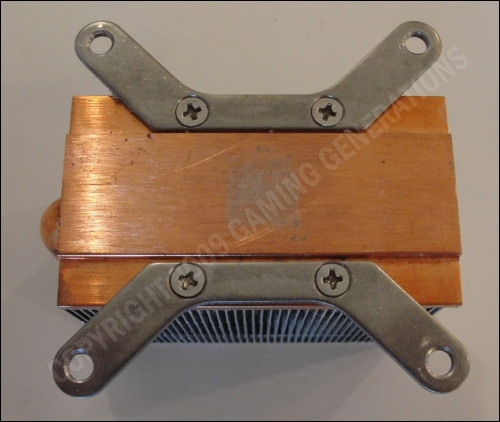

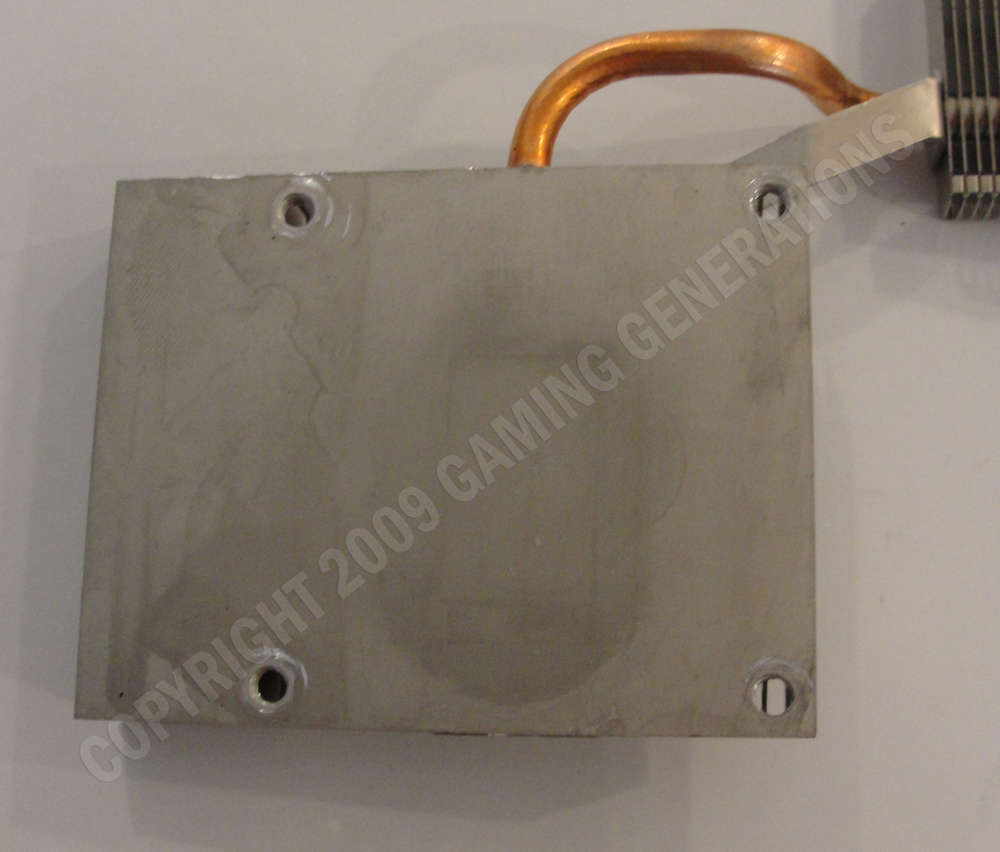

43) Below is a good example of how the heatsink should look after the old thermal paste is completely removed.
View Original
44) Now it's time to do the same thing to the GPU heatsink.
View Original

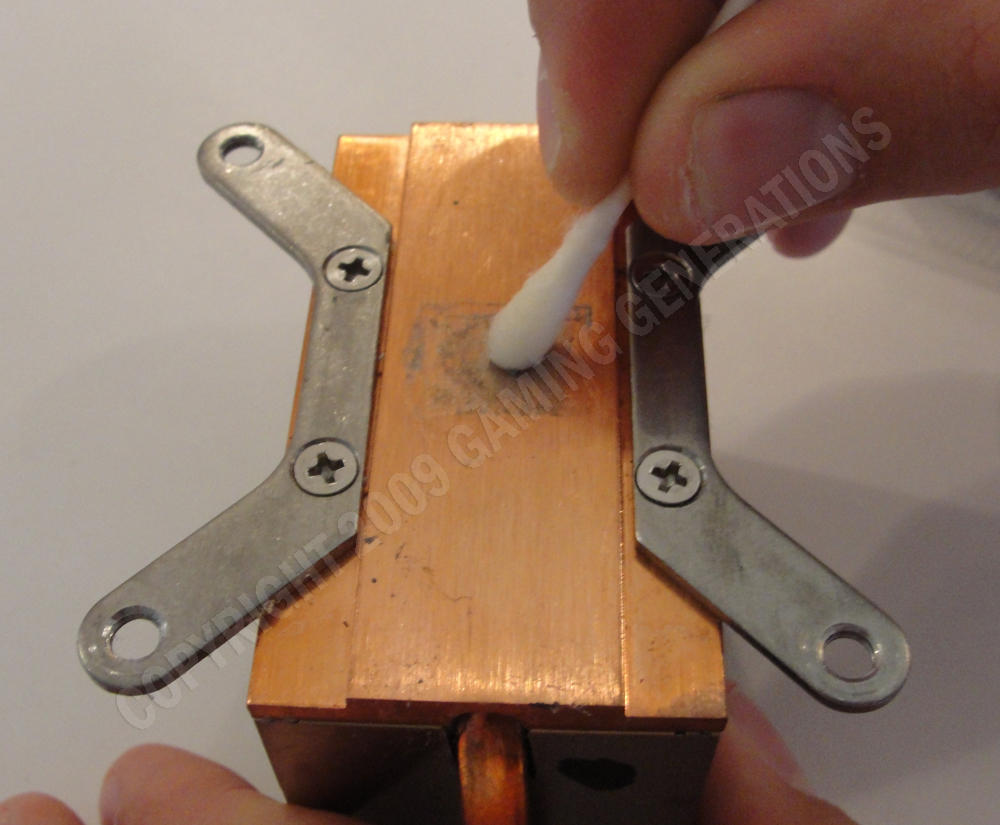

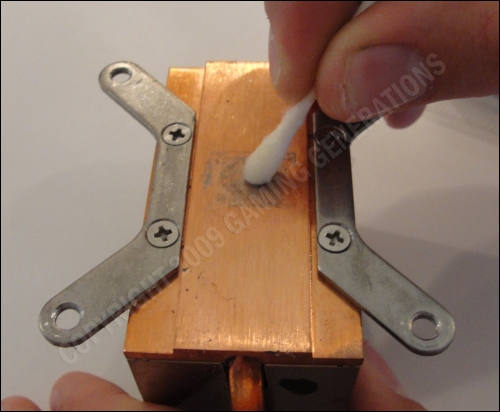

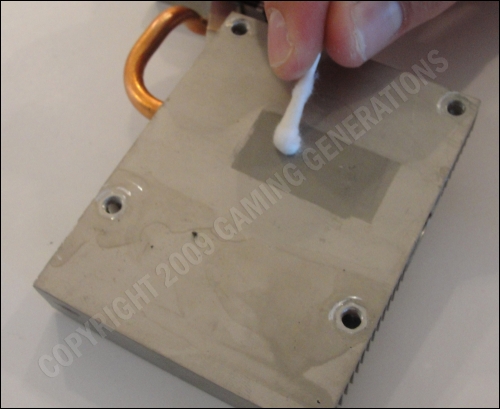

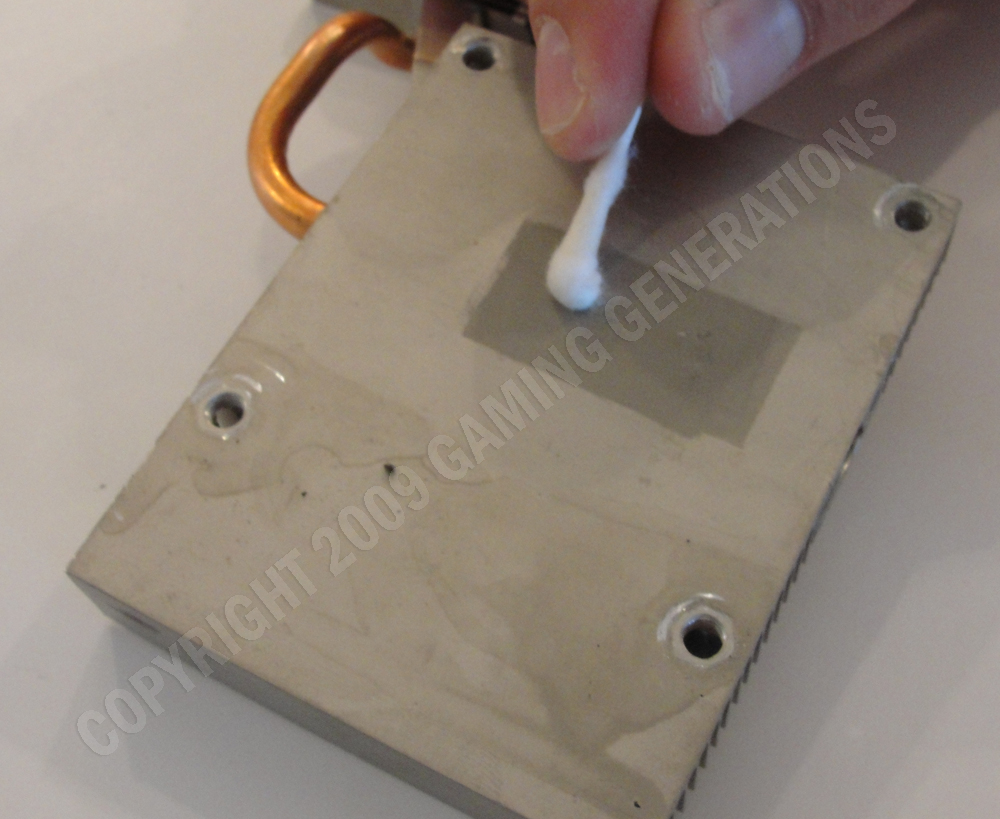

45) Using Q-tip and goof off.
View Original
46) Heatsink is clean.
View Original
47) Now it's time to clean the old thermal paste off of the GPU & CPU chips.
View Original

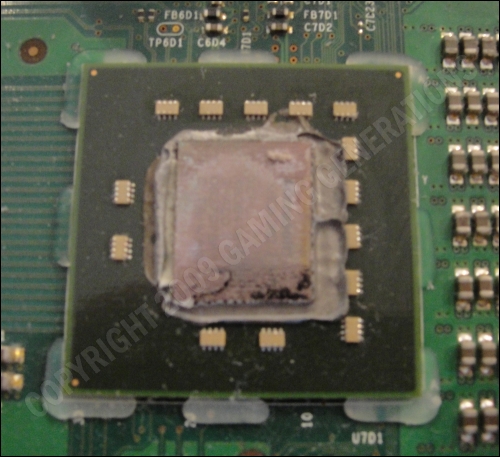

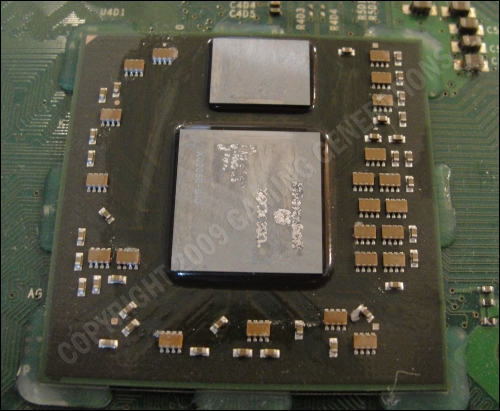

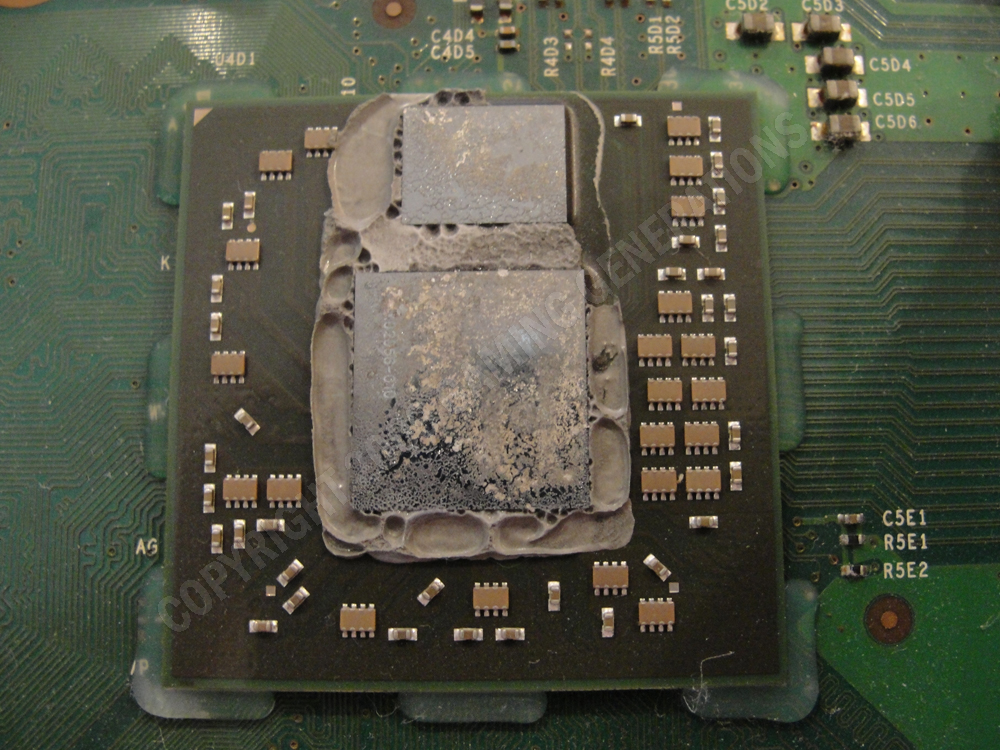

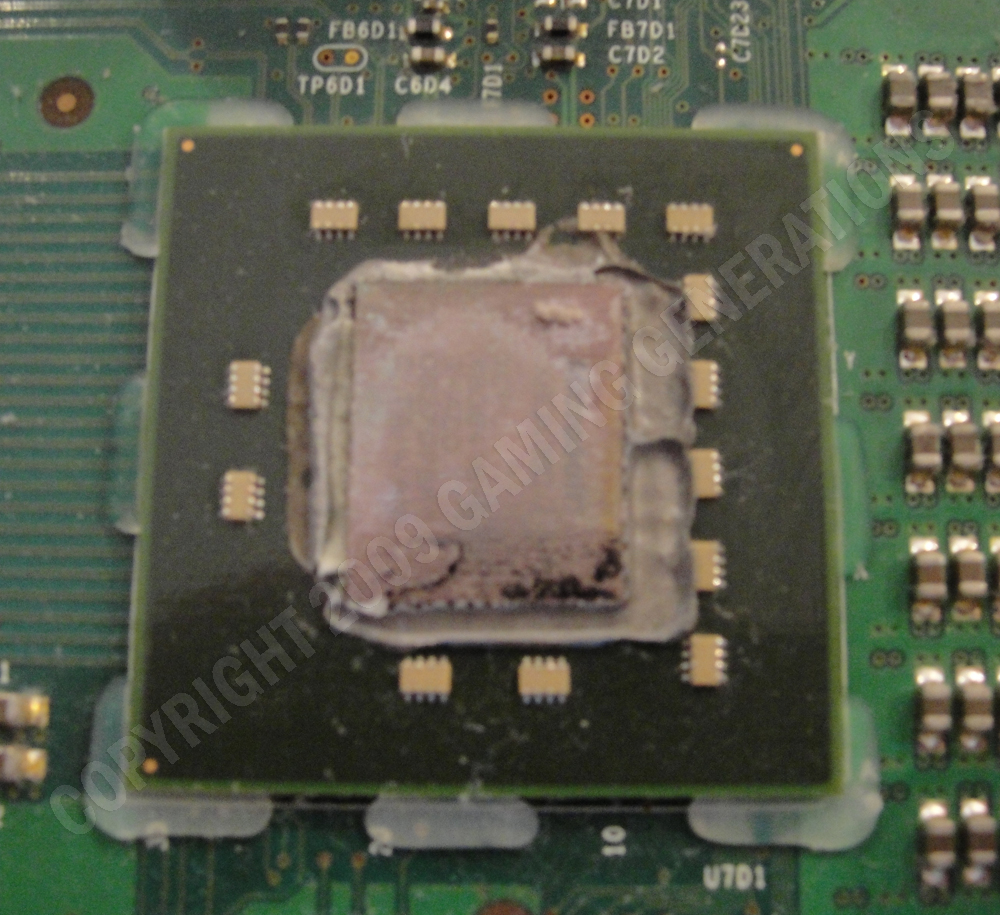

48) The old thermal paste has dried away, let's clean it up.
View Original

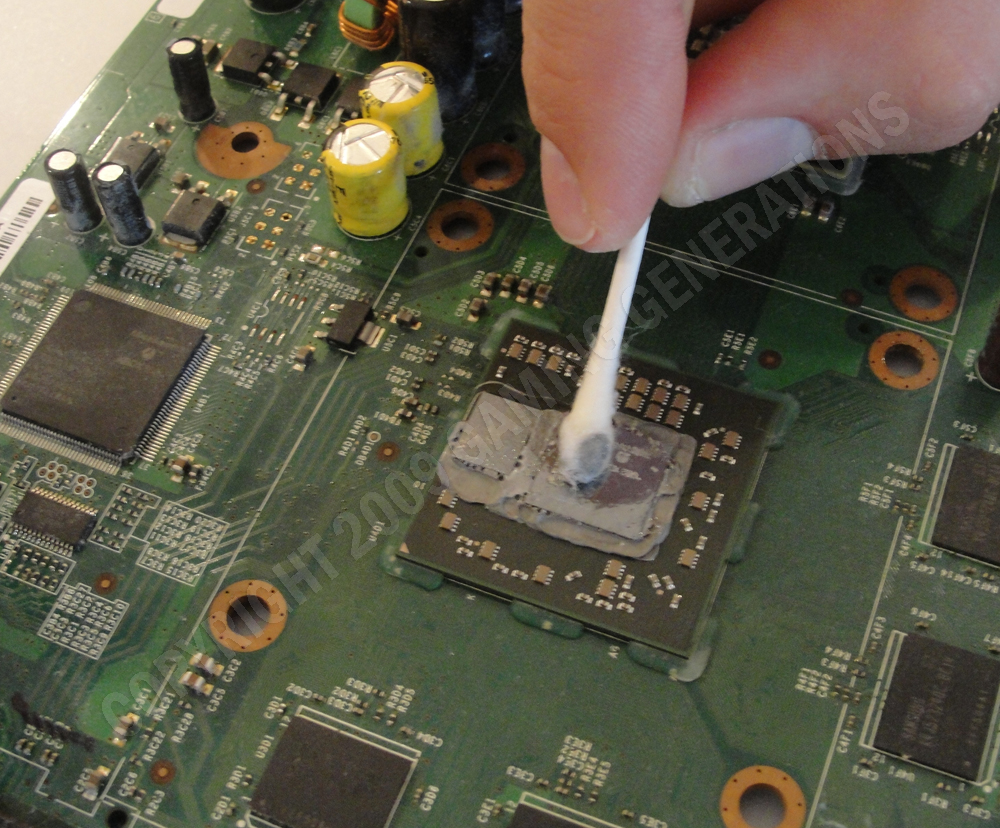

49) Using your Q-tip and Goof Off, wipe all of the thermal paste away.
View Original
50) The GPU should now be clean.
View Original
51) Onto the CPU.
View Original

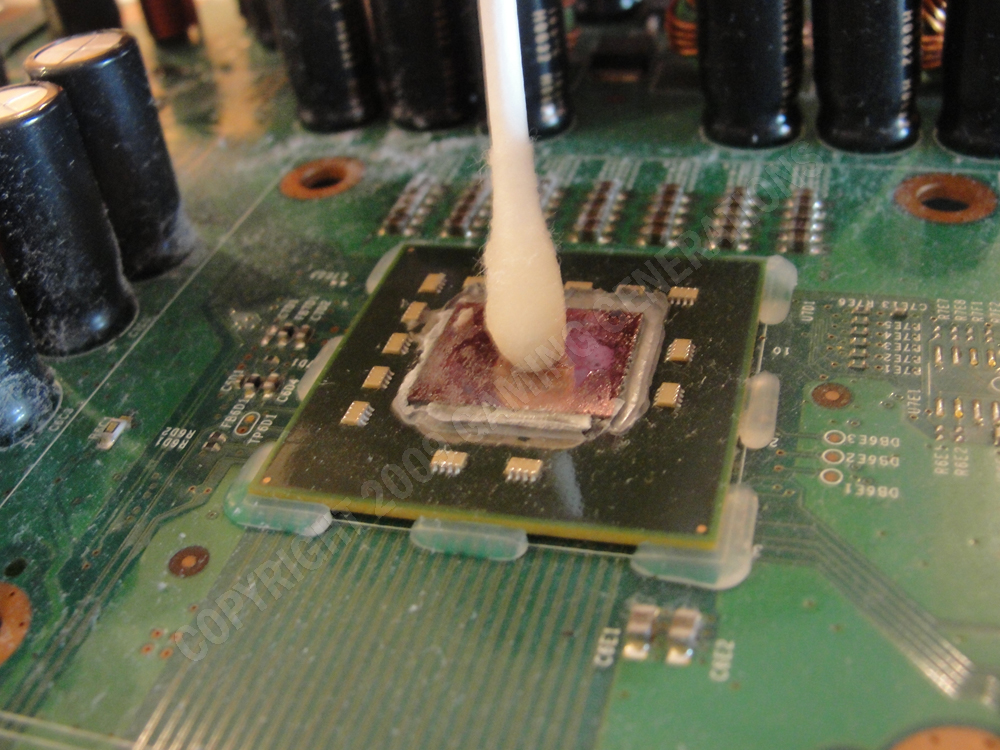

52) Q-tip and Goof Off.
View Original

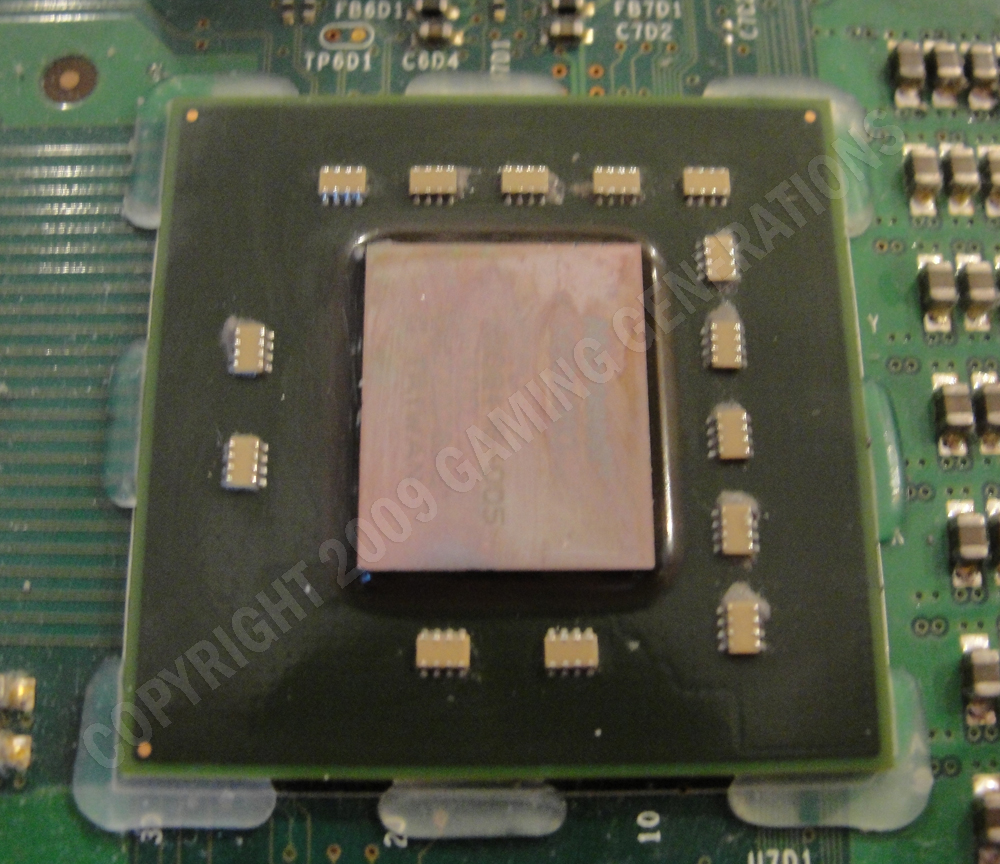

53) The CPU should now be clean.
View Original

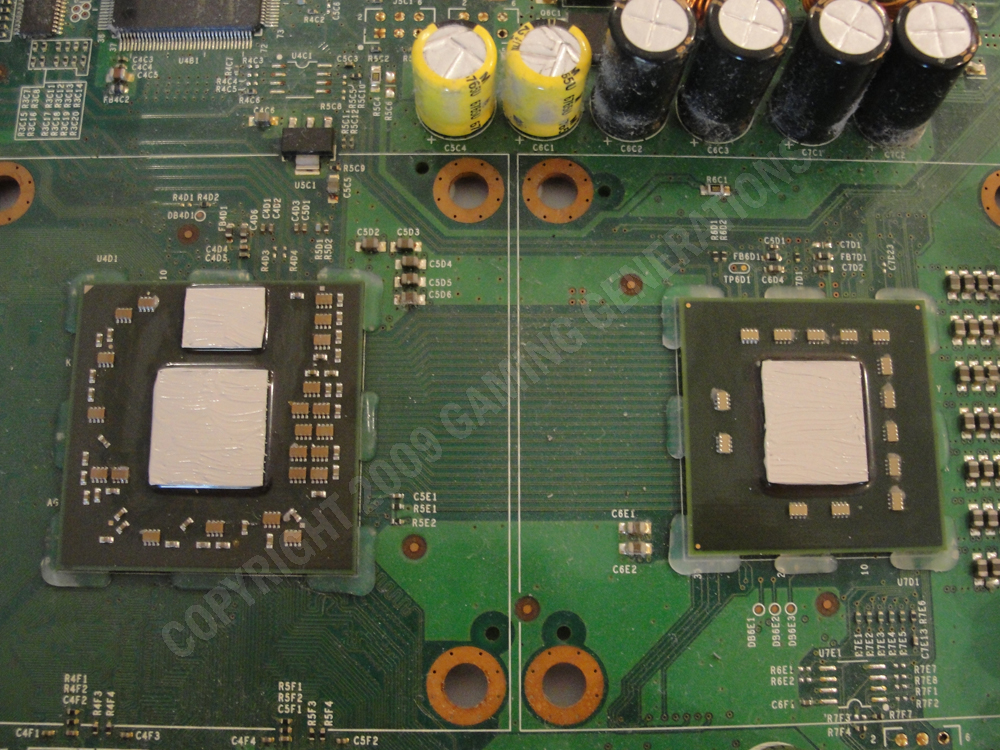

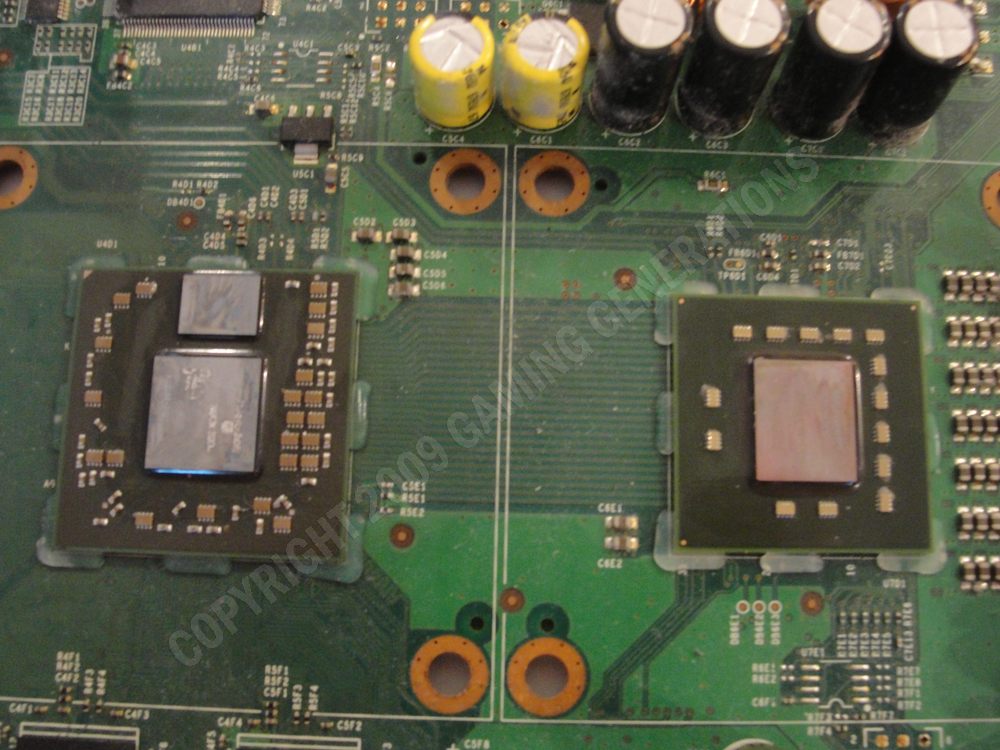

54) Both chips are now clean and ready for new thermal paste.
View Original
55) Re-applying thermal paste is very easy to do.
View Original
56)
View Original

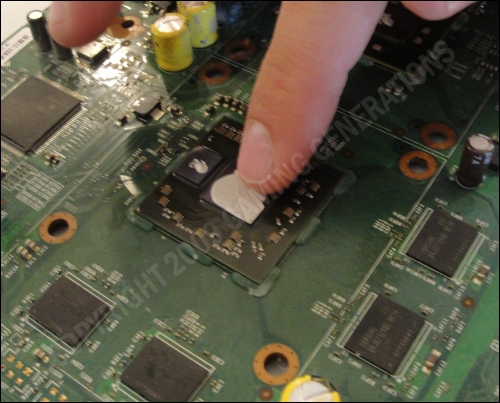

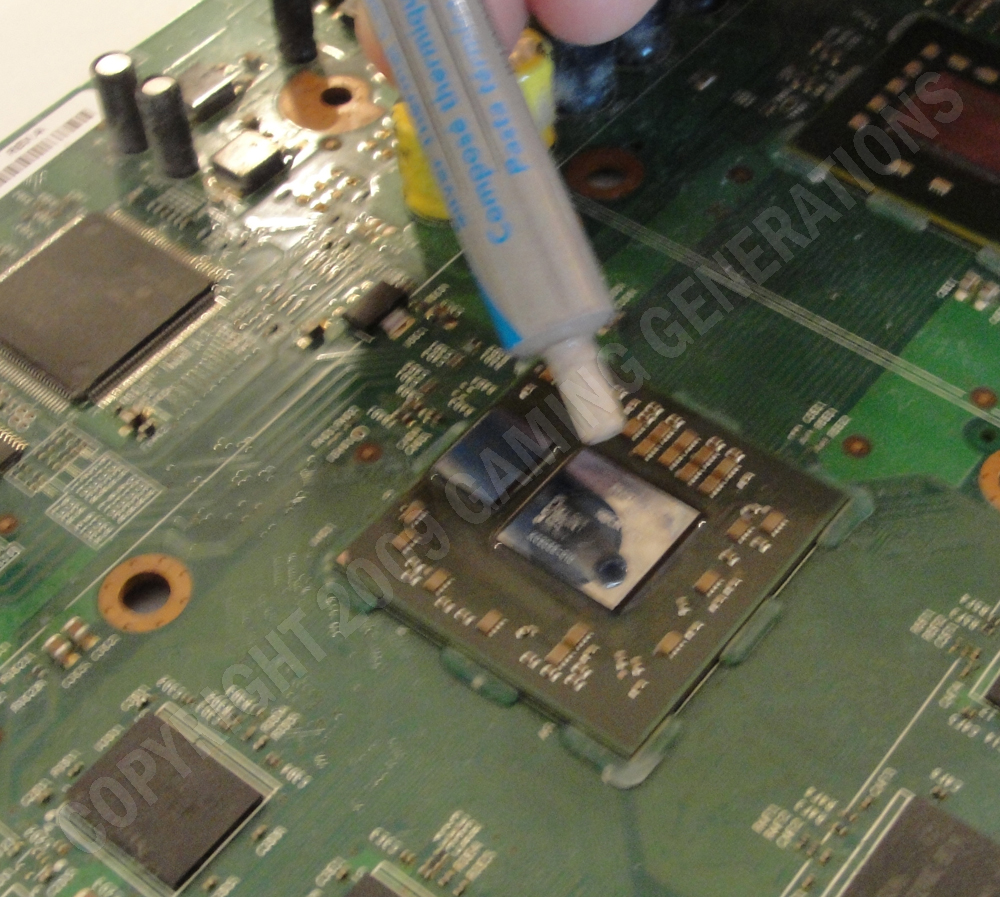

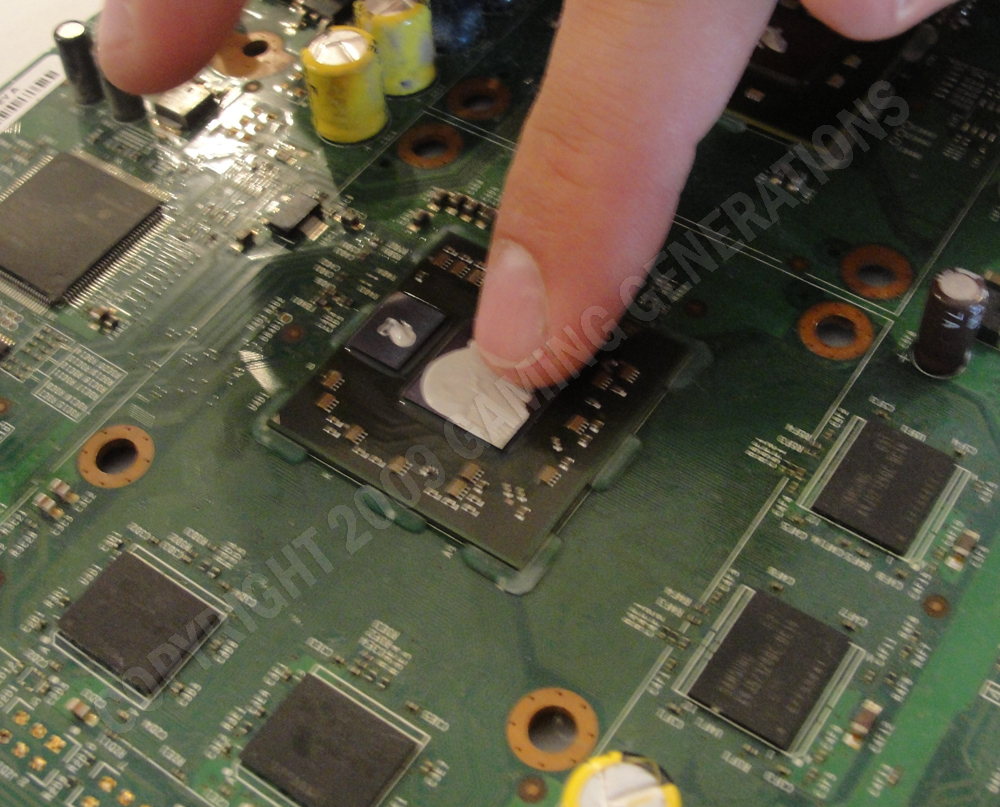

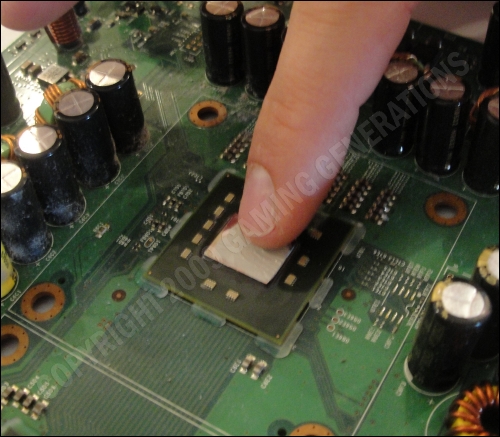

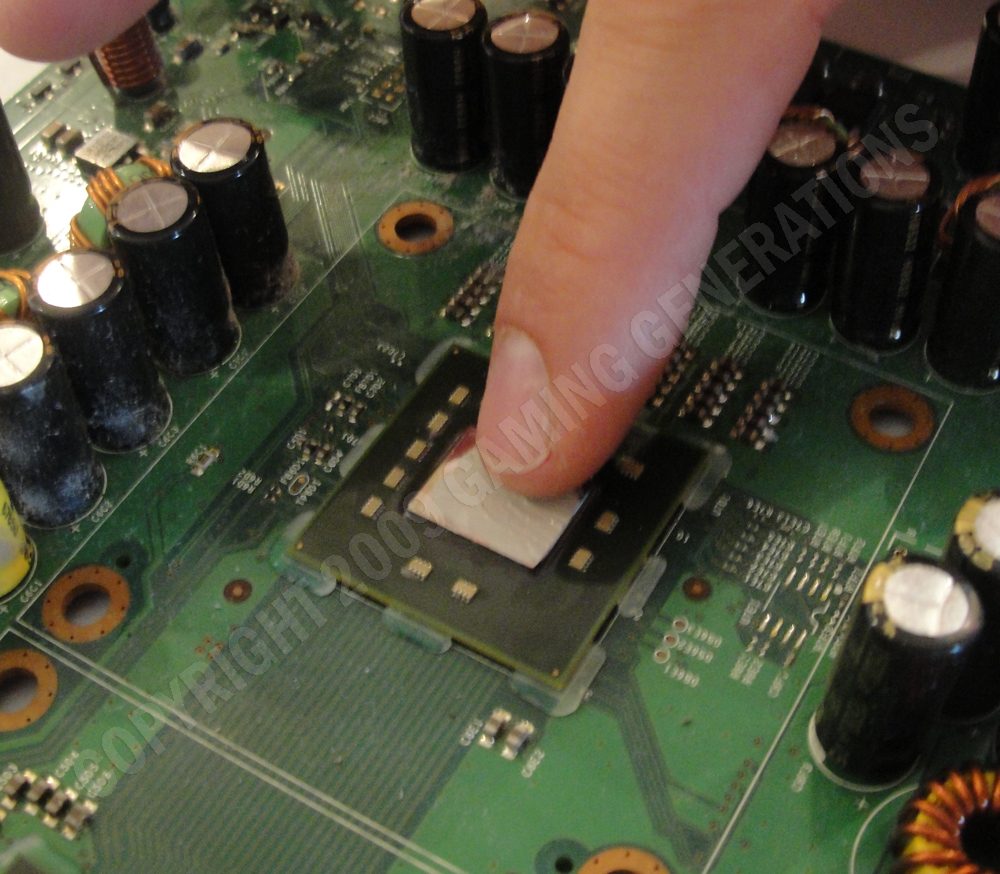

57) Put a small amount on the chip and rub it on with your finger. DO NOT cake it on. A light layer is perfect.
View Original
58) The thermal paste you applied should look like below.
View Original

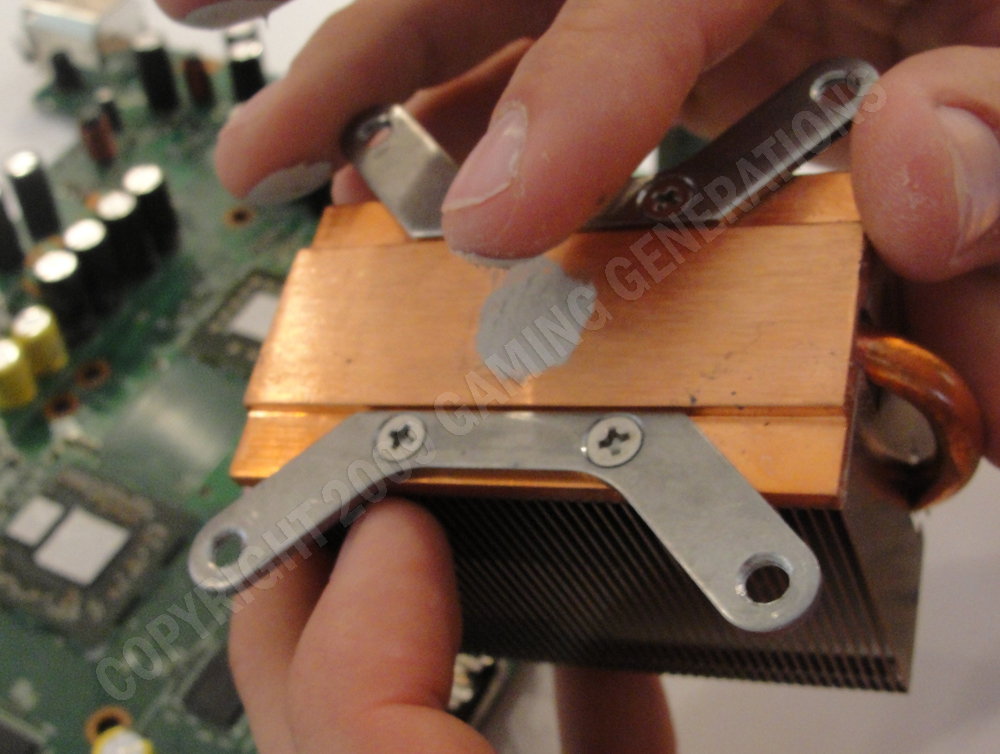

59) Put a thin layer on the GPU heatsink.
View Original
60) Put a thin layer on the CPU heatsink.
View Original

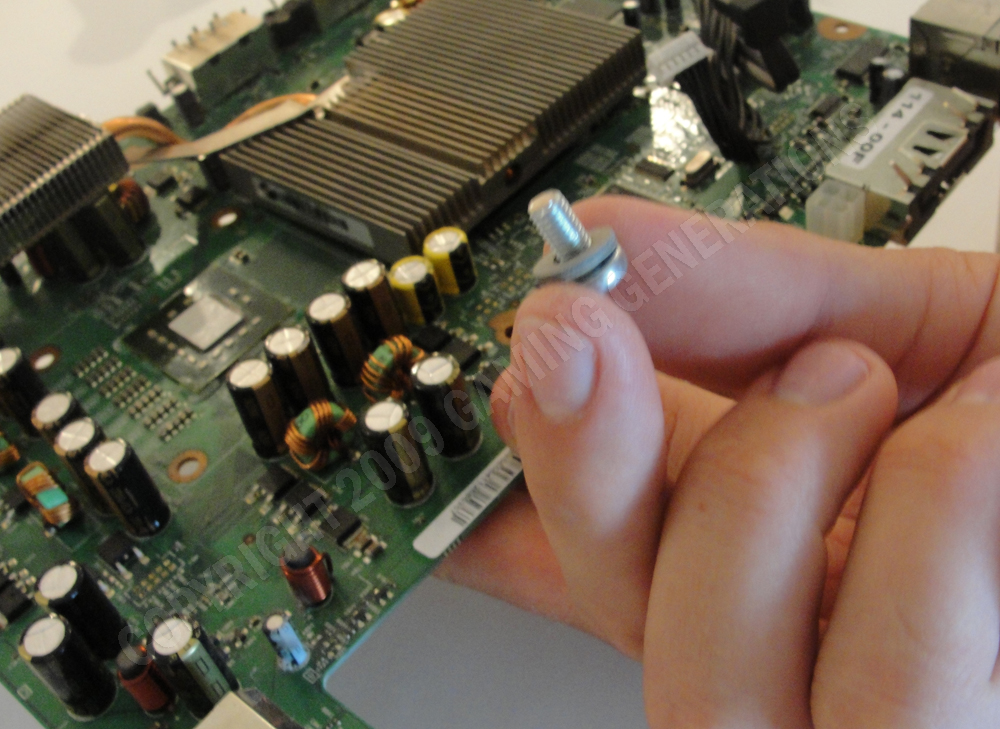

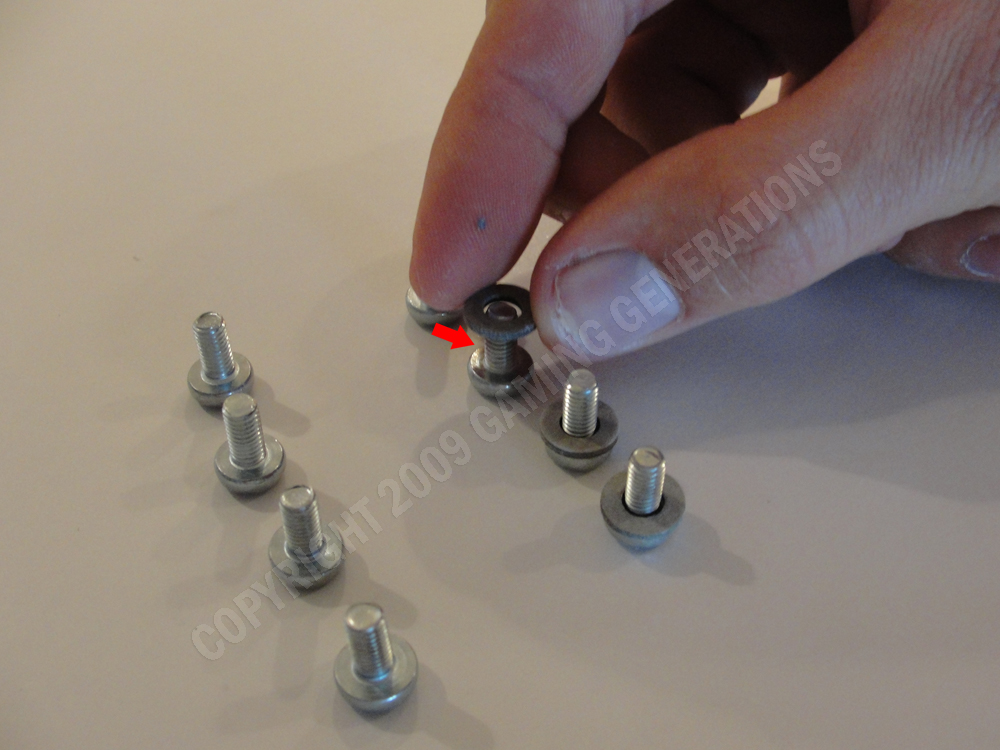

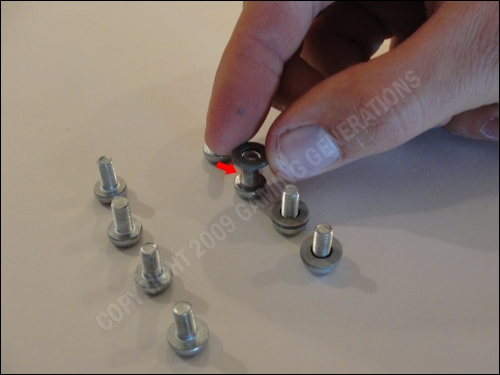

61) Grab your 8 screws. Put 1 washer on each.
View Original

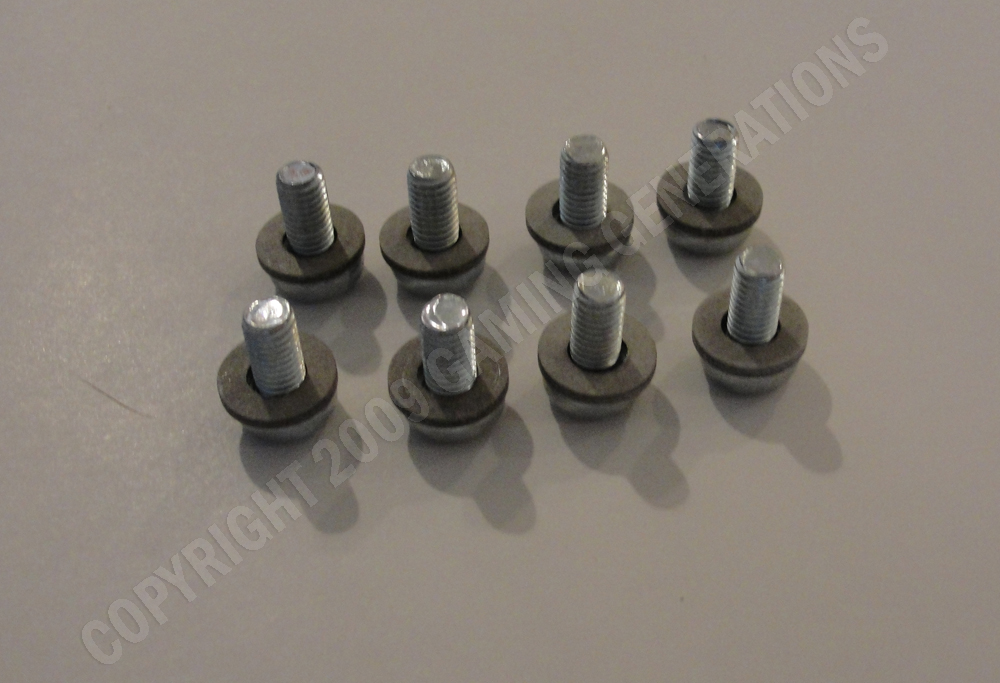

62) Eight washers on eight screws.
View Original

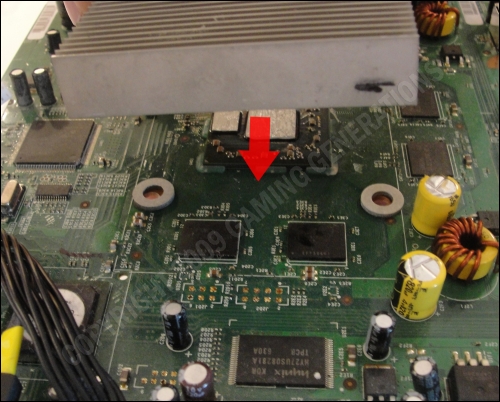

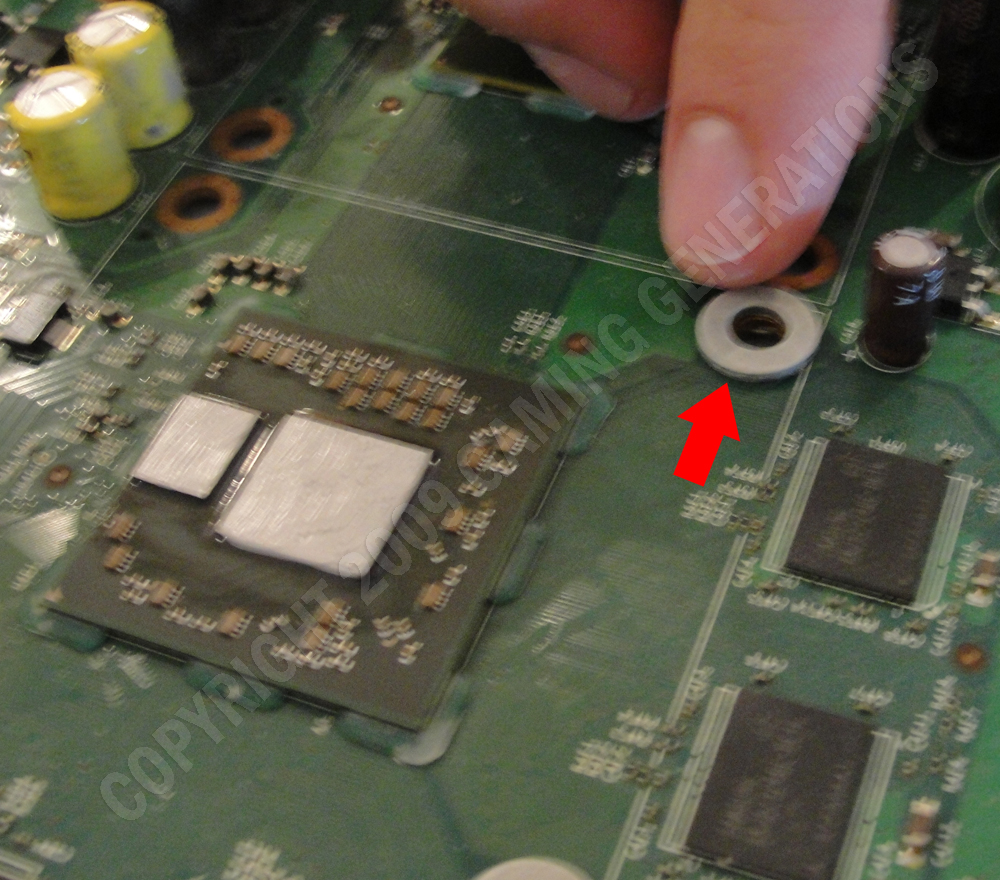

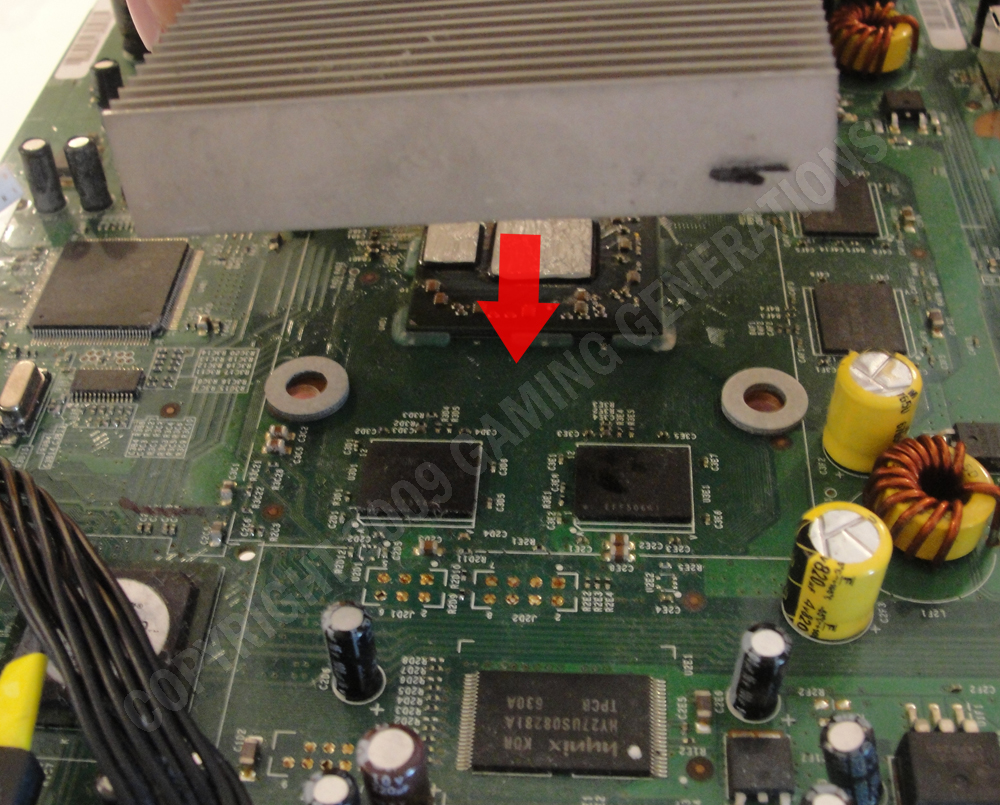

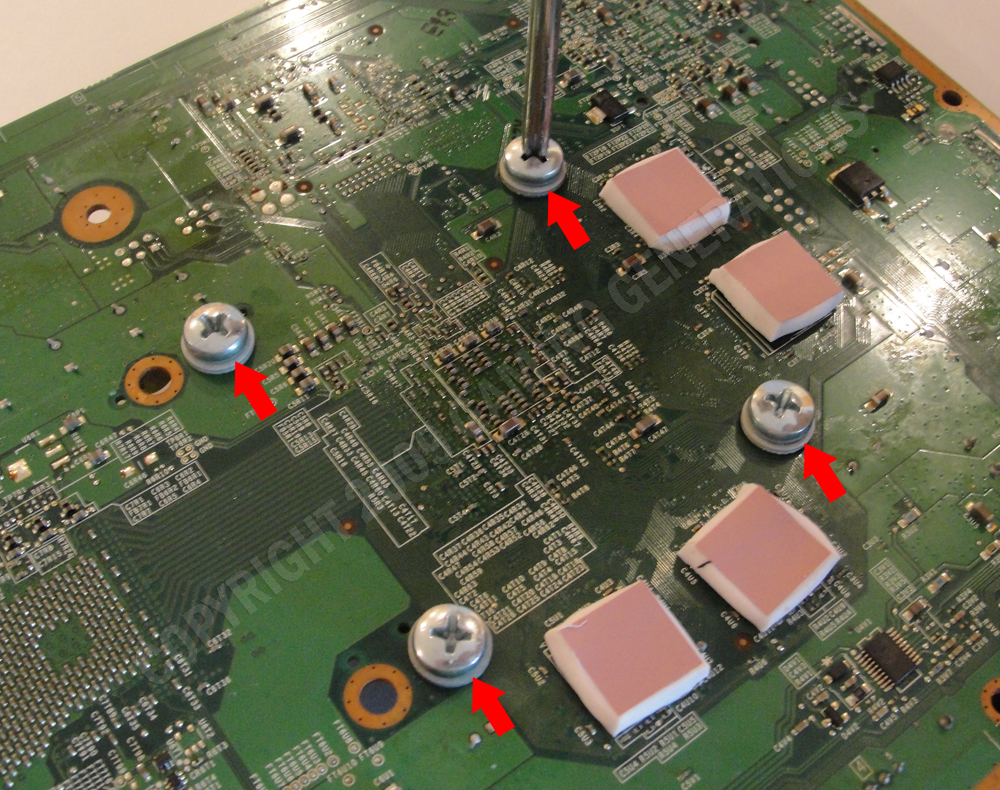

63) We will be working with the GPU first. Put the 4 washers on the top of the motherboard (one on each screw hole) like shown below.
View Original

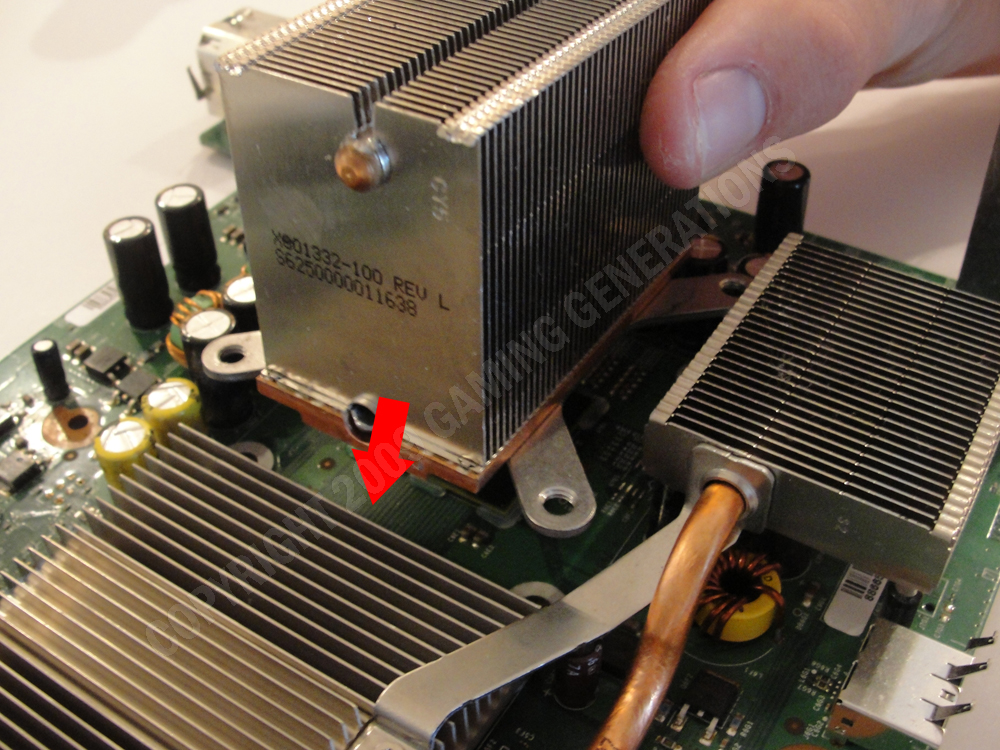

64) Put the GPU heatsink back on.
View Original
65) Using 4 of your screws, screw down the heatsink.
View Original
66) Hand tighten the screws. Do not over tighten them!
View Original

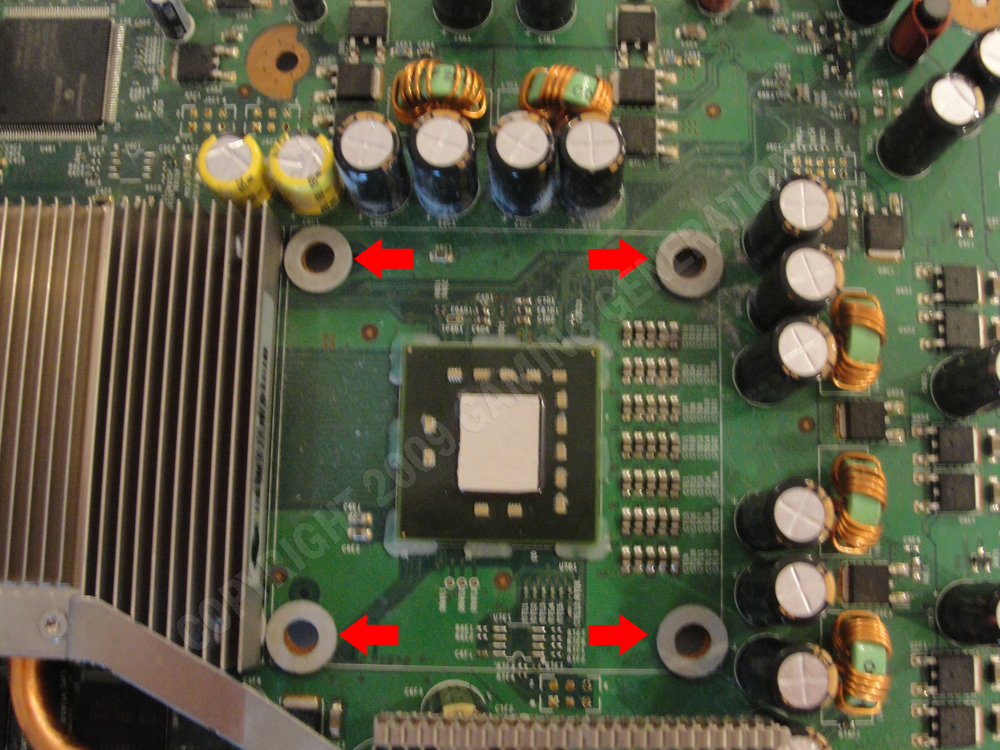

67) Now moving onto the CPU. Put the 4 washers down on the motherboard like shown below.
View Original
68) Put the heatsink back on.
View Original

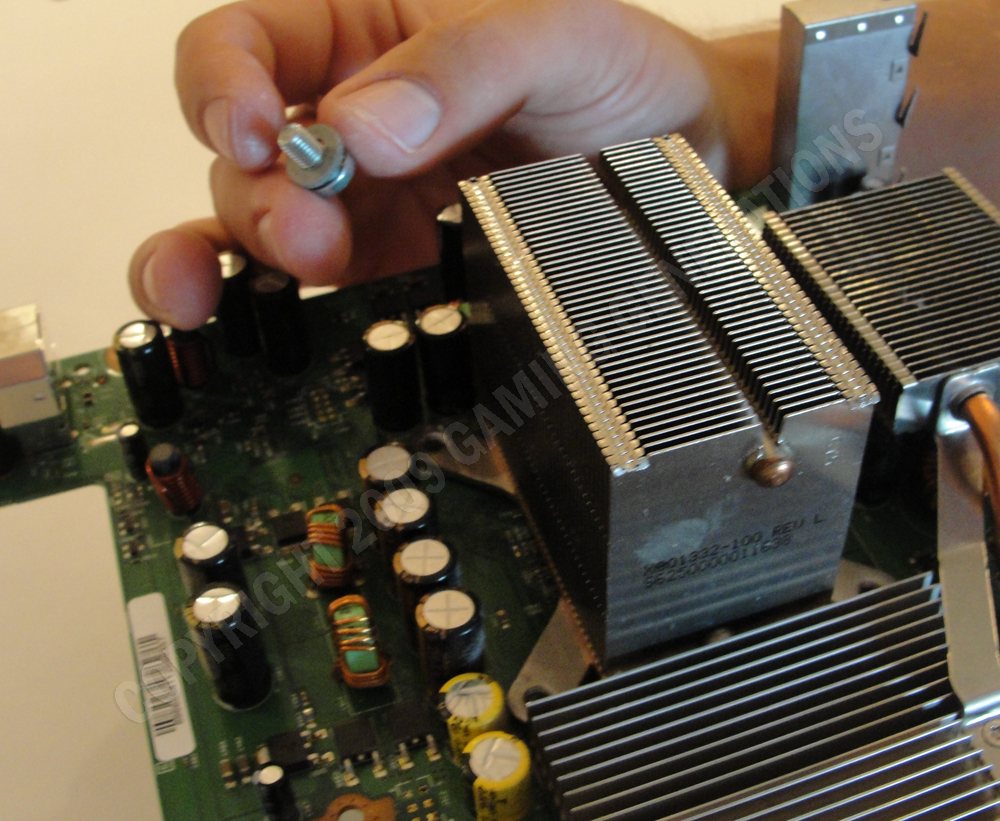

69) Put the 4 screws back in to hold down the heatsink.
View Original
70) Tighten down the screws. Do not over tighten!
View Original

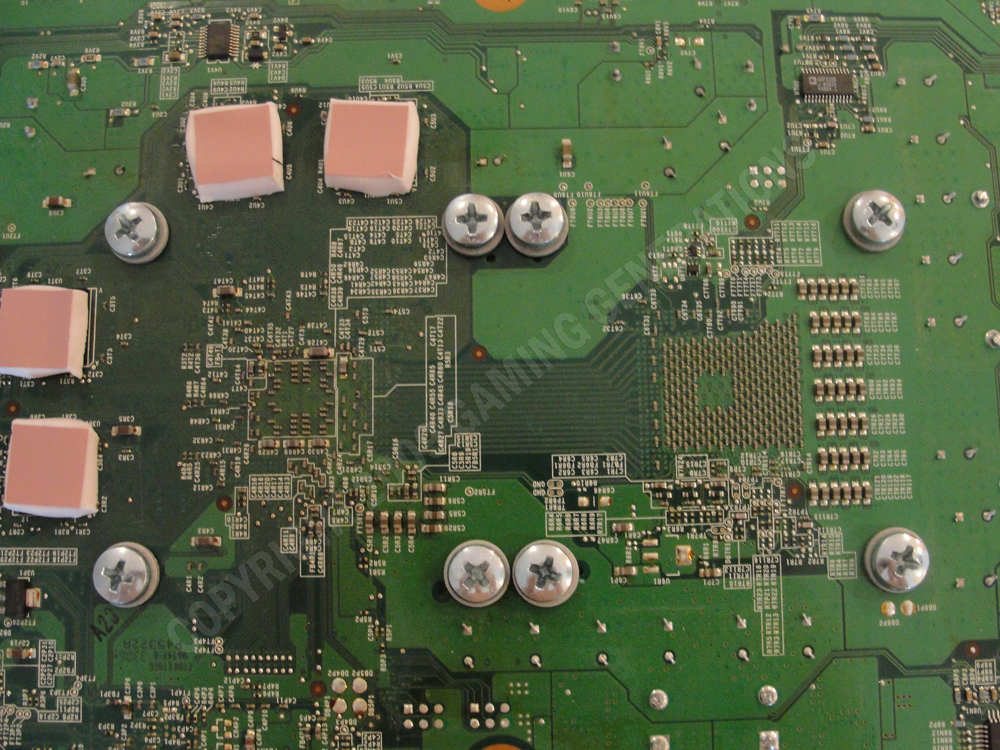

71) All screws should now be in place like shown below.
View Original

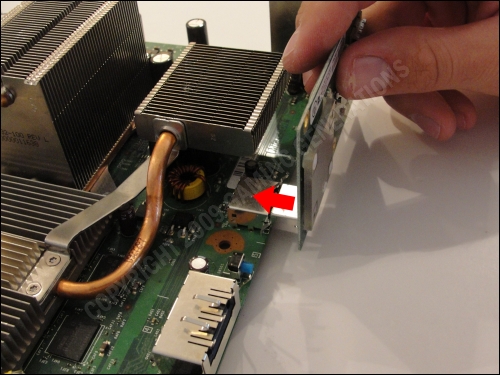

73) Plug back in your wireless pcb board.
View Original

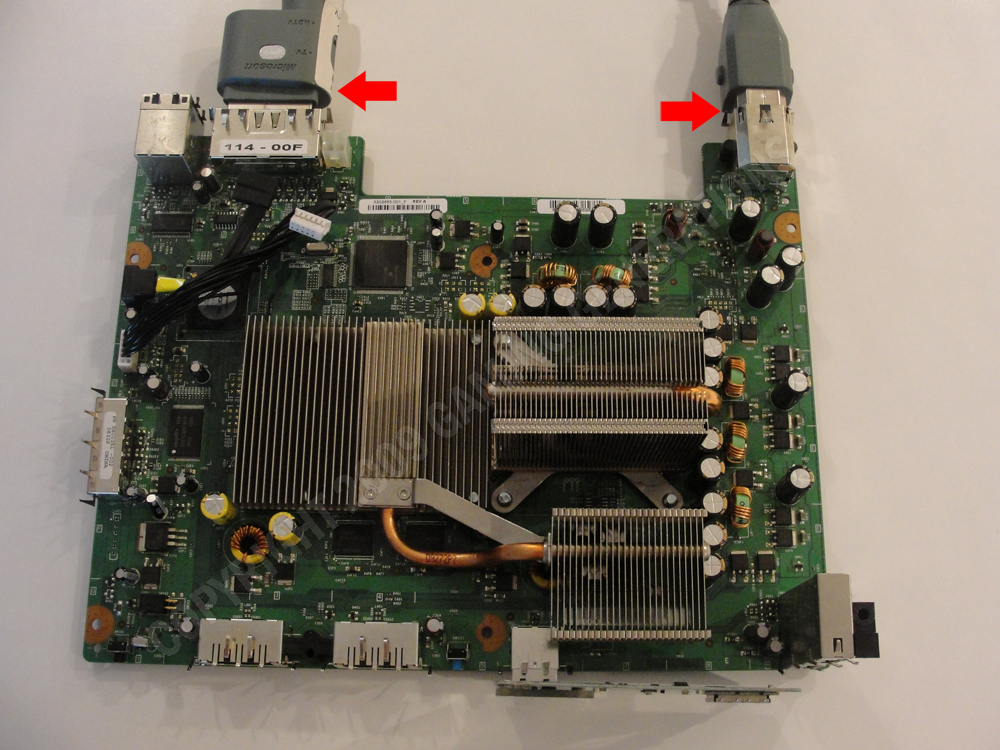

74) Plug in your powercord and AV cable.
View Original
75) Turn the system on.
View Original

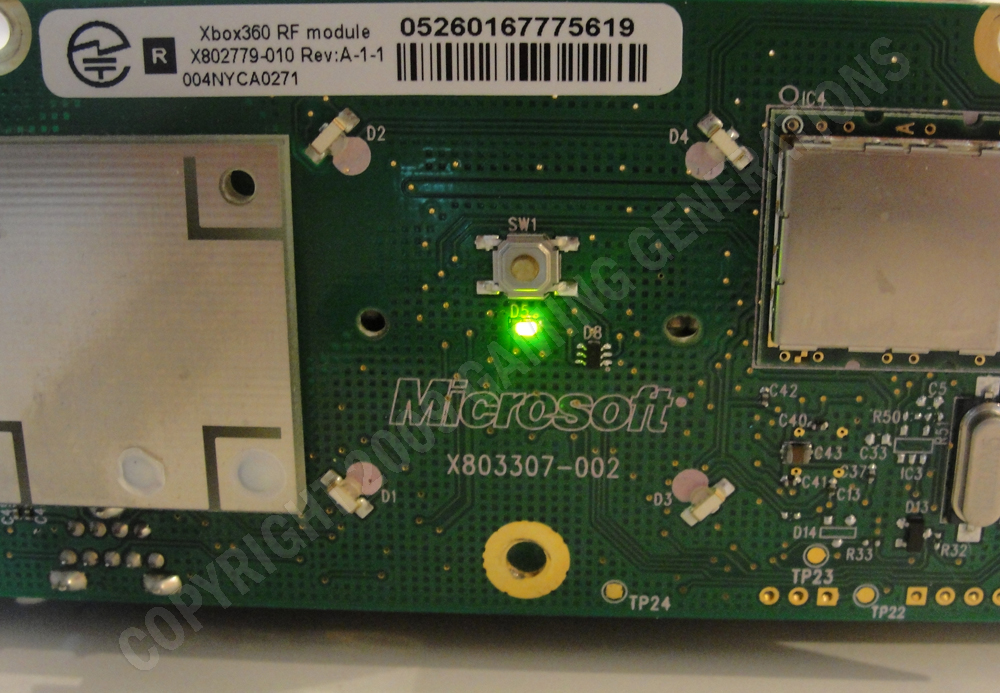

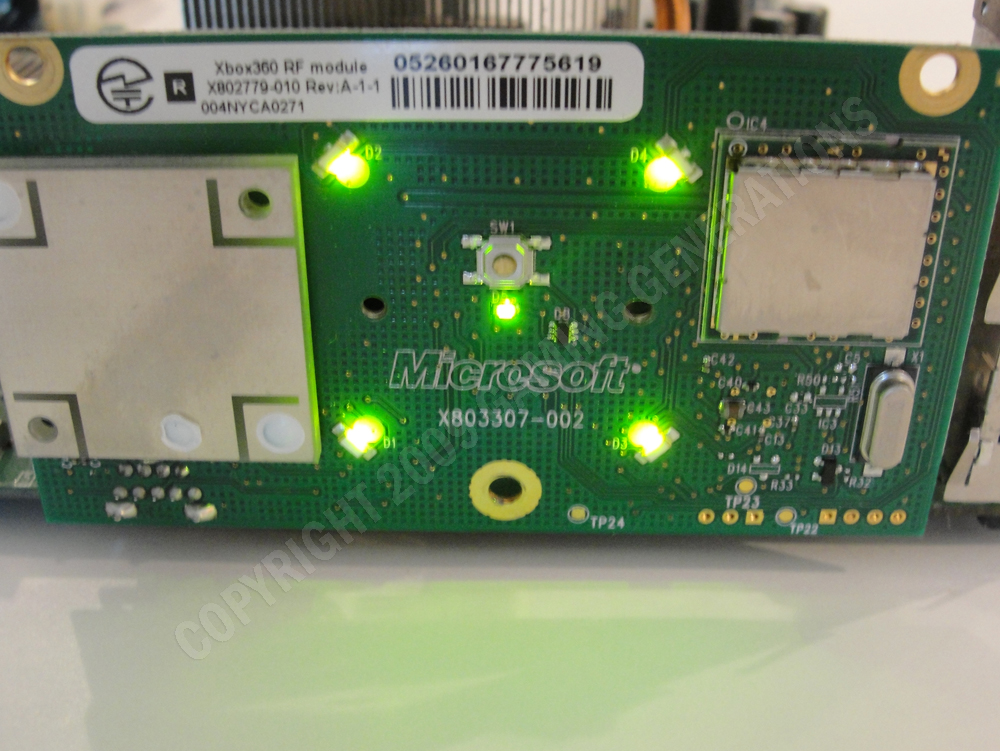

76) You will get a green light initially.
View Original

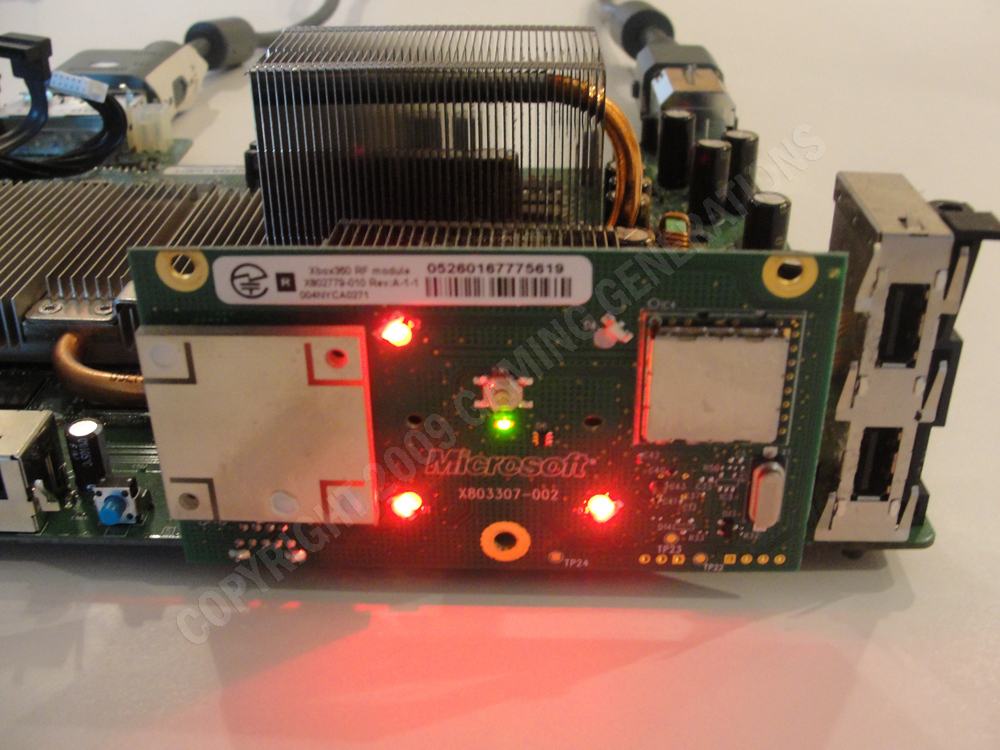

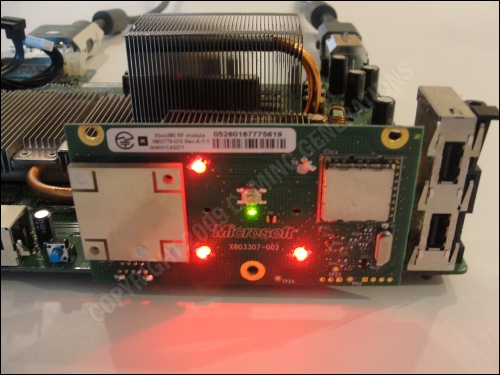

77) You may get red lights again, or the light may stay green and blink. At any rate, do not turn the 360 off! We are overheating the Xbox 360 on purpose.
View Original

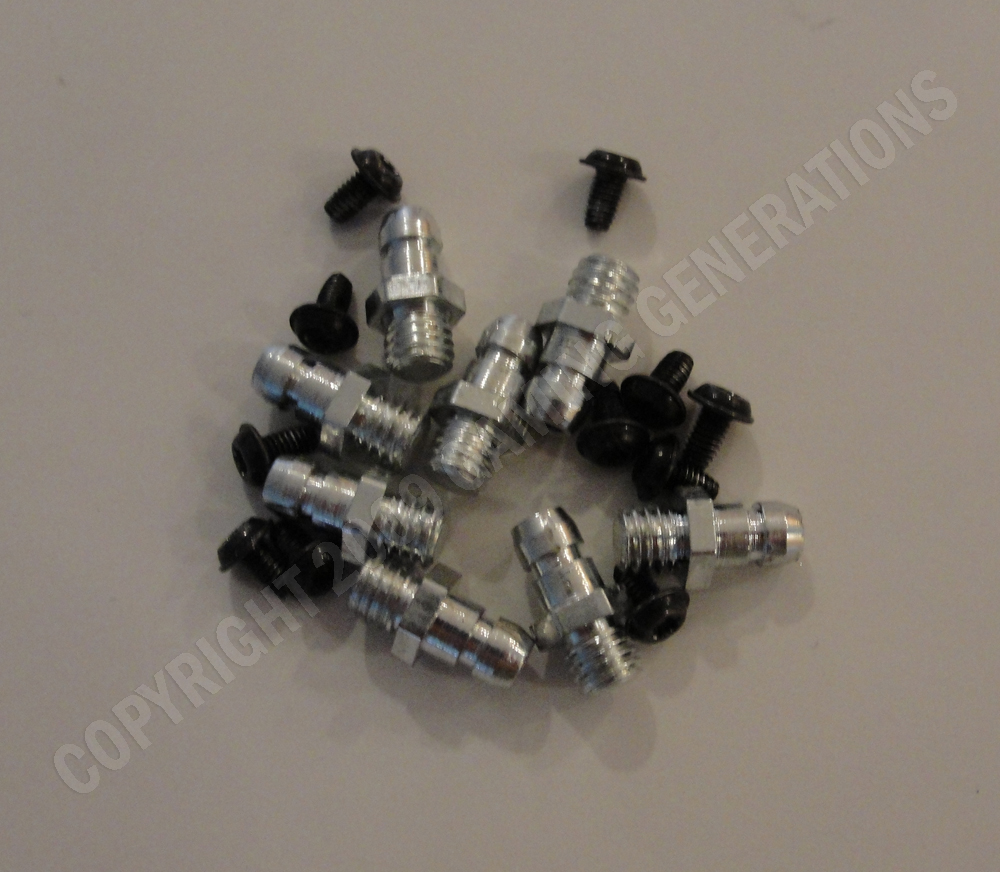

78) While we are waiting for the Xbox 360 to overheat, you can start throwing away some stuff. Out of the parts below, keep 3 of the black screws, throw the rest away.
View Original

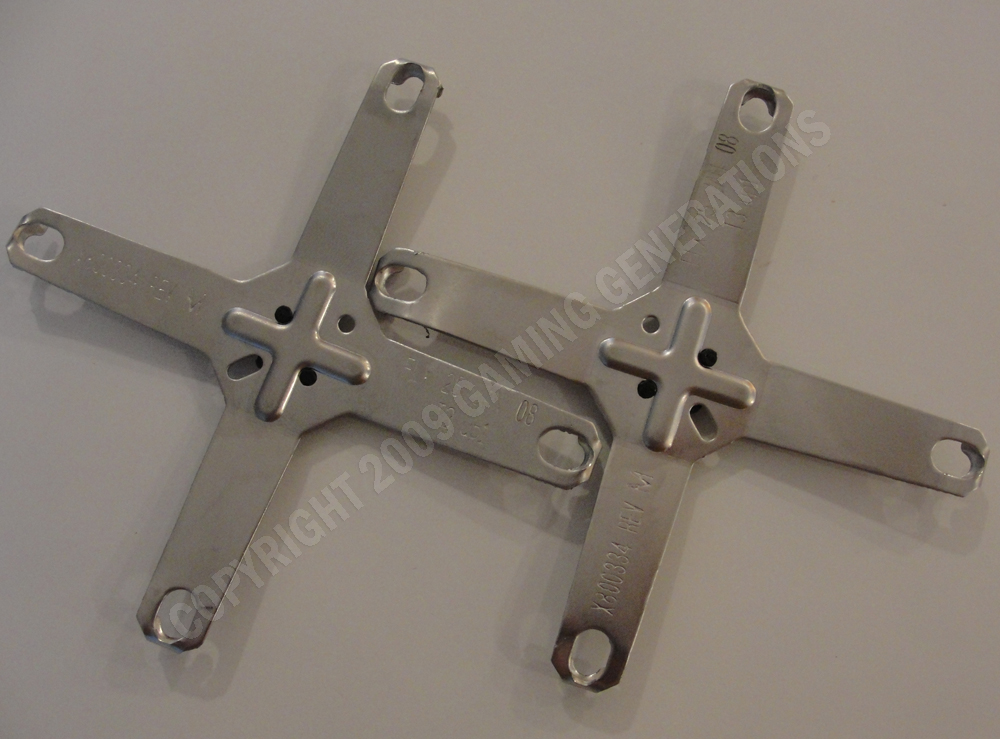

79) Throw away the faulty X-Clamps.
View Original

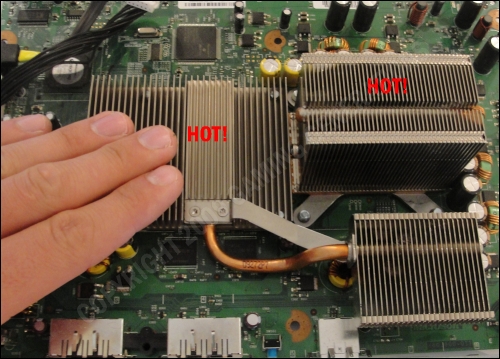

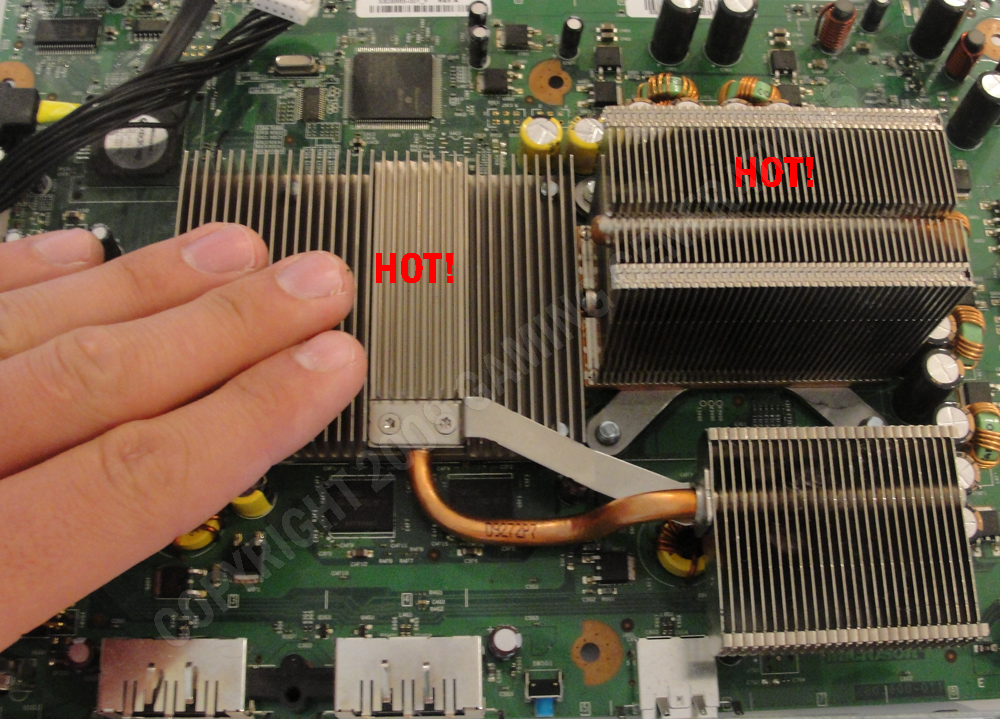

80) During the overheat process, the GPU & CPU heatsinks will get very hot. The process takes anywhere from 5 - 30 minutes.
View Original

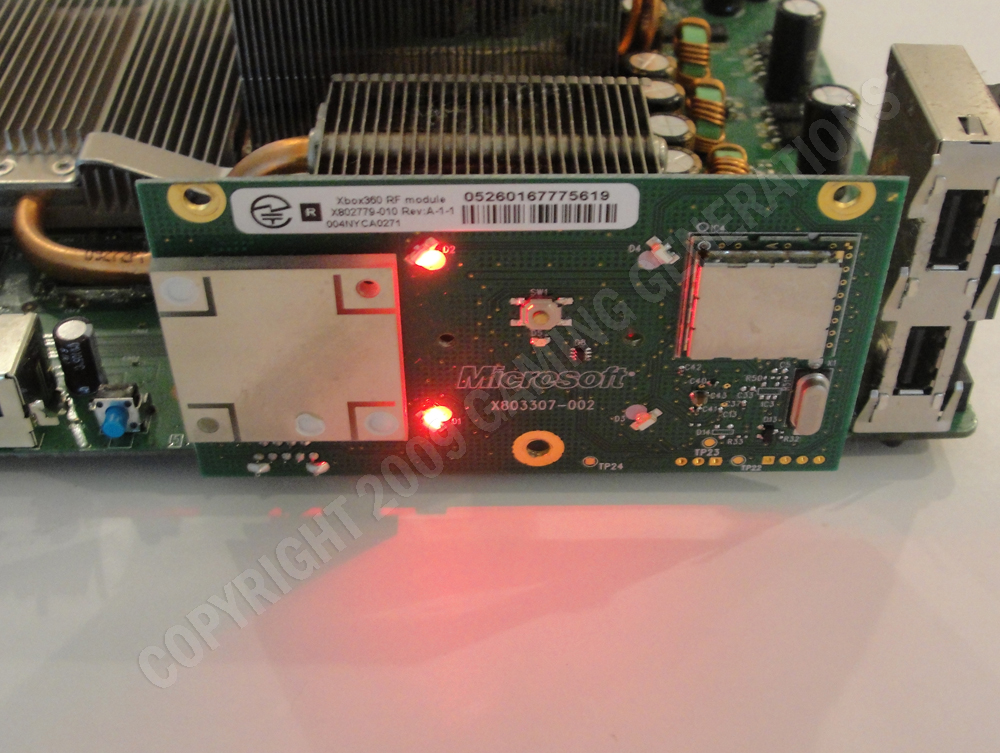

81) When your Xbox 360 is finished overheating it will show 2 red lights like shown below. This indicates it is done overheating.
View Original
82) Unplug the powercord.
View Original
83) Let your Xbox 360 sit for about 10 minutes.
View Original
84) Turn your Xbox 360 back on and you hopefully will get green lights! If not go to the bottom for more in depth things you can try.
View Original

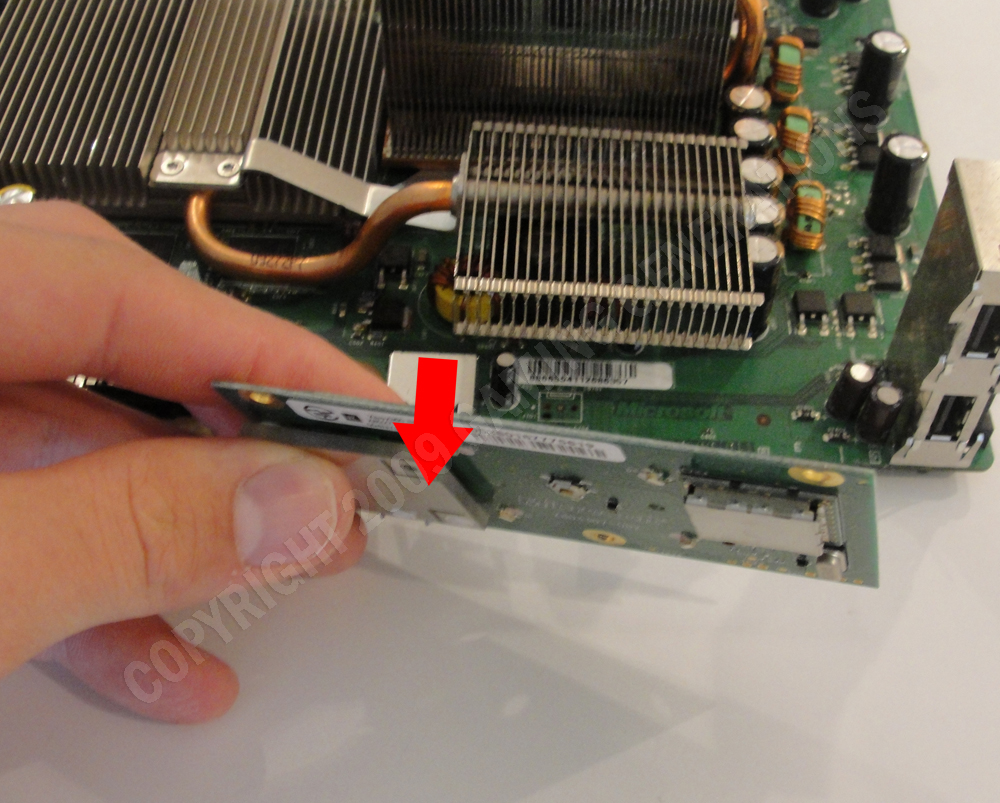

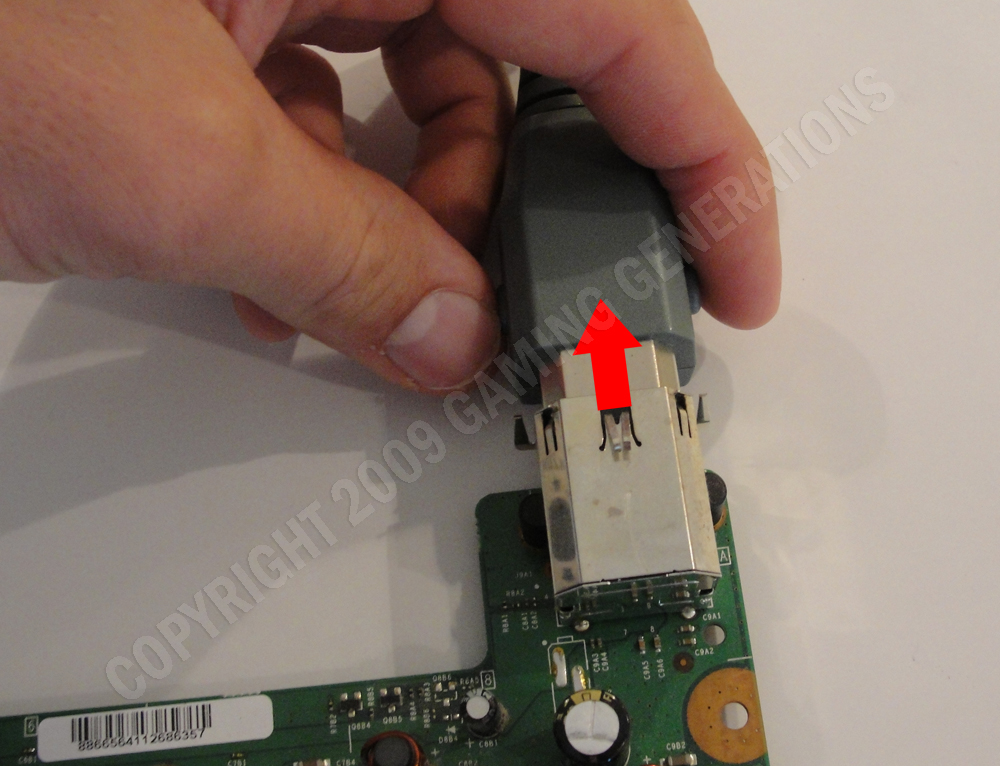

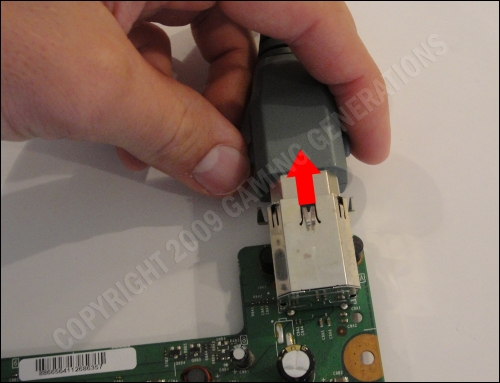

85) If you got green lights, you are ready to put your Xbox 360 back together. Pull off the wireless PCB board.
View Original

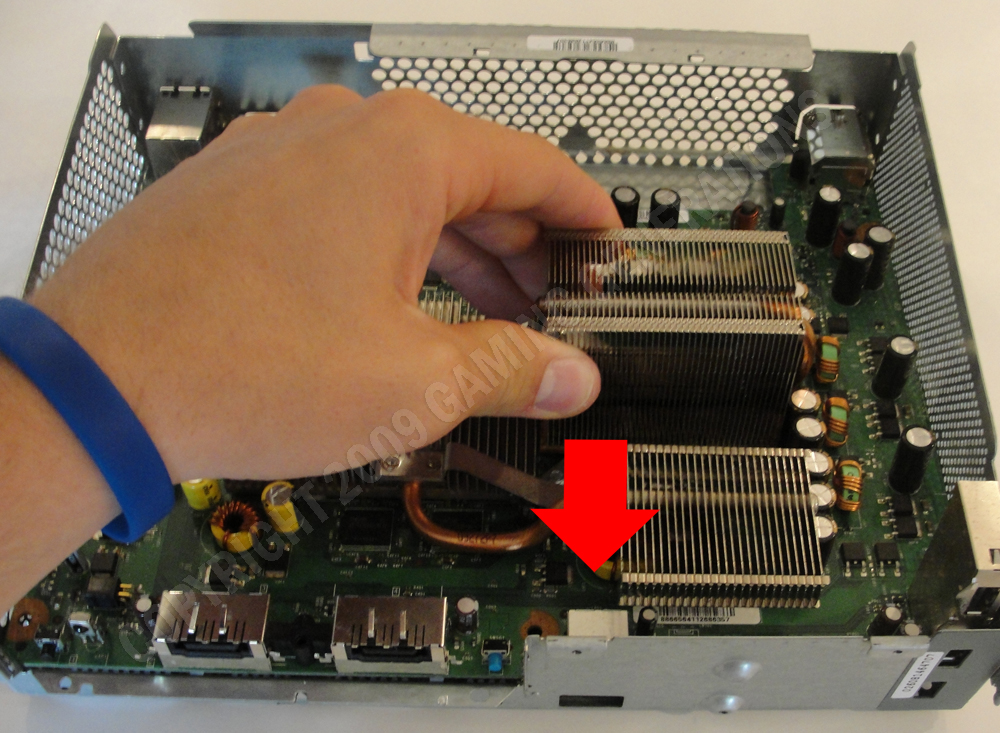

86) Put the motherboard back on.
View Original

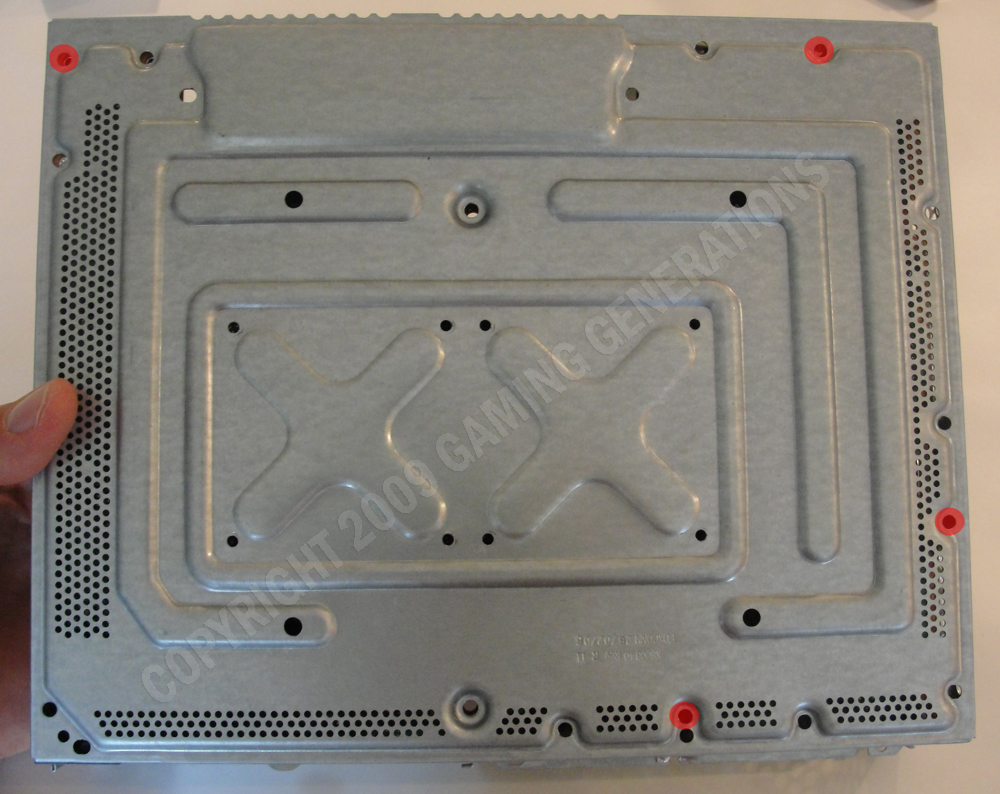

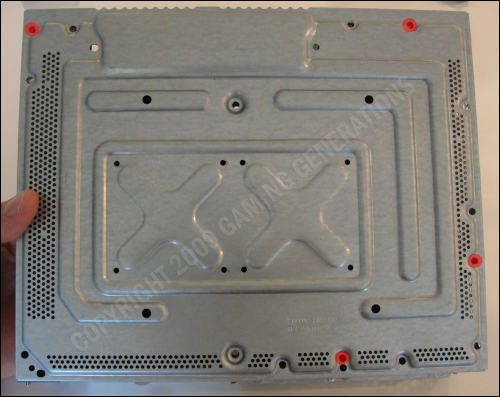

87) Put only 4 torx screws back in to hold the motherboard in place. Look below for the locations.
View Original

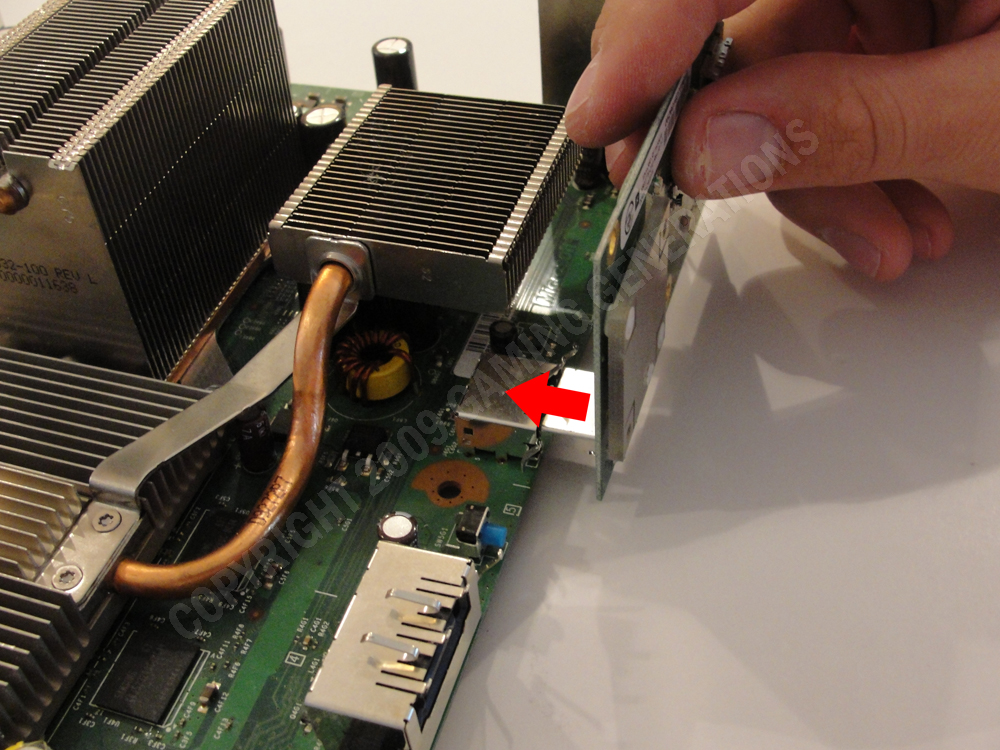

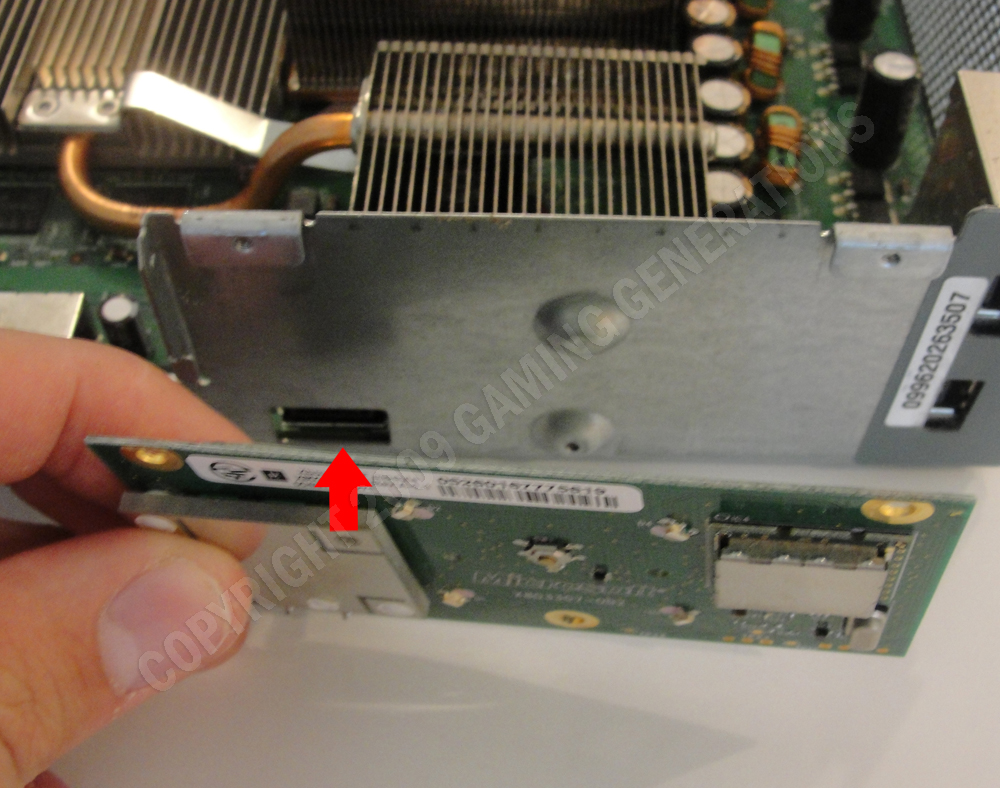

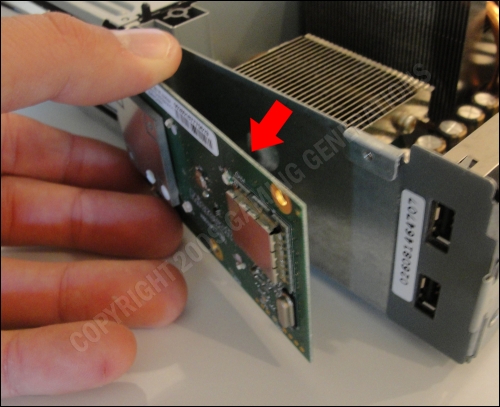

88) Plug the wireless PCB back in.
View Original

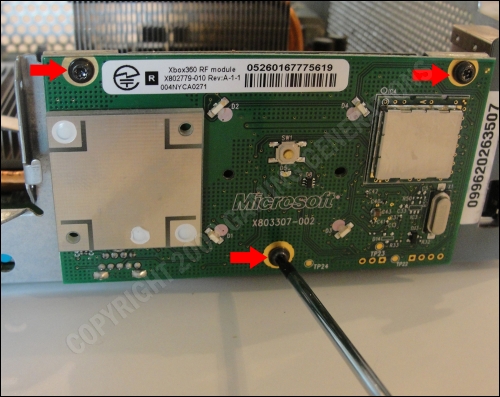

89) Grab your 3 black screws you saved and screw back in the wireless PCB board.
View Original
90) Snap back on the piece shown below.
View Original

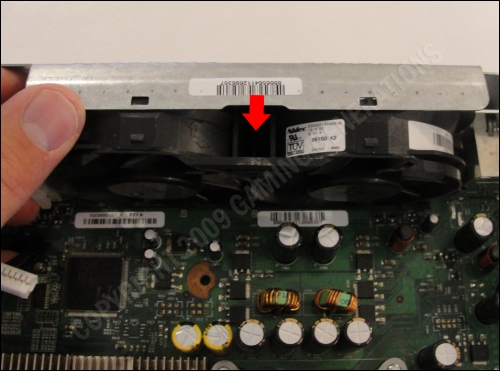

91) Put the fan back in.
View Original
92) Plug the fan in.
View Original

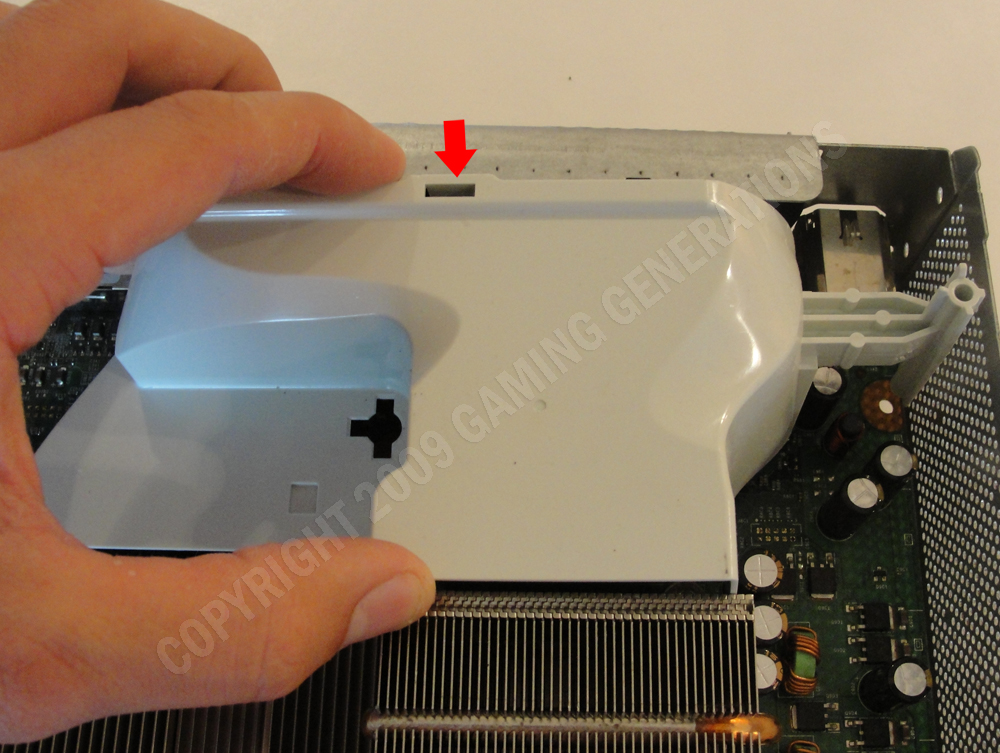

93) Put the fan shroud back in.
View Original

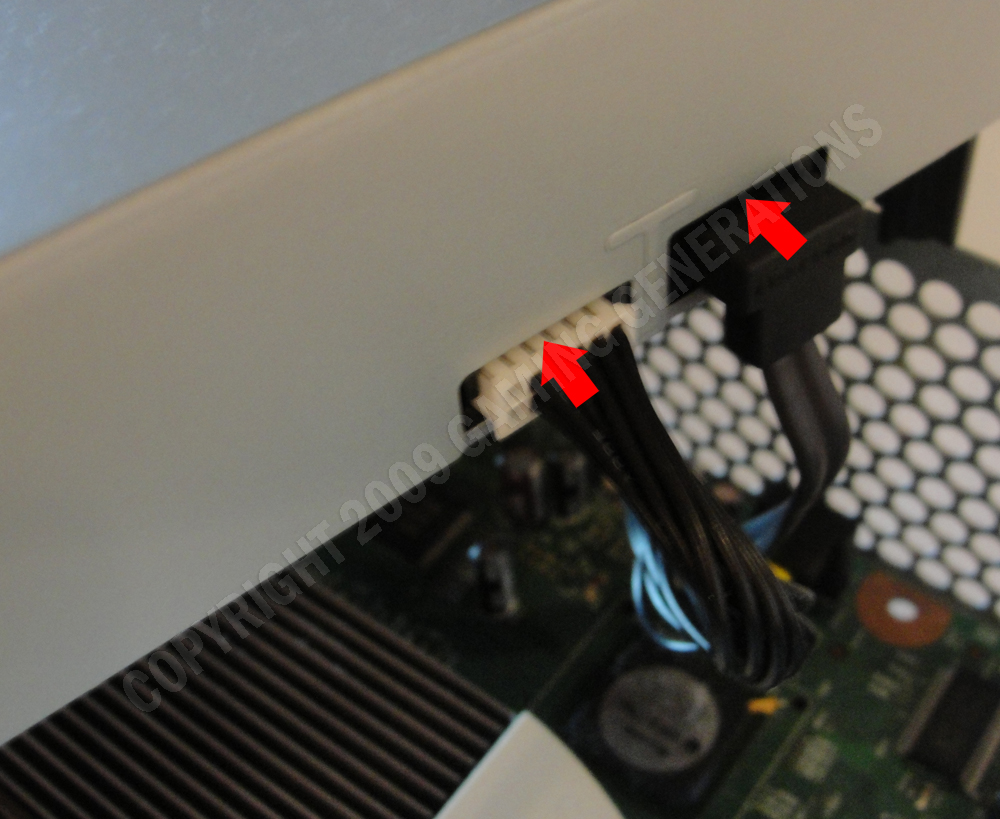

94) Plug back in the 2 drive cables.
View Original
95) You are almost done! Now let's put the case back on.
View Original

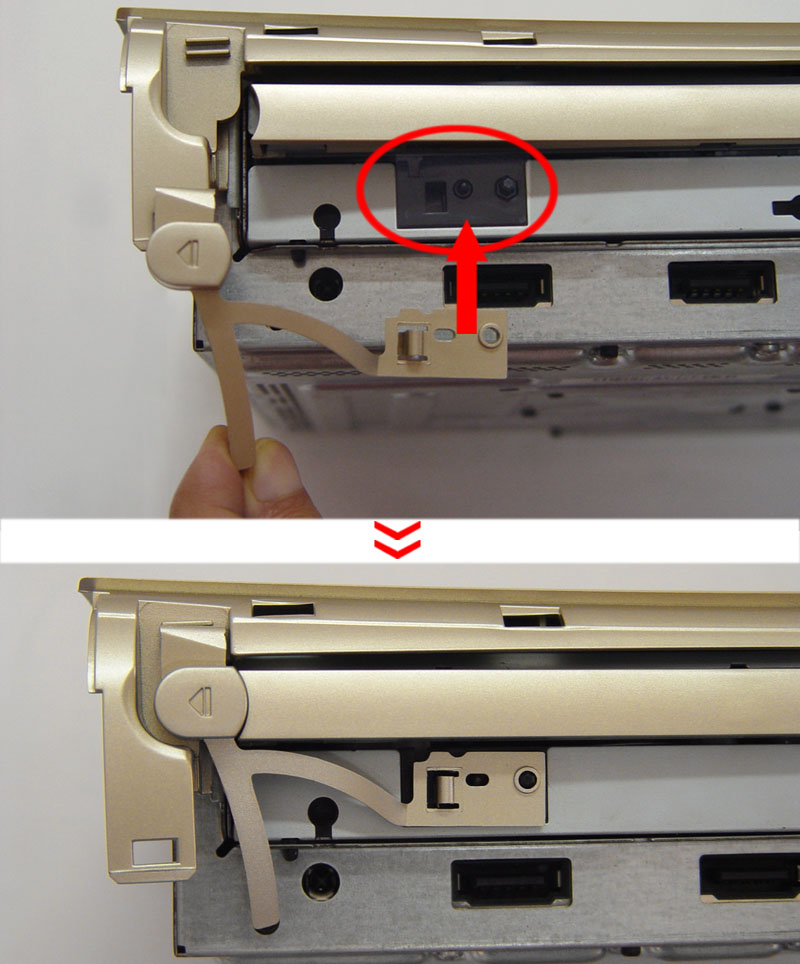

96) Put the top case on and put on the eject button. Note this picture was taken from XCM's guide. The color of the eject button does not relate to this guide. Now flip over your Xbox 360.
View Original
97) This step is entirely optional, you do not have to put the screws back in if you do not want.
View Original
98) Put the bottom cover back on. Make sure the tabs are all snapped together correctly and that the front buckles are latched back together properly.
View Original
99) Put the hard drive heat panel back on.
View Original
100) Put the opposite side heat panel back on.
View Original
101) Snap on the front faceplate.
View Original
102) Snap your hard drive back in (if you have one).
View Original
103) You should now have a working Xbox 360!
View Original
________________________________________________________________________________________
MORE IN DEPTH STEPS IF ABOVE TUTORIAL DID NOT WORK
________________________________________________________________________________________

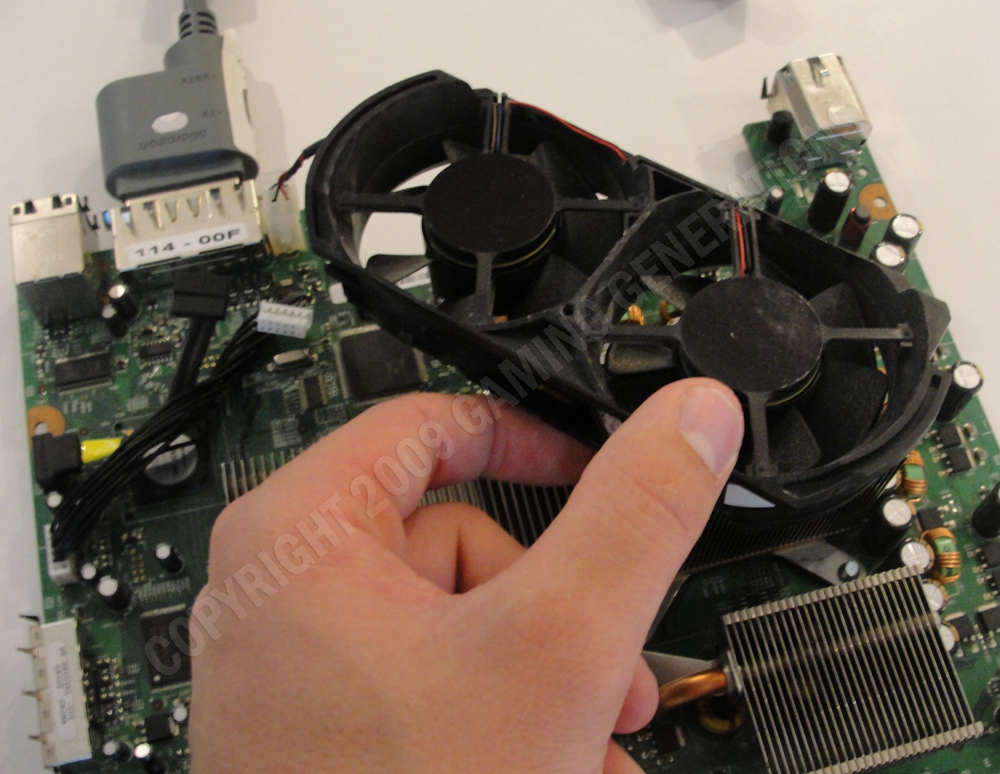

1) When you get red lights, normally the problem lies within the GPU. What you can do is plug the fan in and manually hold it over the CPU heatsink to keep it cooler. This way when you overheat the system you are maximizing the overheat on the GPU chip.
View Original

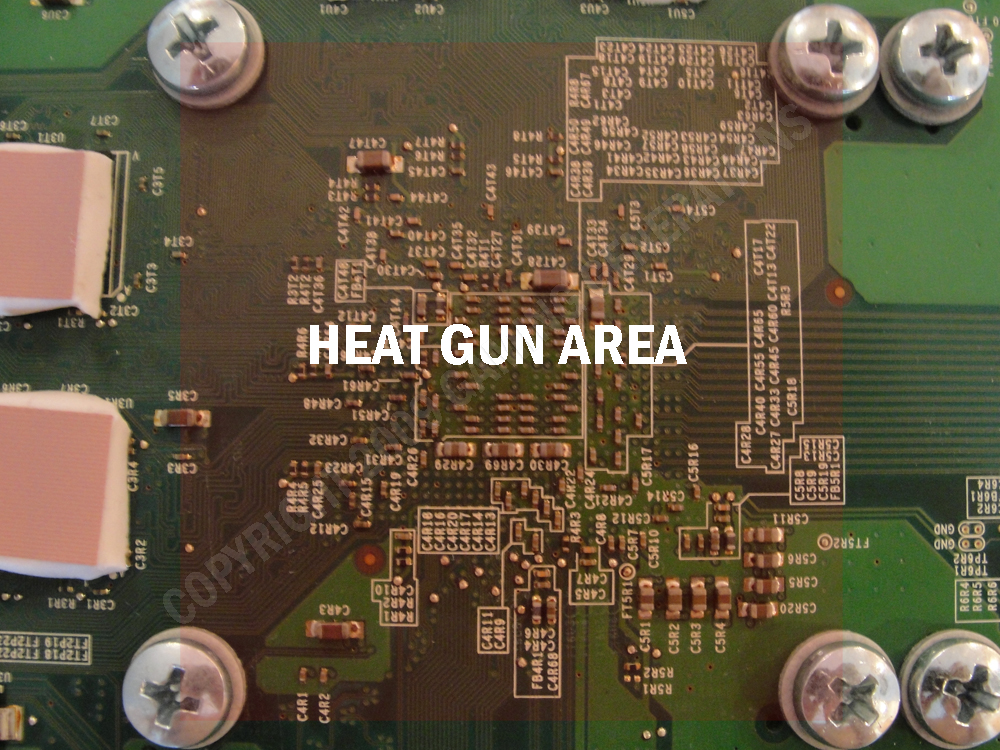

2) If the above step does not work, it's time to get out your heat gun. If you do not know what a heat gun is, Google it. Put your heat gun on high and hit the section on the board shown in the below picture (bottom of the GPU) for about 45 seconds. Stay at least 1 inch away from the board and keep moving the heat gun around in a circular motion. Never leave it in the same place for a long period of time as it may damage the board.
View Original

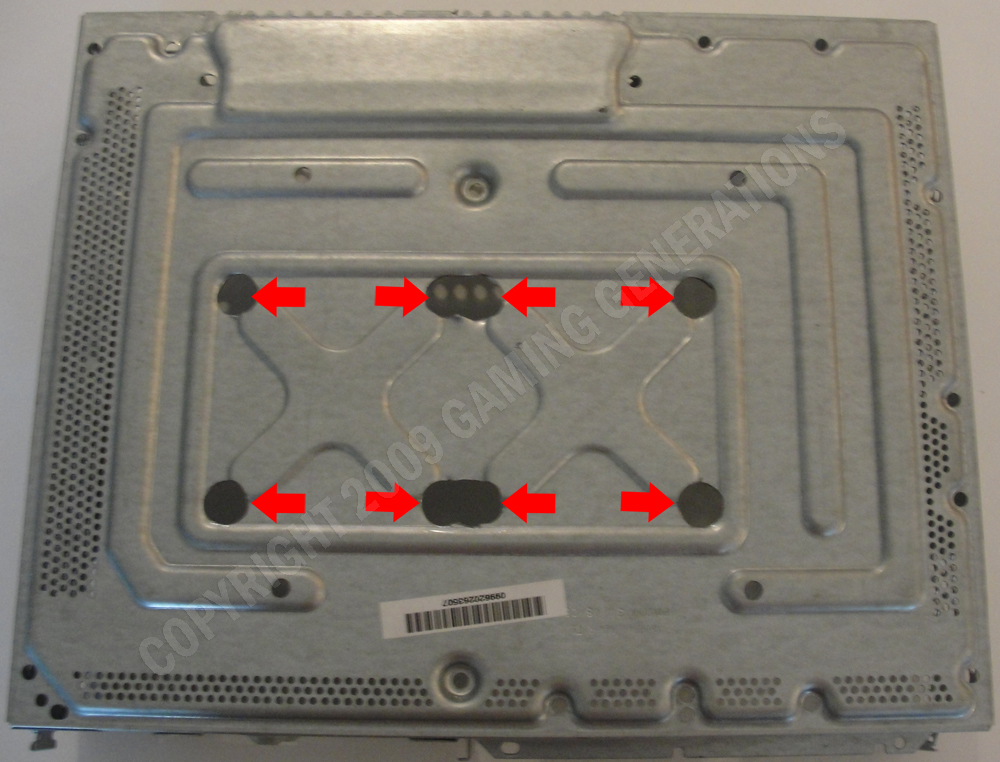

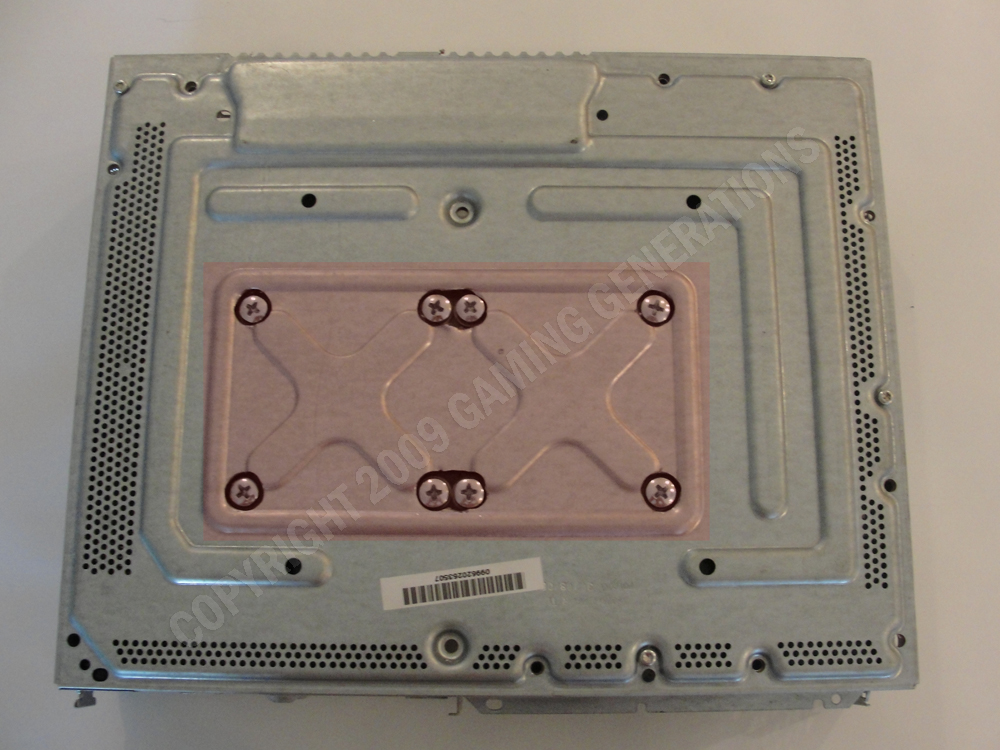

3) If you are still having issues, we can try to relieve some of the board flex. This can be accomplished by drilling out the chassis where the screws sit. If you do not want to drill, you can use a puncher (or a philips screwdriver w/ a larger head) and pound down the holes a bit with a hammer. Your goal is to make the board sit flush in the chassis.[size=13]
View Original
As you can see in the picture below, the screw heads sit perfectly in the drilled chassis. Again this reduces board flex as the screw heads are able to sit flat in the chassis w/out making the motherboard flex.
View Original |
|
|
