How To Install A New Ben Q Drive Xbox 360
View Original
_____________________________________________________
Guide Provided By: Gaming Generations
Estimated Time: 30min - 1hour
Experience Level: Intermediate
Items Needed: 15w-30w soldering iron (recommended), T10 torx screwdriver, Philips Screwdriver, Xbox 360 Opening Tool (Optional but recommended), Small knife (optional).
_____________________________________________________
1) Grab the necessary tools listed above.
2) Get your Xbox 360 ready.
View Original
3) Start by taking off the hard drive if necessary. There is a small button, just push it down and pull up on the sides of the hard drive to remove.
View Original
4) Put your fingers in the tab and pull back w/ a bit of force. The faceplate should snap off. Be careful not to pull to hard as you do not want to break the face plate.
View Original
5) Now on to the most difficult part. There are hidden tabs inside of the case underneath the "Heat Panels". You can easily get at them with your opening tool. Look inside the case where the red marks are located below and you can see the tabs you need to press.
View Original
6) In this picture you can see exactly where the tabs are located and how to effectively use the opening tool. The picture below is from XCM's official guide. Now let's move on to the hard drive side.
View Original
7) This side is more difficult because you really cannot get to the 2 tabs on the front part of the heat panel. The easiest way I have found is to pull up with force on the front. A quick hard pull and both tabs should snap right up and wallah.
View Original
8) Now finish up taking off the piece by pushing in the last 4 tabs. Again that this picture below is from XCM's official guide. Also, note that one of the tabs is hidden under a rubber pad, you may need to remove the pad to get to the tab.
View Original
9) You should now have both sides off.
View Original
10) Now we are going to work on taking the top case off. There are 4 buckles that need to come unlatched. Using a small sharp object like a knife makes it easy to unlatch the buckles.
View Original
11) All 4 buckles should now be unlatched.
View Original
12) Now it's time to put your opening tool to the test. On one side there are 5 tabs on the back of the Xbox 360 that all need to be pressed at once in order to release this side of the case. Put in the opening tool like below, then push and gently pull up at the same time. The case should come unlocked. Try to make sure the buckles in front do not re-latch again during this process.
View Original
13) Now onto the other side. There are only 2 tabs to push in on this side. Sometimes it is difficult to hit the tabs, usually this is because the top case is pulled up to high on the other side or in front. Push it back down as low as you can w/out putting the tabs and buckles back in place and then try getting at the tabs again. If you cannot get it, you can yank the case off but it will most likely break.
View Original
14) Now that the tabs and buckles are done you should be able to pull off the top of the case.
View Original
15) There are screws you need to take out with your Torx 10 screwdriver. They are indicated below.
View Original
16) Having fun yet?
View Original
17) After all 6 screws are removed, flip the Xbox 360 over. Pull up the case BUT make sure you pull back on the eject button before pulling it up like shown below. You can just completely take off the eject button as you will be replacing it most likely anyways.
View Original

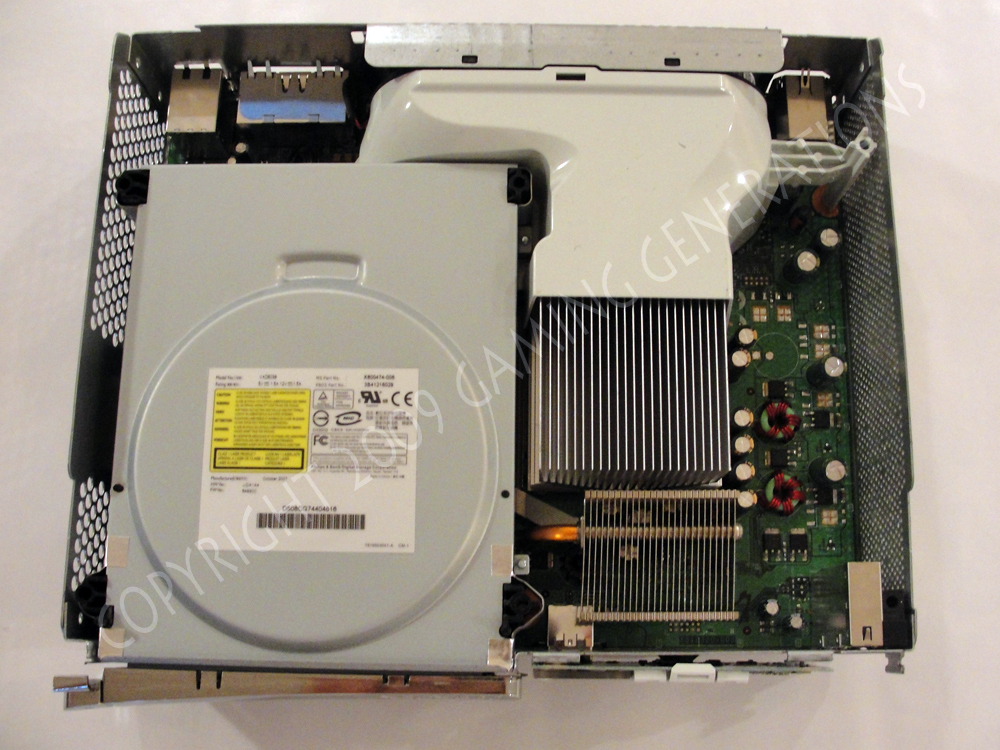

18) This is what the inside of your Xbox 360 will look like. Slowly pull up the drive.
View Original

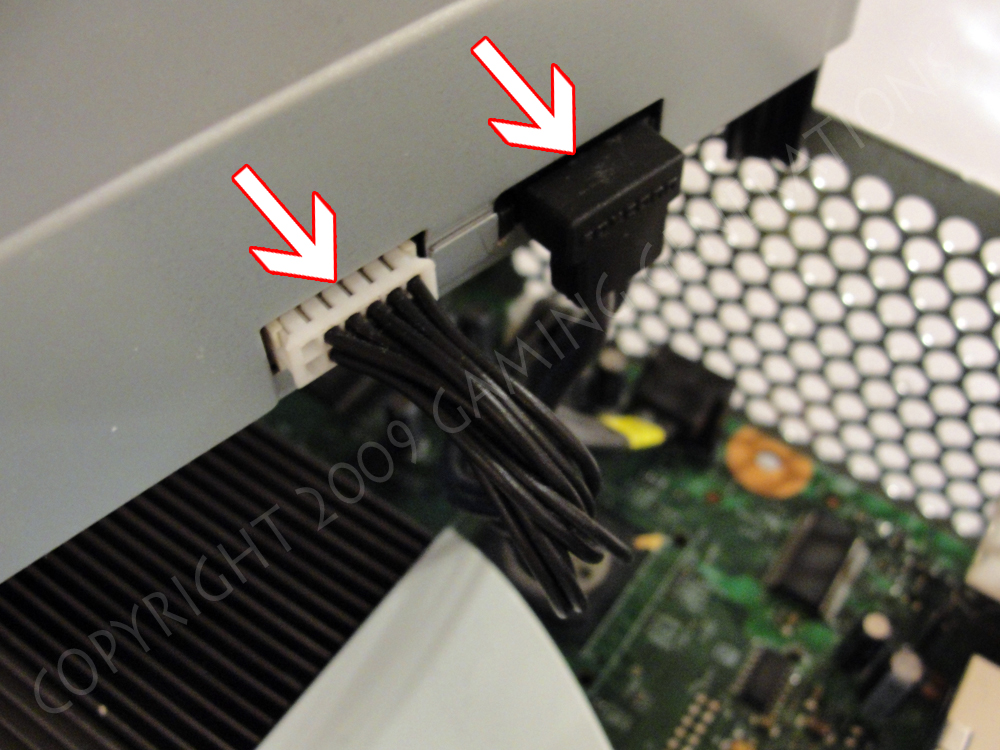

19) Pull out the 2 cables.
View Original

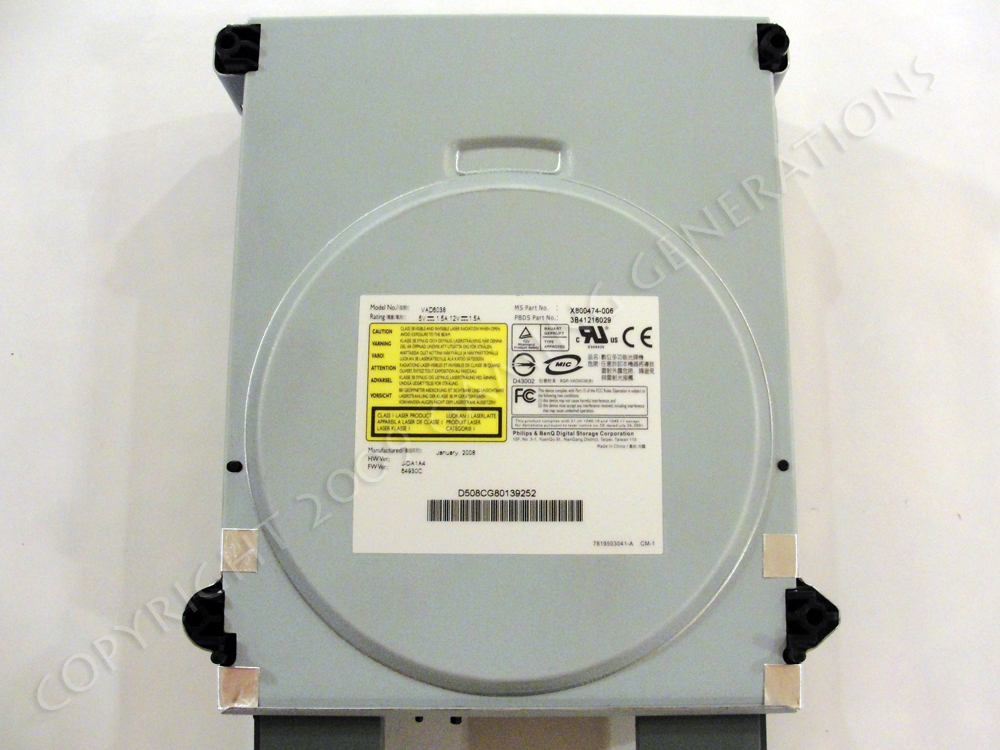

20) Your Ben Q drive.
View Original

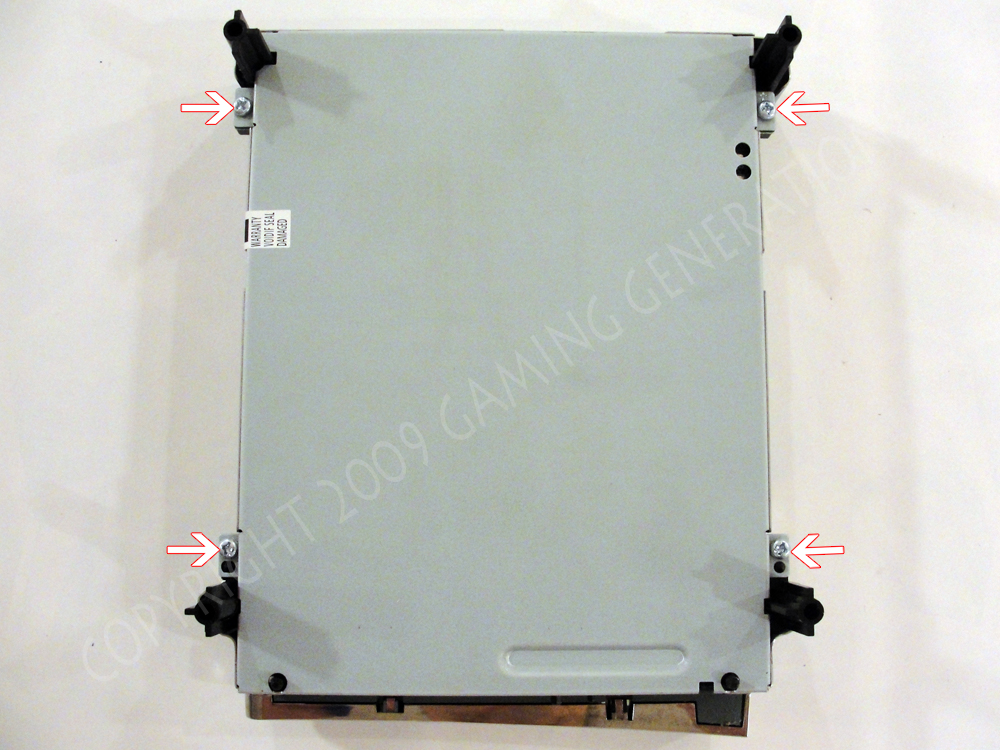

21) Flip the drive over and take out the 4 screws with your philips screwdriver.
View Original

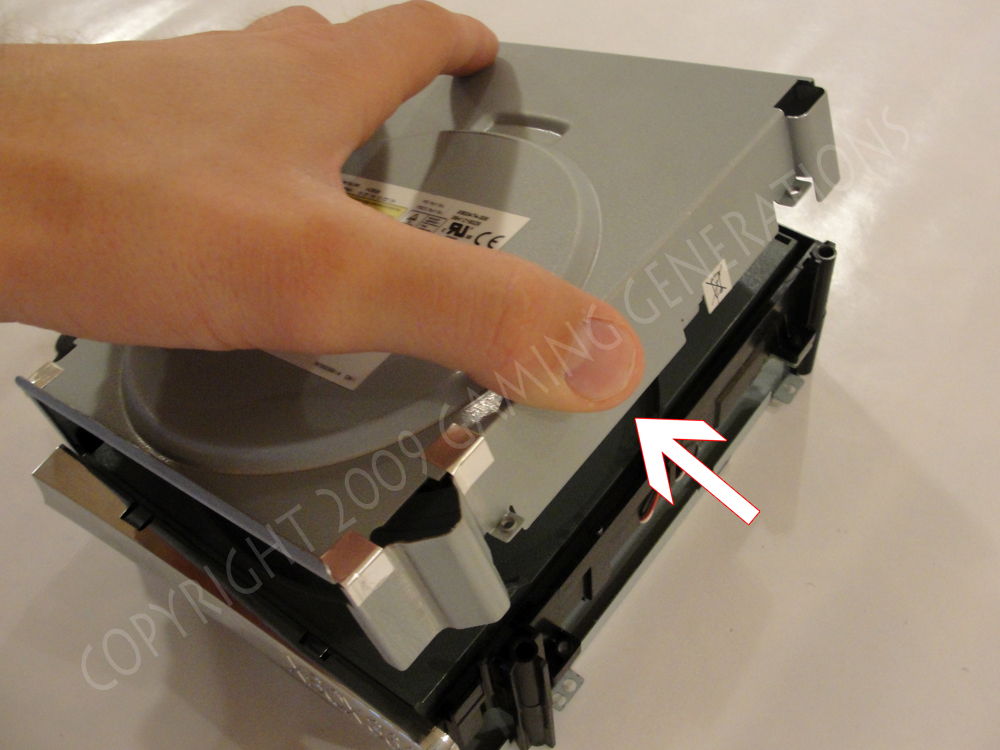

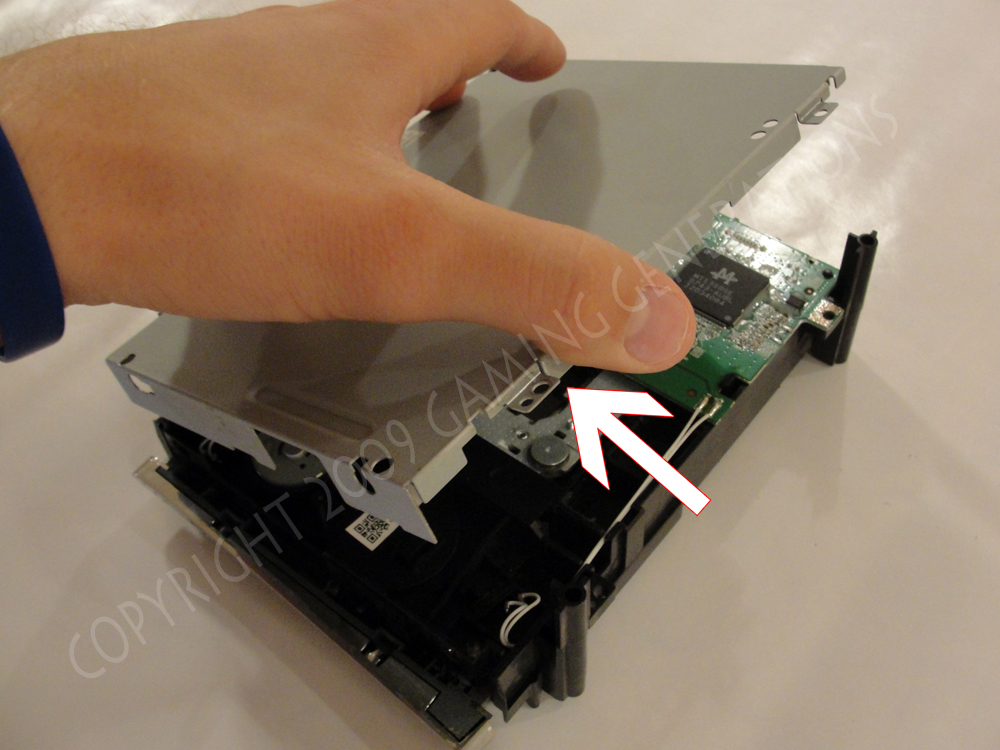

22) Flip your drive over again and pull off the top.
View Original
23) Pull off the bottom.
View Original

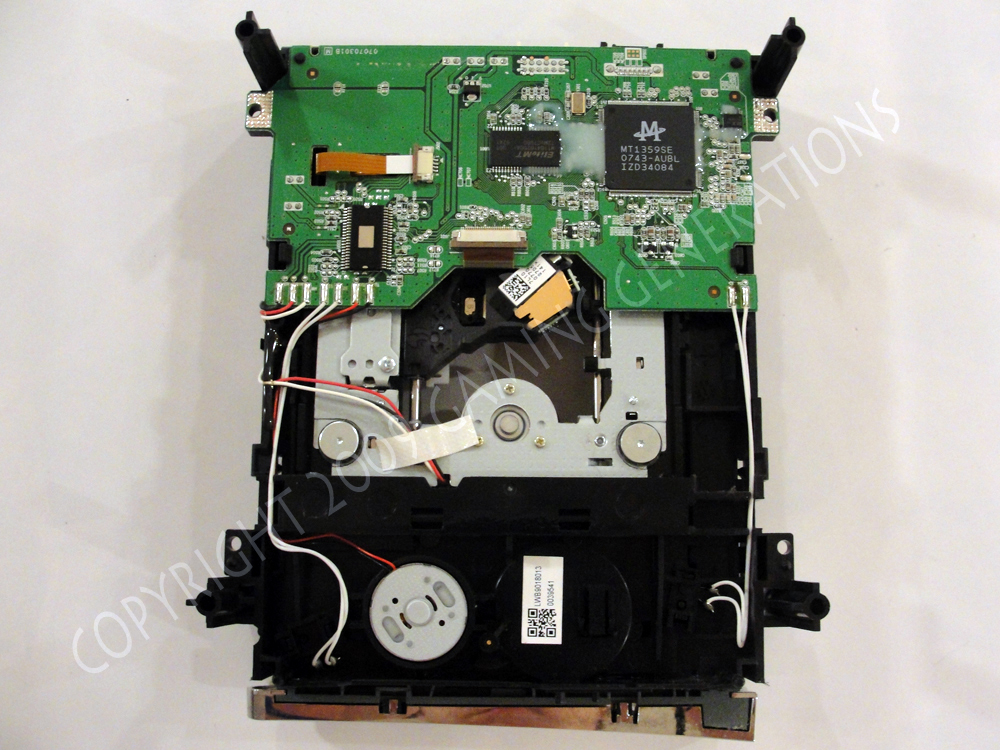

24) Now we need to take out the original drive board.
View Original

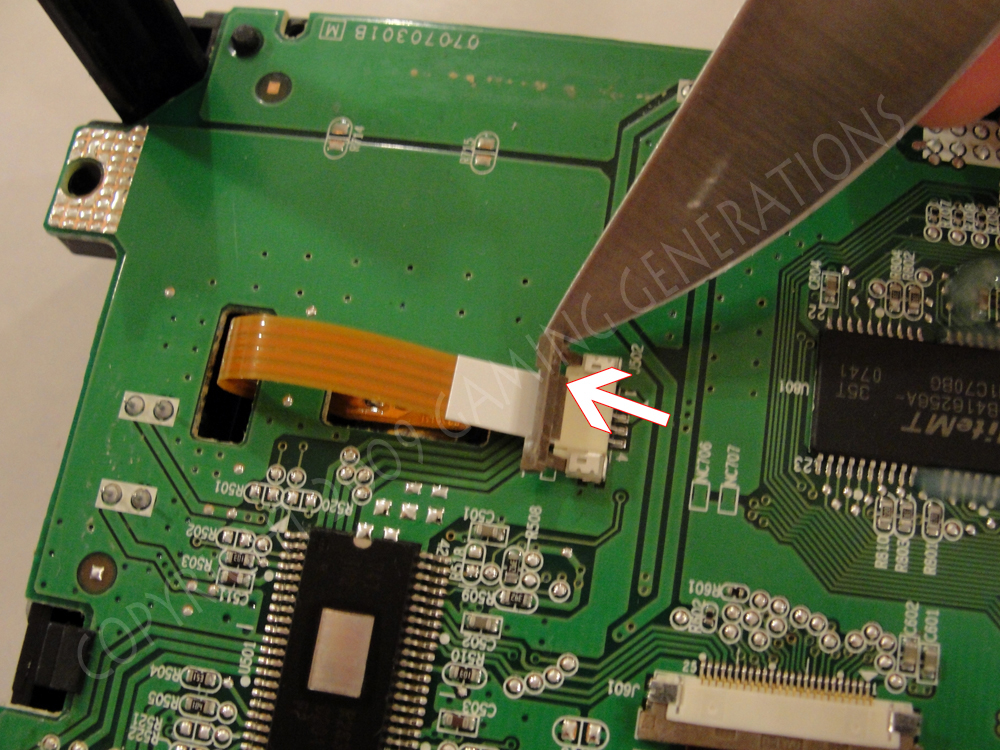

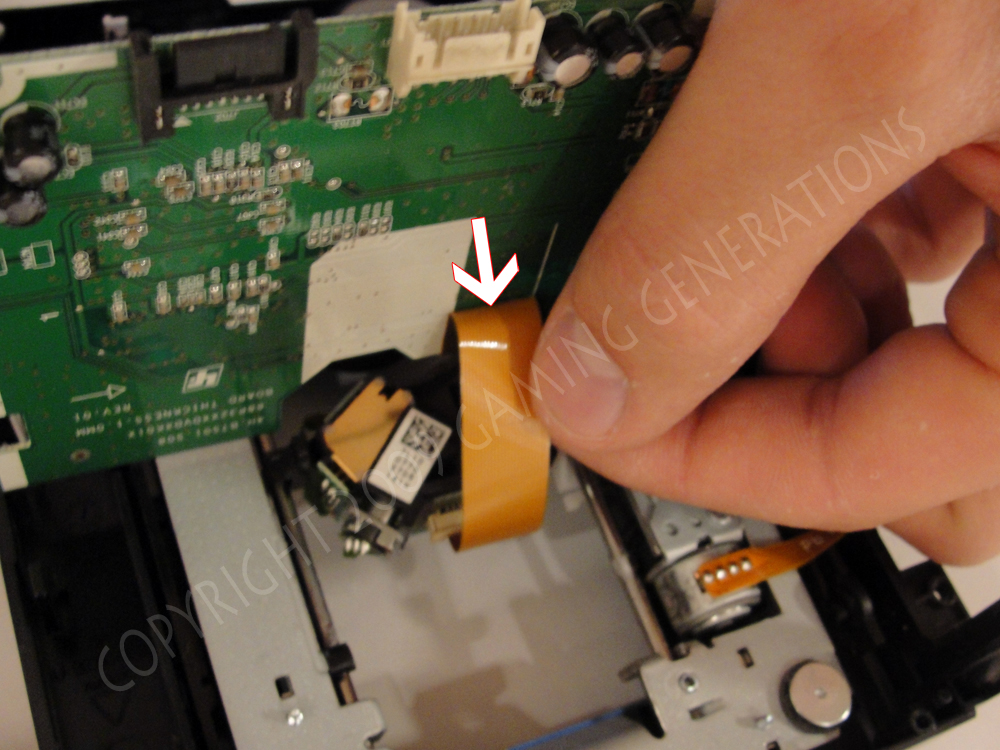

25) Push the tab shown below and pull out the ribbon cable.
View Original

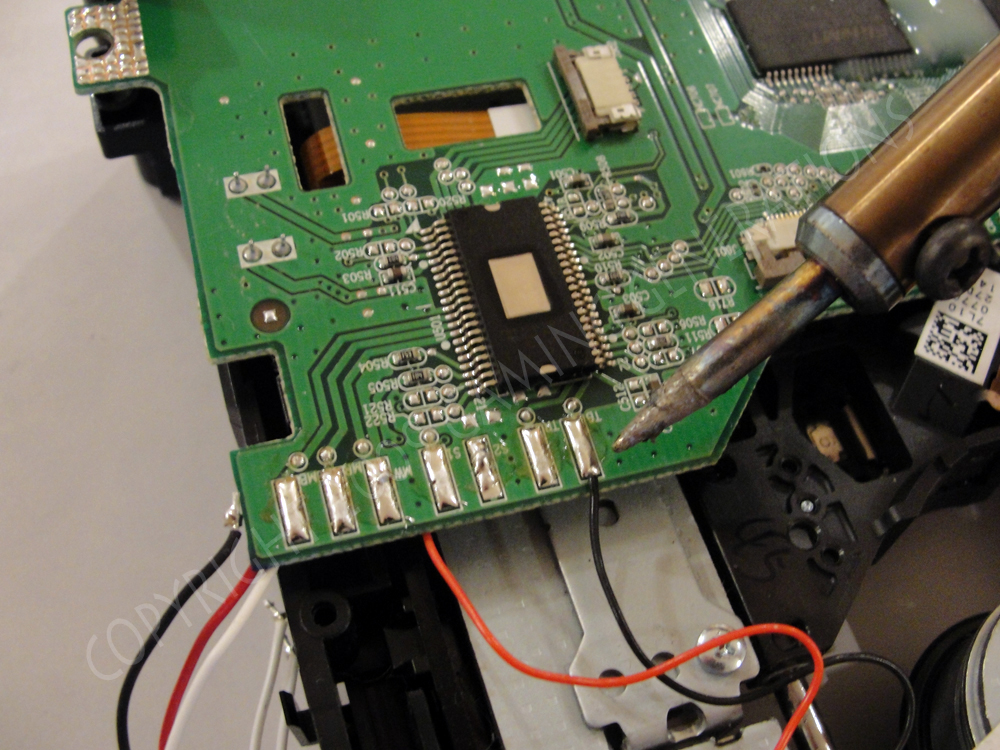

26) Using your soldering iron, carefully remove the 9 wires.
View Original

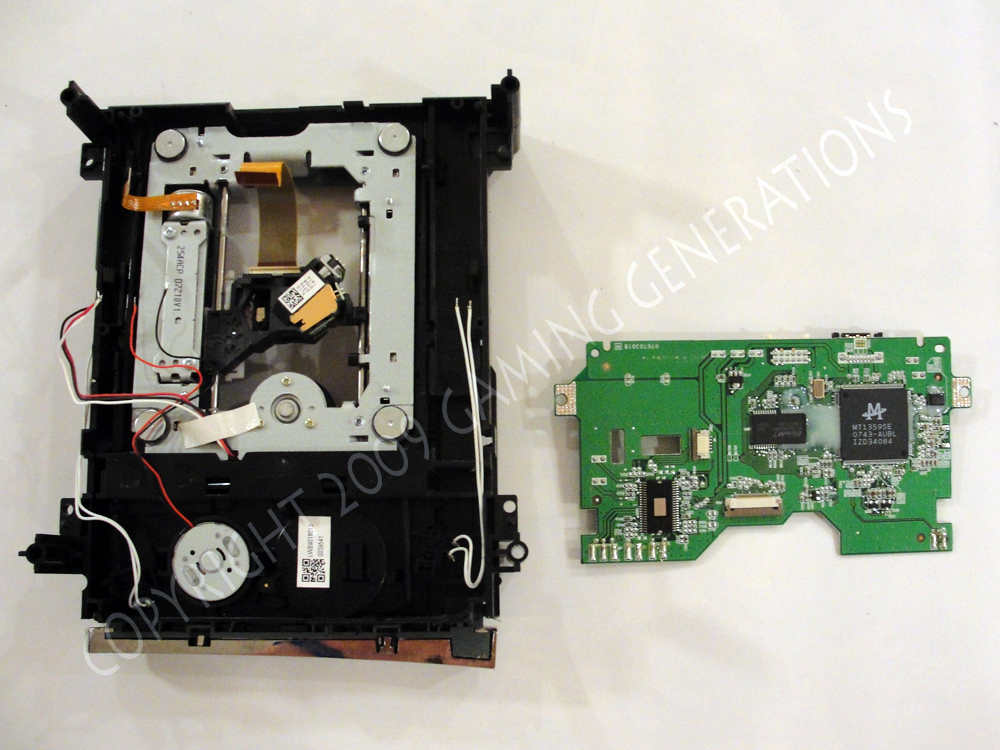

27) Pull up the board and remove the ribbon cable from the sticky adhesive underneath. Now unplug this ribbon cable from the drive's board and completely remove the board.
View Original
28) Now on to the most important part. You need to transfer the board that was in your old drive and swap it in the new drive you are going to install in your system. If you do not do this step your Xbox 360 will not be able to read games..
View Original

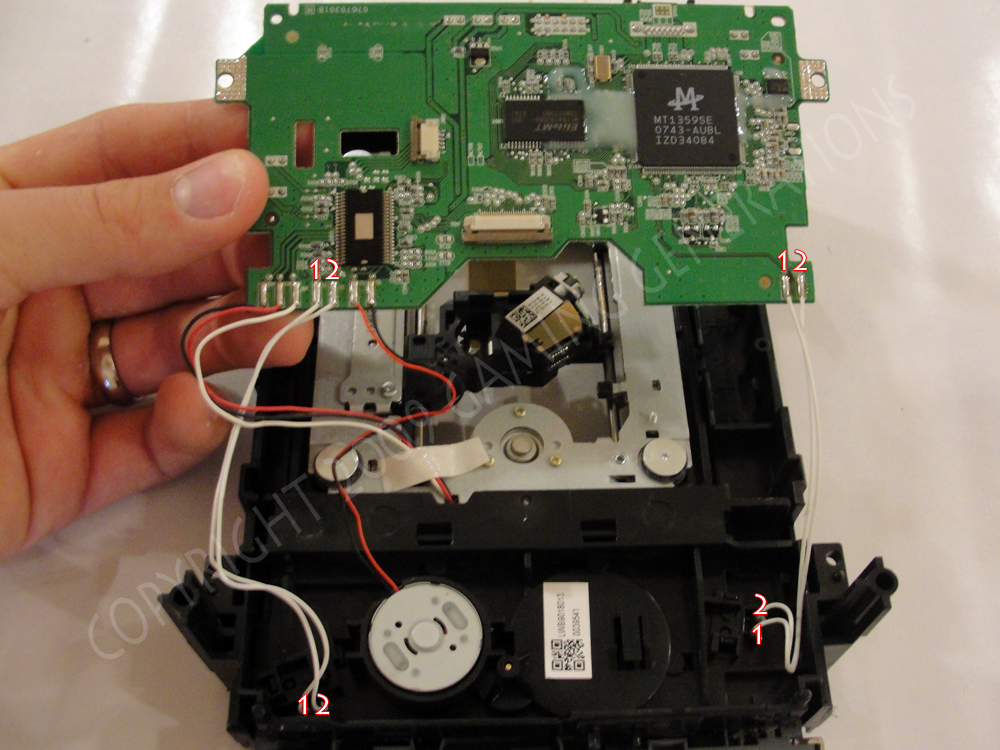

29) Put the board back in and connect the two ribbon cables. Solder back on the 9 wires. Look at the below picture to see exactly what wire goes where. I mapped the white wires for you labeled "1" & "2".
View Original
30) Set your drive back in your system and plug the two cables back in. What I normally do now is test the system to make sure the drive works. Plug back in your system and make sure everything is golden before putting it back together.
View Original
31) The new drive you put in will most likely not have a drive bezel. Simply snap off the bezel on your old drive and insert it back on your new drive.
View Original
32) Put the top cover back on. If you took off your eject button make sure to put it back on. Note this picture was taken from XCM's guide. Now flip over your Xbox 360.
View Original
33) Put the 6 torx screws back in.
View Original
34) Put the bottom cover back on. Make sure the tabs are all snapped together correctly and that the front buckles are latched back together properly.
View Original
35) Put the hard drive heat panel back on.
View Original
36) Put the opposite side heat panel back on.
View Original
37) Snap on the front faceplate.
View Original
38) Snap your hard drive back in (if you have one).
View Original
39) Your new drive is now installed!
View Original |
|
|
